15.16 DOUBLE MUTING ARMS
MODEL
DESCRIPTION
CODE
SG-L-ARMS V2
Active/Passive arms L couple V2
95ASE1861
SG-T-ARMS V2
Active/Passive arms T couple V2
95ASE1871

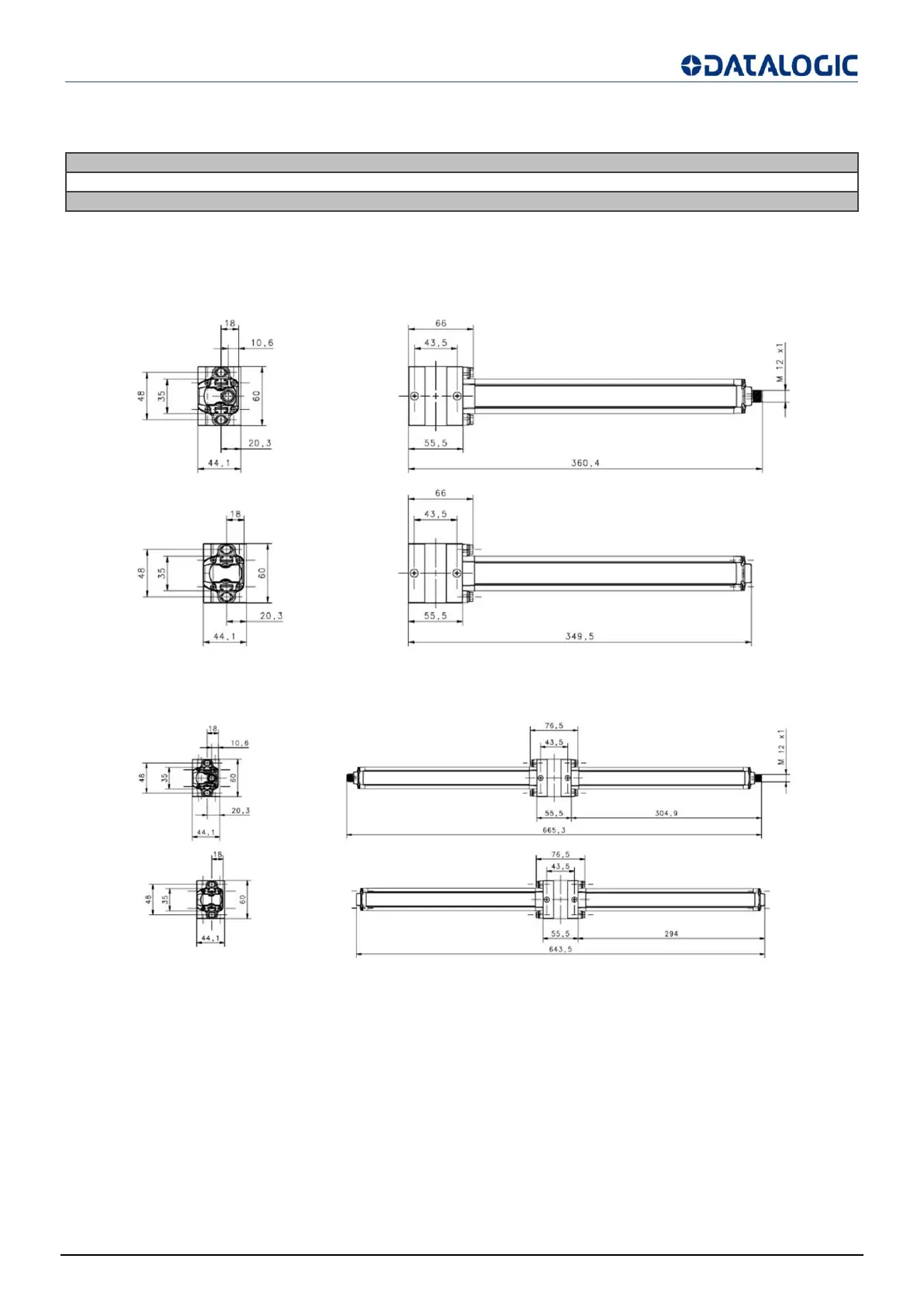

The following figures show, respectively, the dimensions of single active arms with fixing bracket mounted, of single
passive arms with fixing bracket mounted, of double active arms with fixing bracket mounted, of double passive
arms with fixing bracket mounted.
ACTIVE/PASSIVE ARMS L
Fig 111 - Active/Passive arms L
ACTIVE/PASSIVE ARMS T
Fig 112 - Active/Passive arms T
