7.2 TEST
The TEST function can be activated by pressing the 24VDC normally-open push-button connected to TX unit TEST
input (pin 2 of M12-5 poles) for at least 0.5 seconds.
The TEST disables the emission stage, so the RX side sees interrupted all beams and the OSSD goes low within
response time.

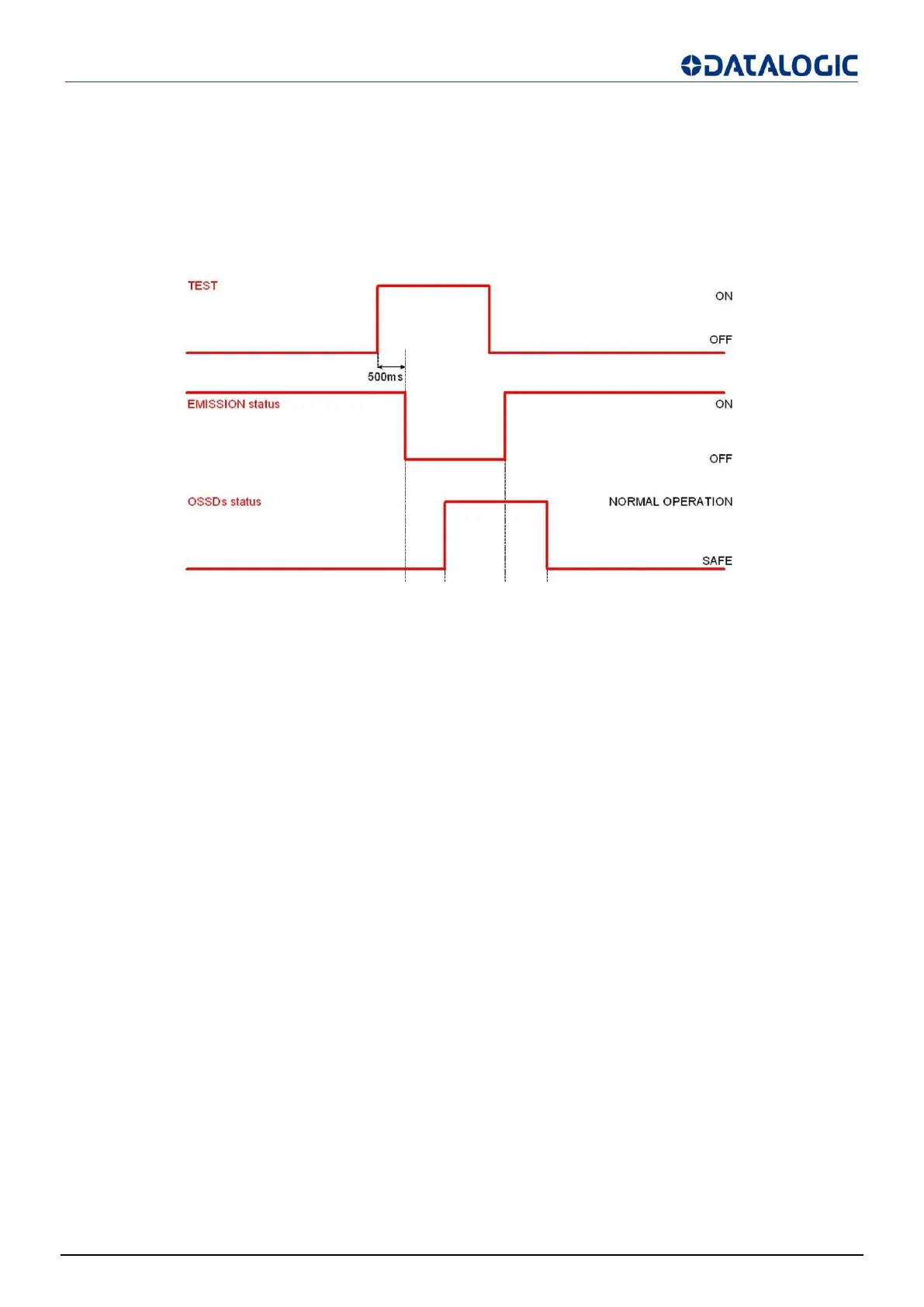

As shown in the timing diagram below, the OSSDs go OFF (BREAK status) after 500msec (plus a cycle time) and
after the response time of the light curtain.
