Datalogic SG2 BASE Series - 7.7.6 Partial Muting

SG2 MUTING
50/96
7.7.6 Partial Muting
It’s possible to configure the type of muting: total or partial.
Partial muting can be useful in those applications in which the user wants to limit the muting function effects to
selected zones only.
Hereafter the table that resumes the configuration in case of partial muting is presented.

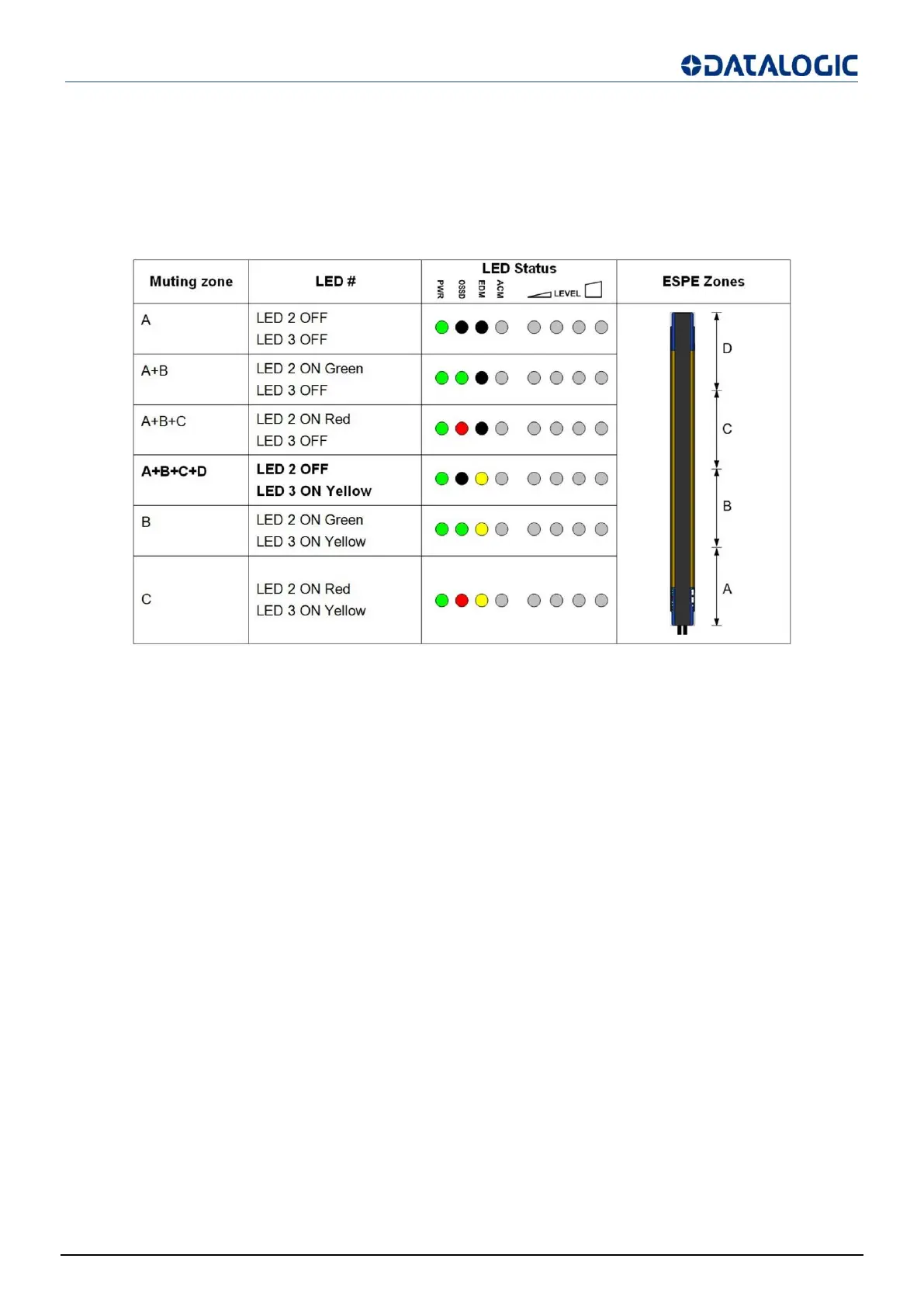

Fig 65 - Partial Muting Selection
