Datalogic SG2 BASE Series - 15.9 PIGTAIL CABLES

SG2 MUTING
76/96

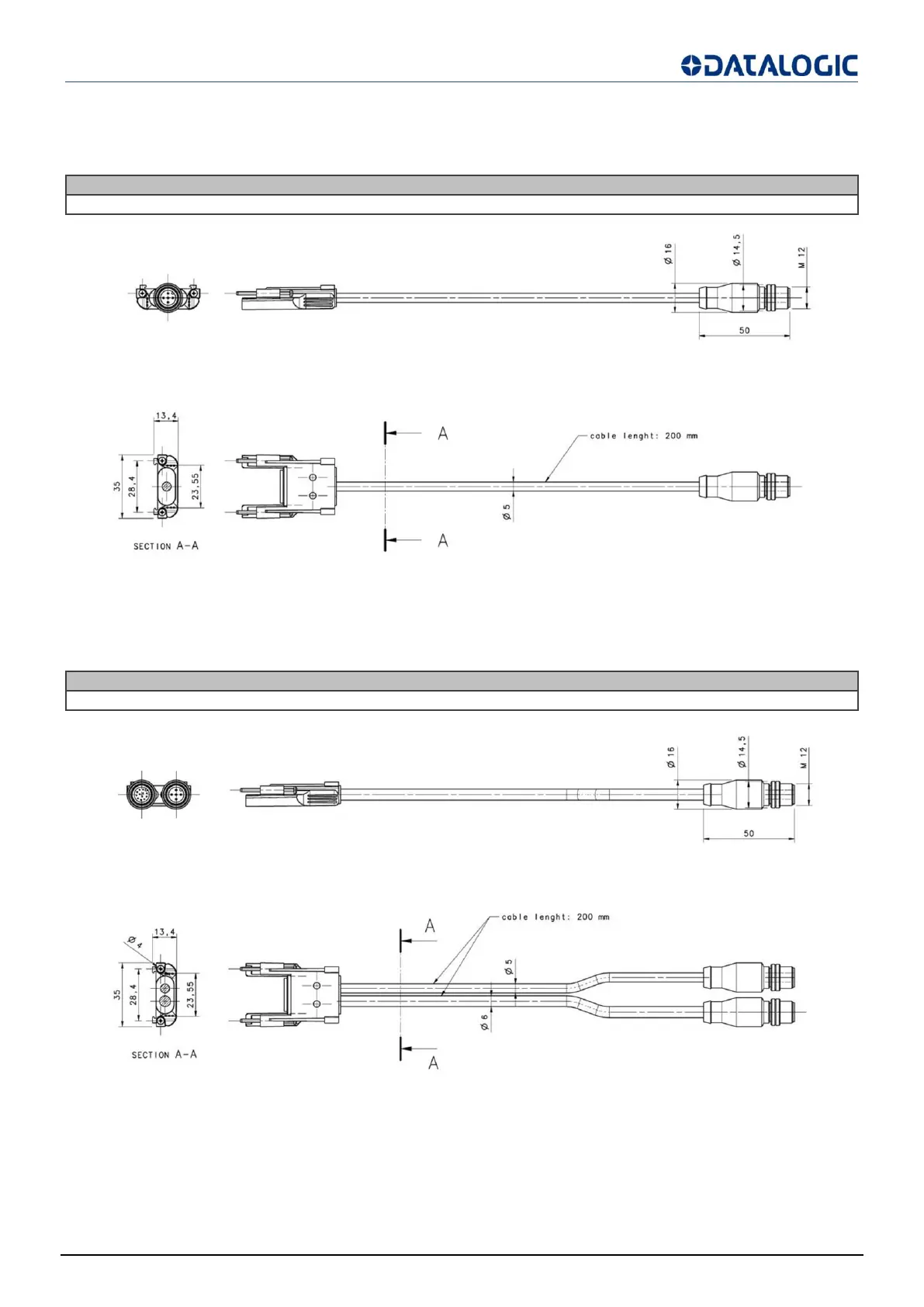

15.9 PIGTAIL CABLES
TX - PIGTAIL CABLE
MODEL
DESCRIPTION
CODE
CS-G1-50-B-002
SG EXTENDED TX 0.2m
95A252820
Fig 98 - TX - Pigtail cable
This is the Pig-Tail cable that must be always used for TX UNIT SG4 EXTENDED.
It has a 18 poles socket in one side and a M12 5 poles in the other.
RX MUTING - PIGTAIL CABLE
MODEL
DESCRIPTION
CODE
CS-R1-75-B-002
SG EXTENDED RX MUTING 0.2m
95A252810
Fig 99 - RX MUTING - Pigtail cable
Presenta un connettore da 18 poli su un lato ed un M12 a 5 poli più un M12 a 12 poli sull’altro.
This is the Pig-Tail cable that must be always used for RX UNIT SG4 EXTENDED when you configure it in
MUTING MODE and DON’T USE SG4-DONGLE. It has a 18 poles socket in one side and a M12 5 poles plus M12
12 poles in the other.
