Datalogic SG2 BASE Series - 14.1 Terminator cap (CVL-5196); 14.2 Tool for BCM configuration

SG2 MUTING
64/96

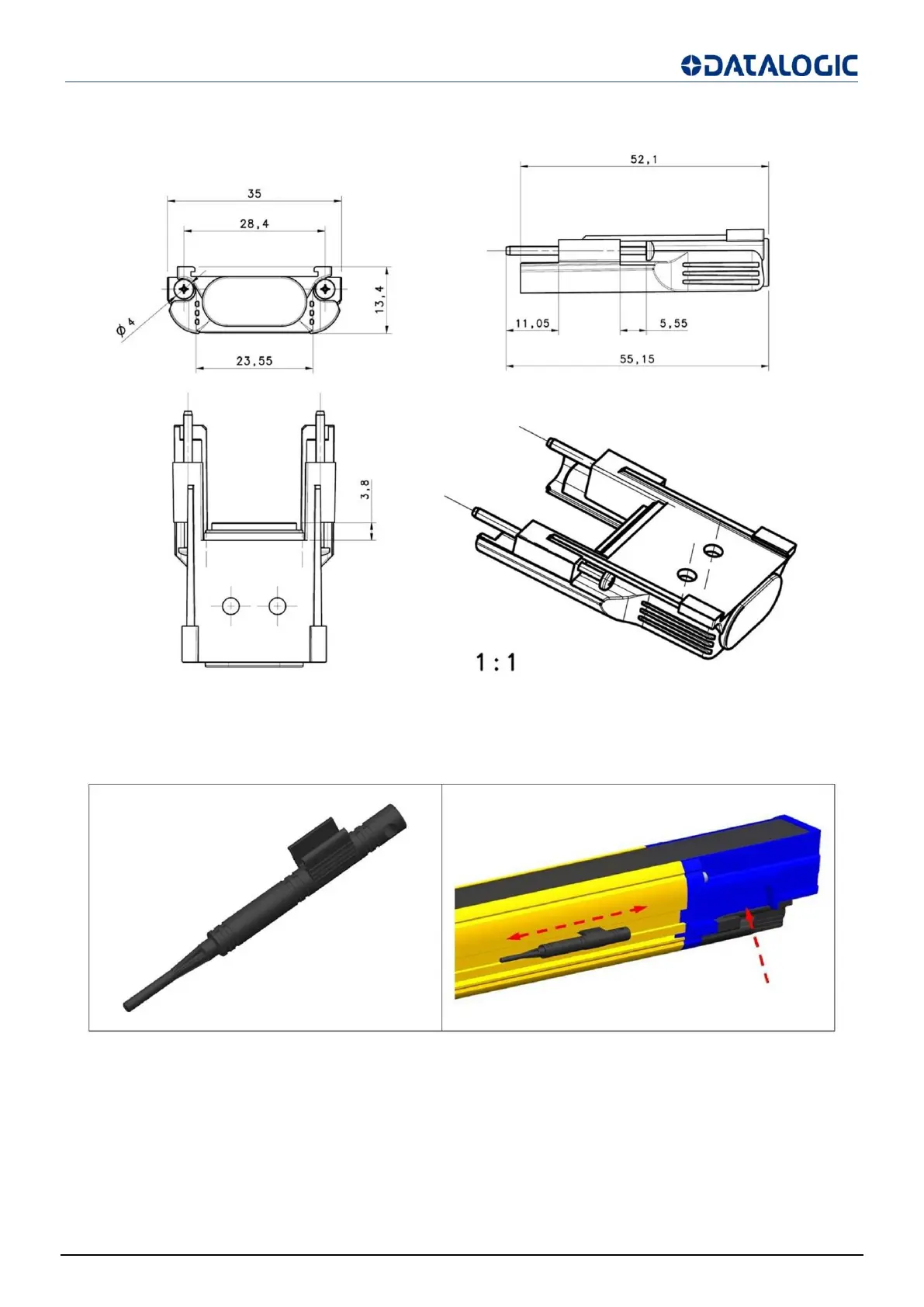

14.1 TERMINATOR CAP (CVL-5196)
Fig 77 - Dimensions (mm)
14.2 TOOL FOR BCM CONFIGURATION
Fig 78 - Tool for BCM configuration
The tool for BCM configuration, when not used, can be inserted in the profile groove by making it enter from the top
of the light curtain.
