7.8.2 Override timeout
Override status timeout is 120s: if Override conditions remain active and both Override contacts remain closed (this
condition only in Level Trigger Mode) more than 120s, the Override goes low in any case after a maximum of 120s.

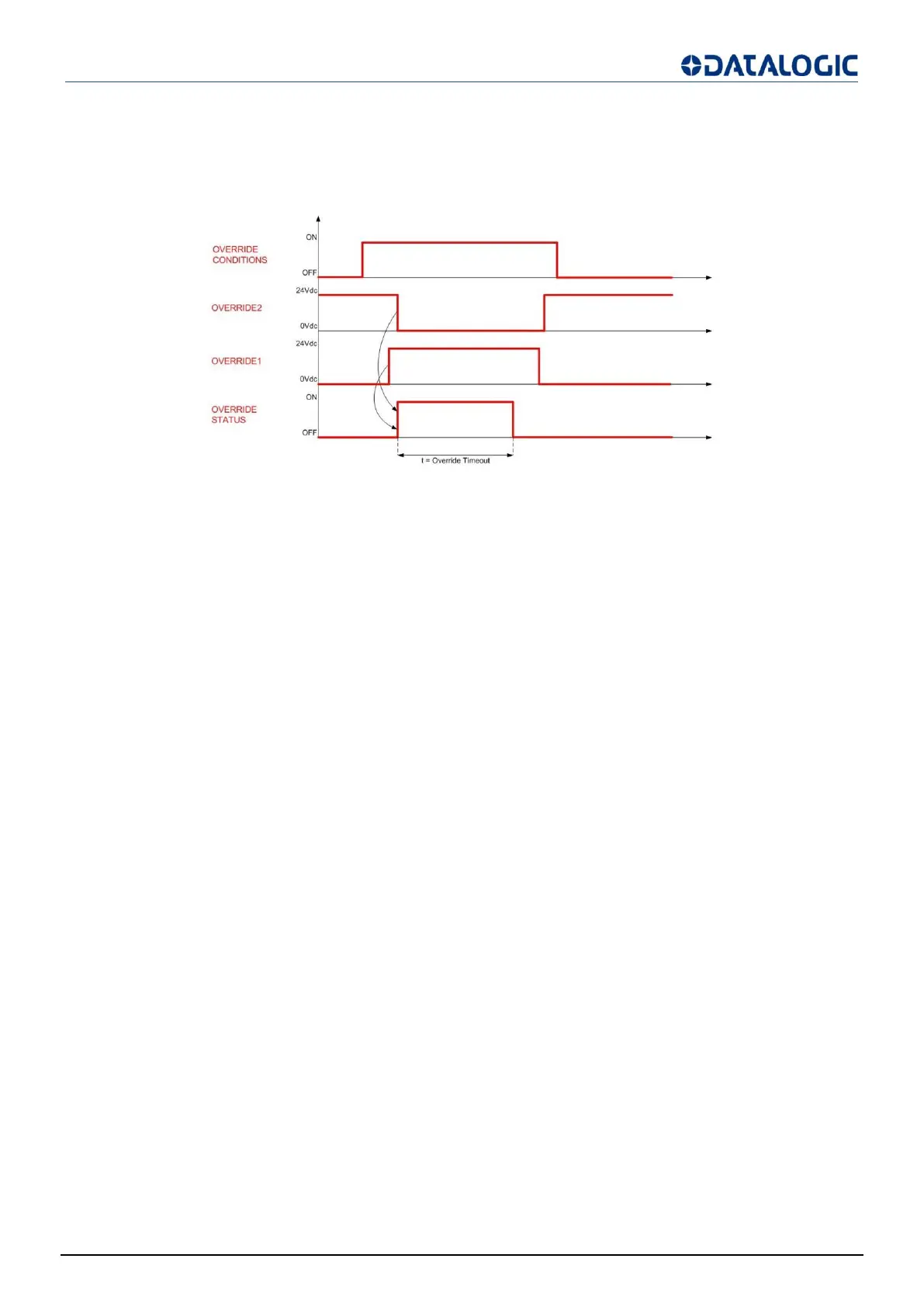

Fig 71 - Override timeout timings
