The sensor named A is the farthest from the light curtain, so its beam is intercepted first. Making reference to the
next figure, since the pack goes from right to left only, B sensor can’t be intercepted first; if this happens the device
doesn’t enter Muting function.
“V” indicates a constant speed. As a consequence, “d1” is fixed according to the following formula:
d1[cm] = V[m/s] * T12[s] * 100

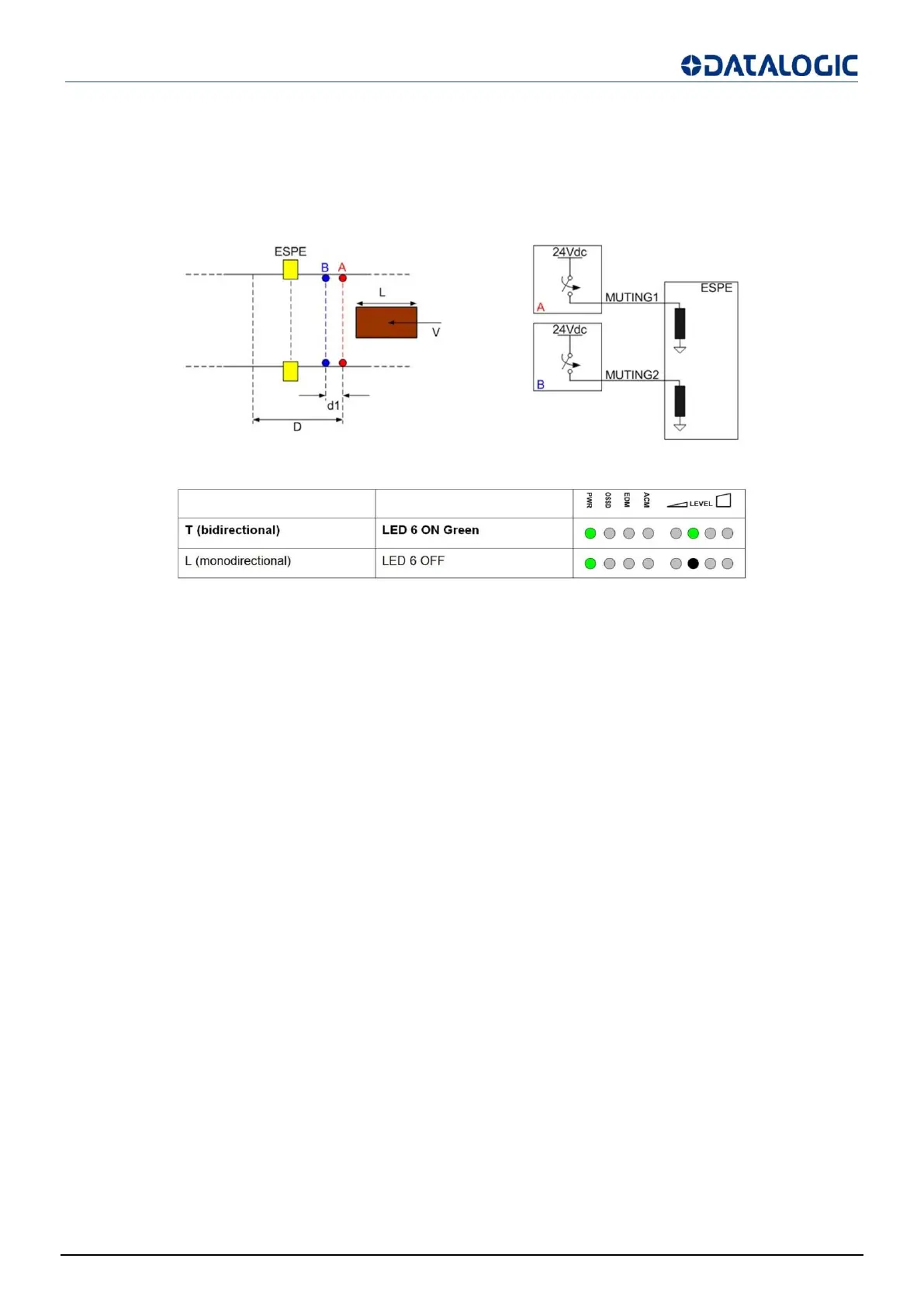

Fig 61 - Muting L connection
Fig 62 - Muting Direction
