SG2 MUTING
7/96
GENERAL VIEW

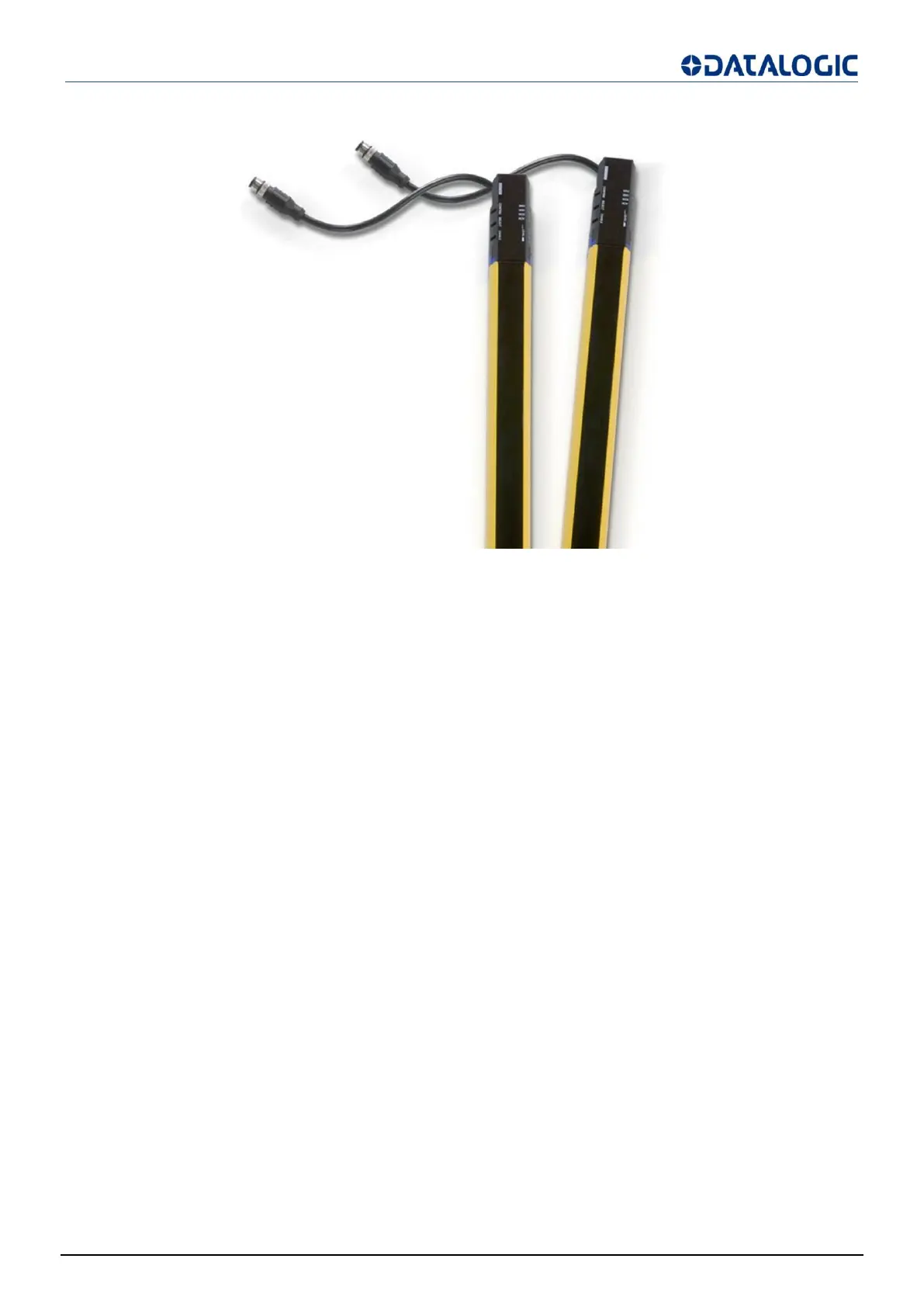

Fig 1 - Safety light curtain
LED description
The microprocessor guarantees the check and the management of the beams that are sent and received through
the units: the microprocessor – through some LEDs – informs the operator about the general conditions of the
safety light curtain, both for settings and for diagnostics (see cfr.USER INTERFACE AND DIAGNOSTICS page
54).
