Datalogic SG4-30-015-OO-E User Manual

SG4 BASE
27/74
Anti-vibration shock absorbers together with fixing brackets are recommended in applications with particularly
strong vibrations to reduce the impact of the vibrations.

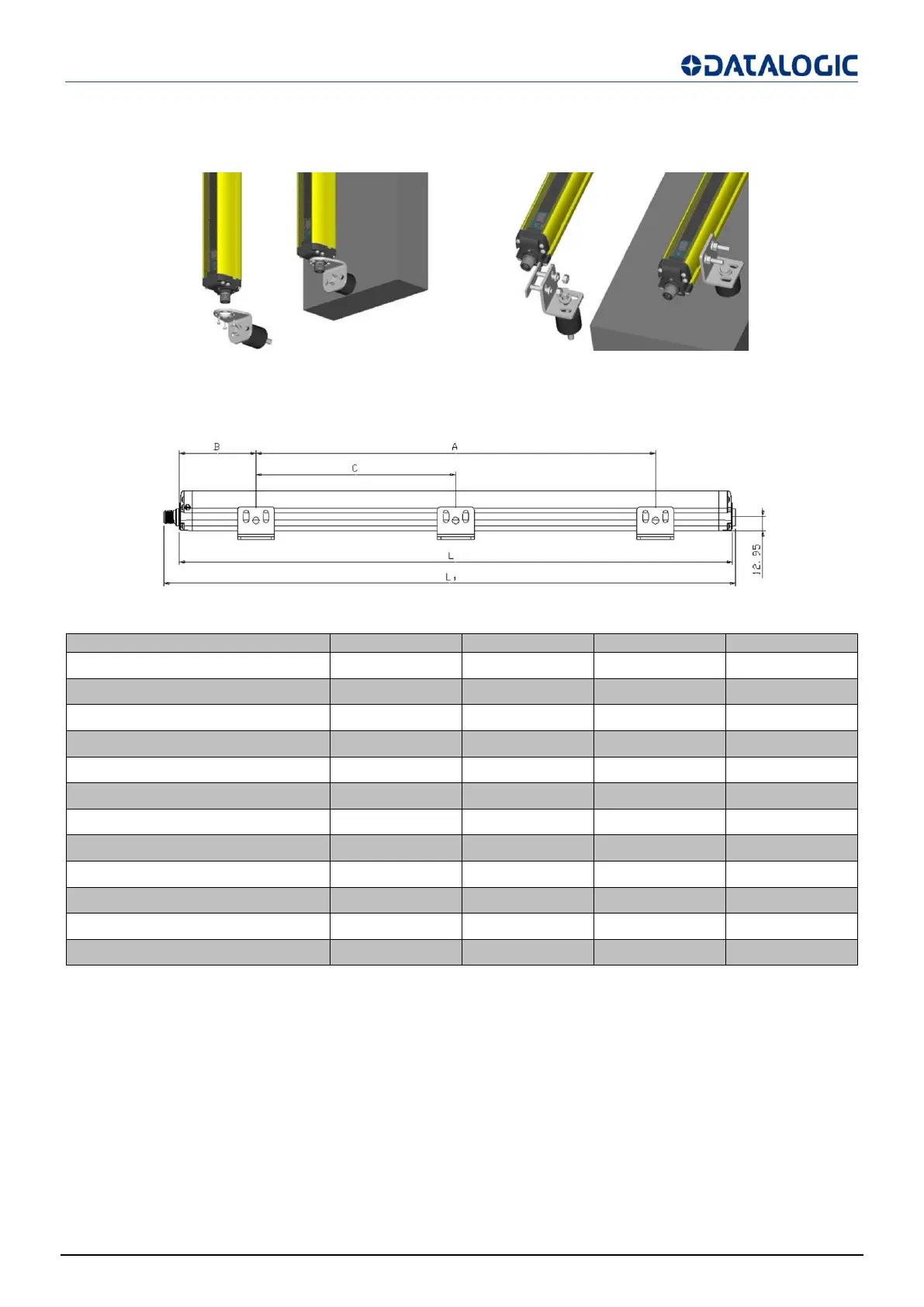

Fig 23 - Fixing brackets
Fig 23 - page 27 and table below show the recommended mounting positions according to the safety light curtain
length.
Fig 24 - Dimensions (mm)
VERSION
L (mm)
A (mm)
B (mm)
C (mm)
015
216.3
108
54
-
030
366.2
216
75
-
045
516.3
316
100
-
060
666.2
366
150
-
075
816.3
466
175
-
090
966.2
566
200
-
105
1116.2
666
225
-
120
1266.3
966
150
483
135
1416.2
1066
175
533
150
1566.3
1166
200
583
165
1716.3
1266
225
633
180
1866.3
1366
250
683
