4 Chapter 2 – Printer Setup

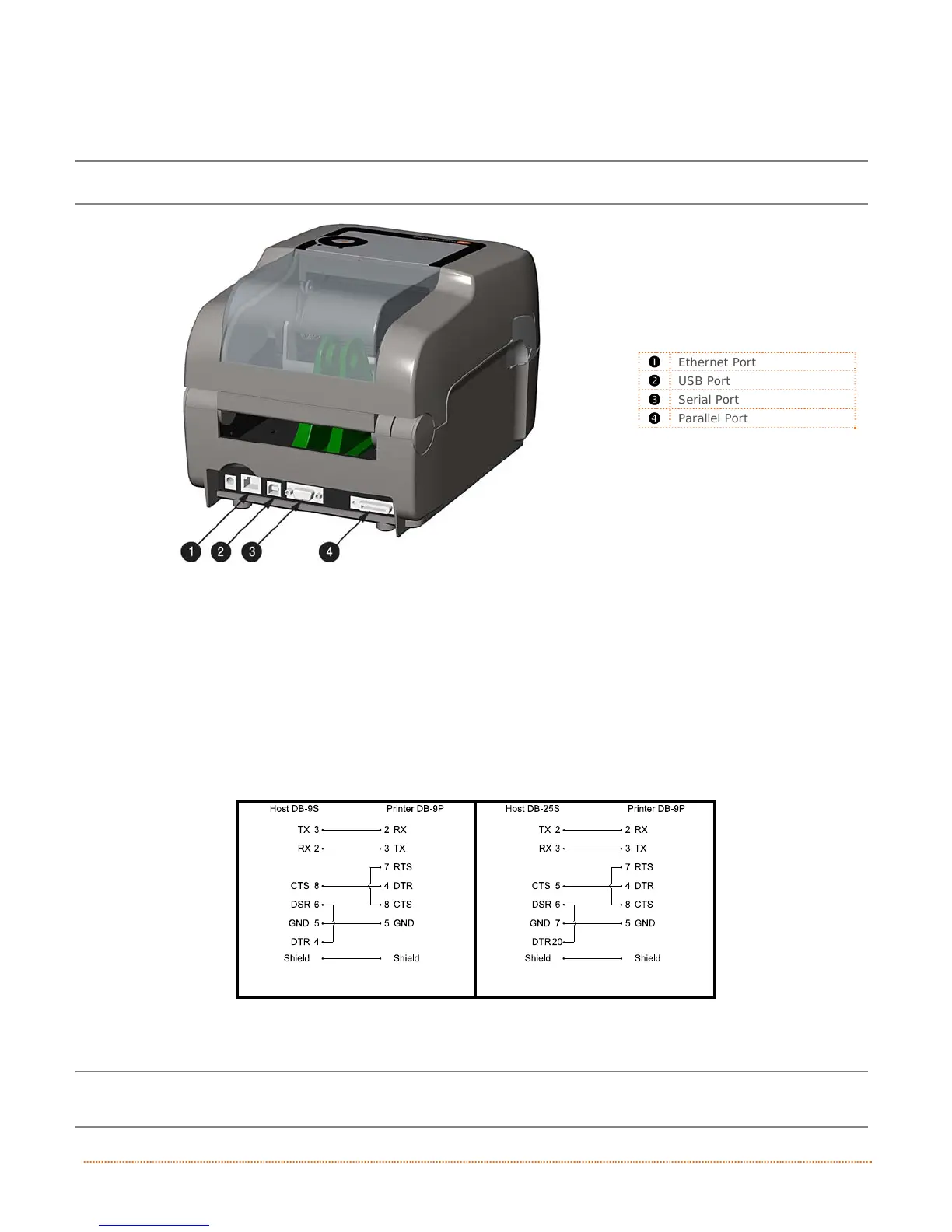

2.2.2 Interface Connections
The printer can be connected to the host system via the parallel, serial, Ethernet or USB ports.

Before connecting interface cables to the printer, ensure that the Power Switch is in the OFF (O) position.
312

Ethernet Port

USB Port

Serial Port

Parallel Port
Cable Requirements
Choose the correct cable when interfacing the printer to the host:
 The Parallel Port (optional) supports parallel communications via a 36-pin male mini-Centronics
connector. Bi-directional communications (forward and reverse channels) is supported when an
IEEE 1284 compliant cable and supporting host software is used.
 The Ethernet Port (optional) supports Wired LAN communications (see Appendix B for
information).
 The Serial Port supports RS-232C communications via a DB-9 connector with specific pin-outs
(interface cable part numbers and pin-outs are given below; contact your reseller to order). Serial
port settings are menu-selectable and must match the host settings.
Part # 32-2483-01 Part # 32-2301-01
 The USB Port supports high-speed serial communications and requires a standard USB interface
cable.

The printer automatically establishes communications with the first port through which valid data is
received. Afterward, a timeout period must be exceeded (or power must be cycled OFF and ON) to change
the established communications port.
