Chapter 2 – Printer Setup 9
2.3.3 Loading Media with the Peel and Present Option
Load media for peeling (if the printer is equipped with the option) as follows:
When using the Peel Mechanism do not exceed a print speed of 4 IPS.
To utilize “Tear mode” with Peel and Present Option installed; move the Peeler Door to its open position.
1) Load media as described in Section 2.3, (steps 1-3).
2) Remove about 8 inches (200mm) of labels from the Media Backing.

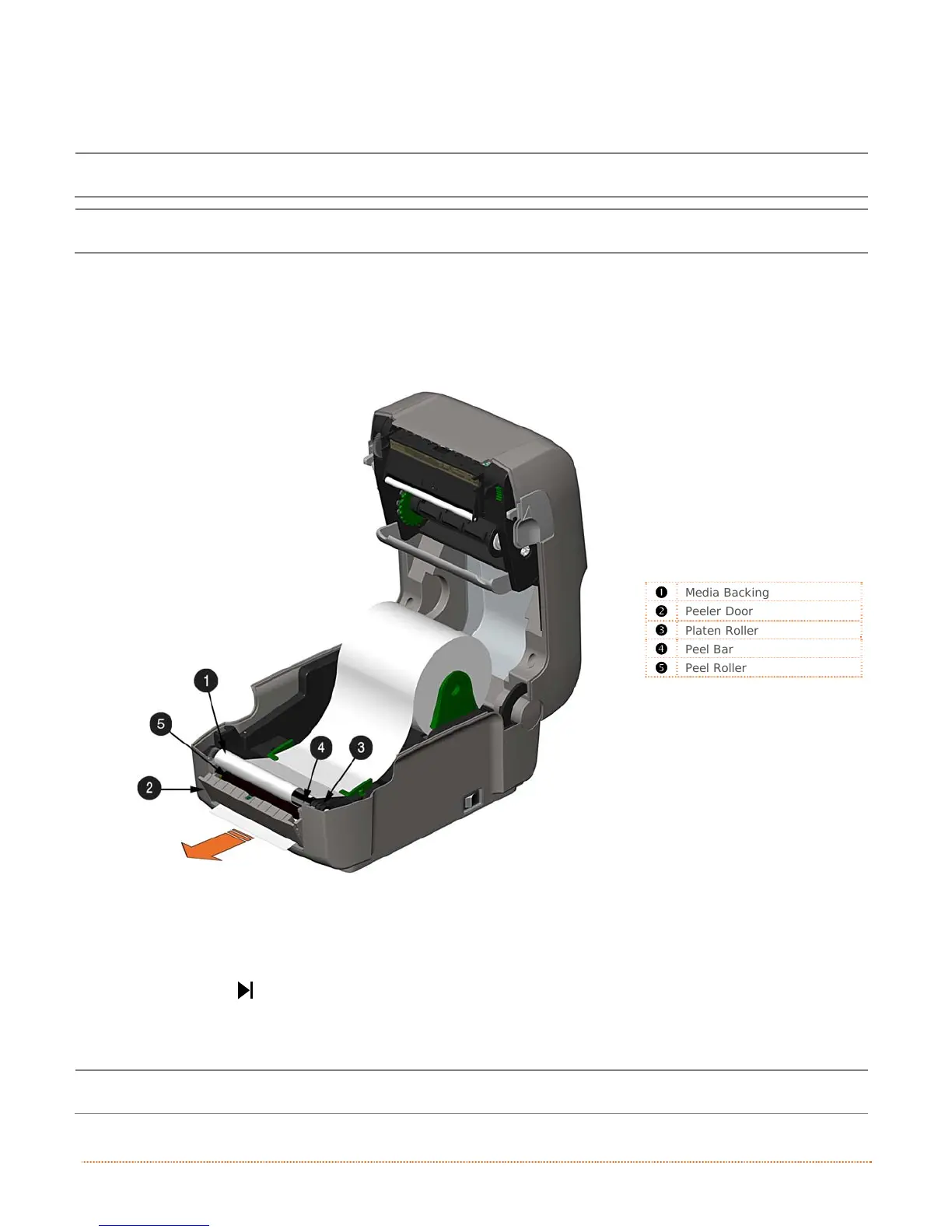

3) Open the Peeler Door. Route the Media Backing over the Platen Roller and Peel Bar, and then
behind the Peel Roller and Peeler Door, as shown below.
312
Media Backing
Peeler Door
Platen Roller
Peel Bar
Peel Roller
4) Close the Peeler Door.
5) If using Thermal Transfer media (ribbon) proceed to Section 2.4 Loading Ribbon. Otherwise close
the printer’s Cover and press downward until latched.
6) Press the
button several times to advance the media (if the Fault Light is on, see Section 3.7.)
7) The printer will now peel each label and present it to the operator for removal. The indicator light
will flash orange and the next label will not feed/print until the previous label is removed.
The printer is factory set to use gap media. If using another media type (for example, continuous
media), printer setup must be reconfigured; see Section 3.4
.
