Datamax E-Class Mark III User Manual

Chapter 2 – Printer Setup 7

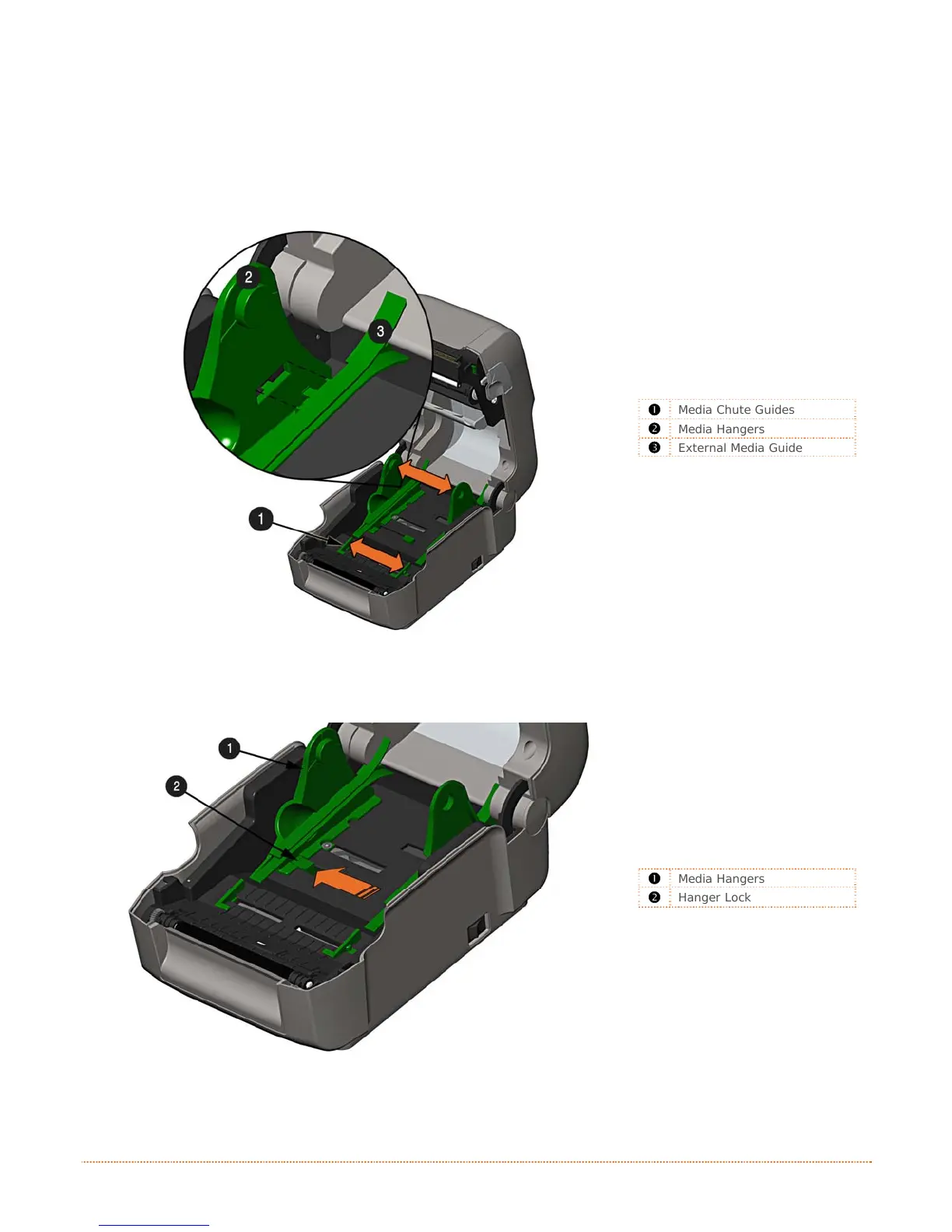

2.3.2 Loading External or Fan-Fold Media
Load media as follows:
1) Slide the Media Guides outward.
2) Slide the Media Hangers outward and install the two Media Chute Guides into the Media Hangers.

Media Chute Guides

Media Hangers

External Media Guide
3) Position the Media Hangers to match the width of the media being used. Slide the Hanger Lock
against the Media Hanger to hold this position.

Media Hangers

Hanger Lock

Datamax E-Class Mark III Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi (8 dots/mm)
Print Speed	Up to 6 ips
Max Print Width	4.25 inches
Media Sensor	Reflective and Transmissive
Interfaces	USB, Serial
Media Types	Labels, Tags, Wristbands
Media Width	0.75 in to 4.65 in
Media Thickness	0.0025 in to 0.0100 in
