140 H-Class

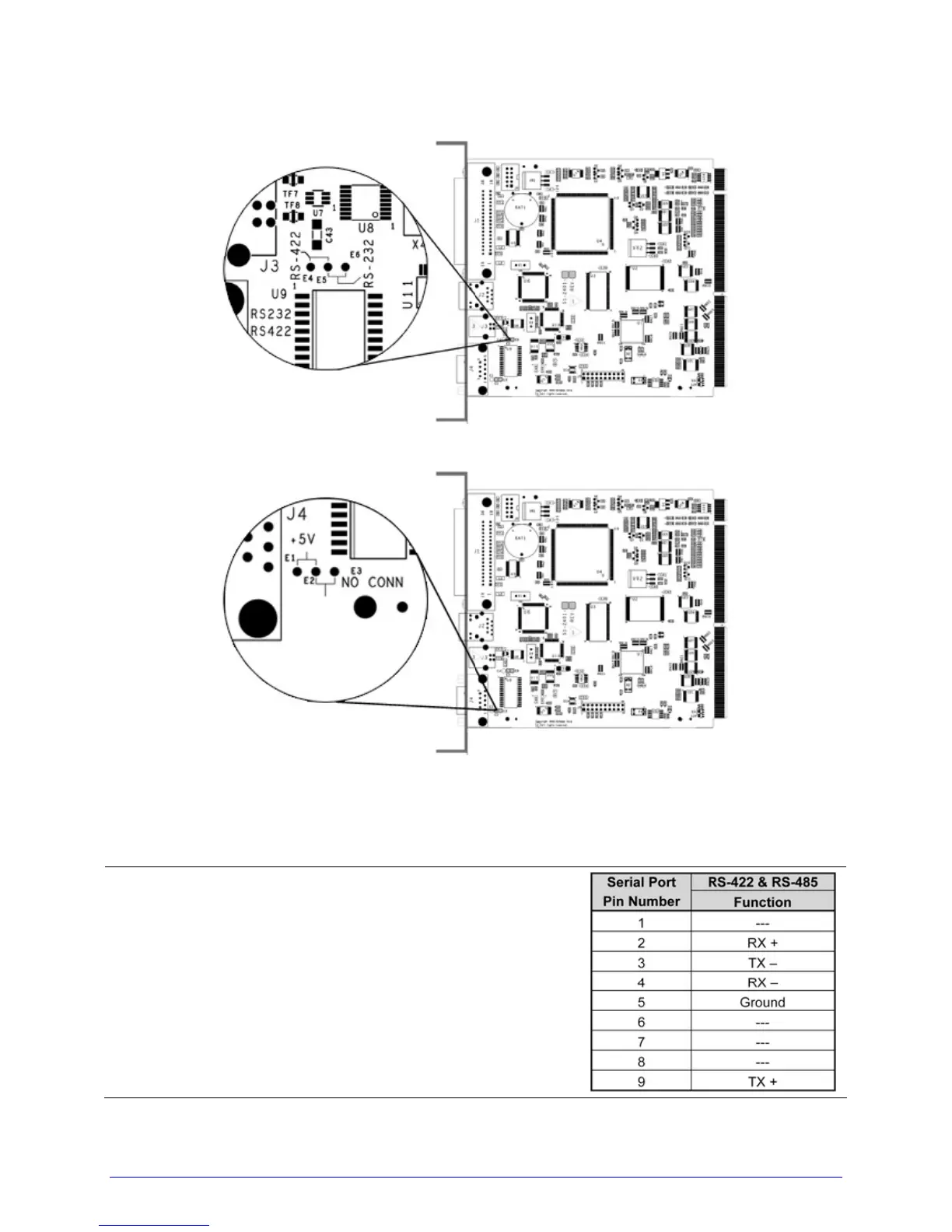

Communication Jumper locations:
+5 Volts Jumper location:
5. Slide the Main Board into the printer and secure it with the two previously removed
Screws.
6. Connect communication cables to the Main Board and plug in the power cord.
;
For RS-422/485 communications, ensure that
your cable meets the requirements for proper
data transfer (per the table, right).
