H-Class 27

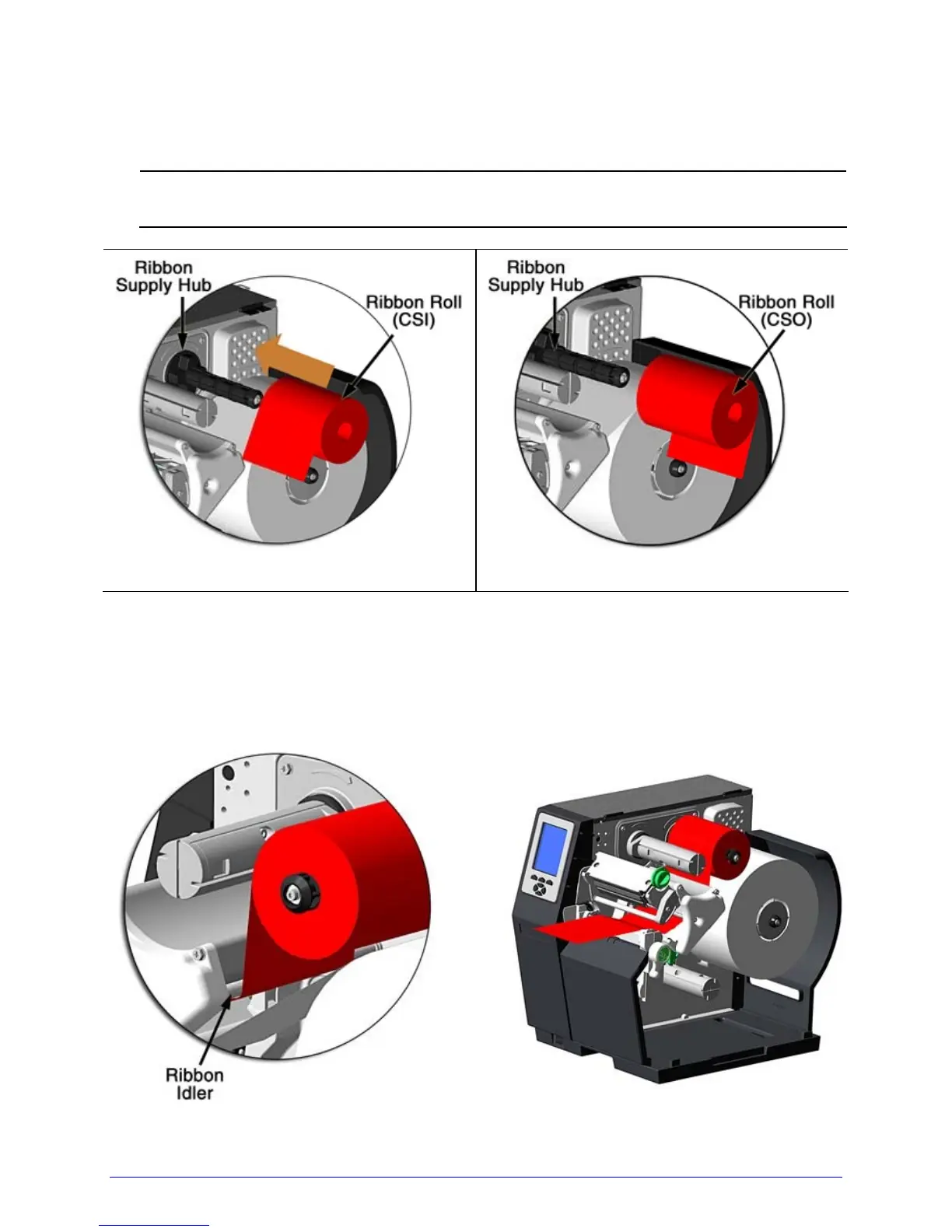

B. In the direction appropriate for the ribbon type being installed (Coated Side In or Coated
Side Out), slide a Ribbon Roll completely onto the Ribbon Supply Hub, as shown below.
;
The coated (inked) side of the ribbon must face the media.
Coated Side In (CSI) Ribbon Coated Side Out (CSO) Ribbon
C. Route the ribbon under the Ribbon Idler then out the front of the printer.
