Datamax M-Class Mark II M-4206 User Manual

58 M-4206

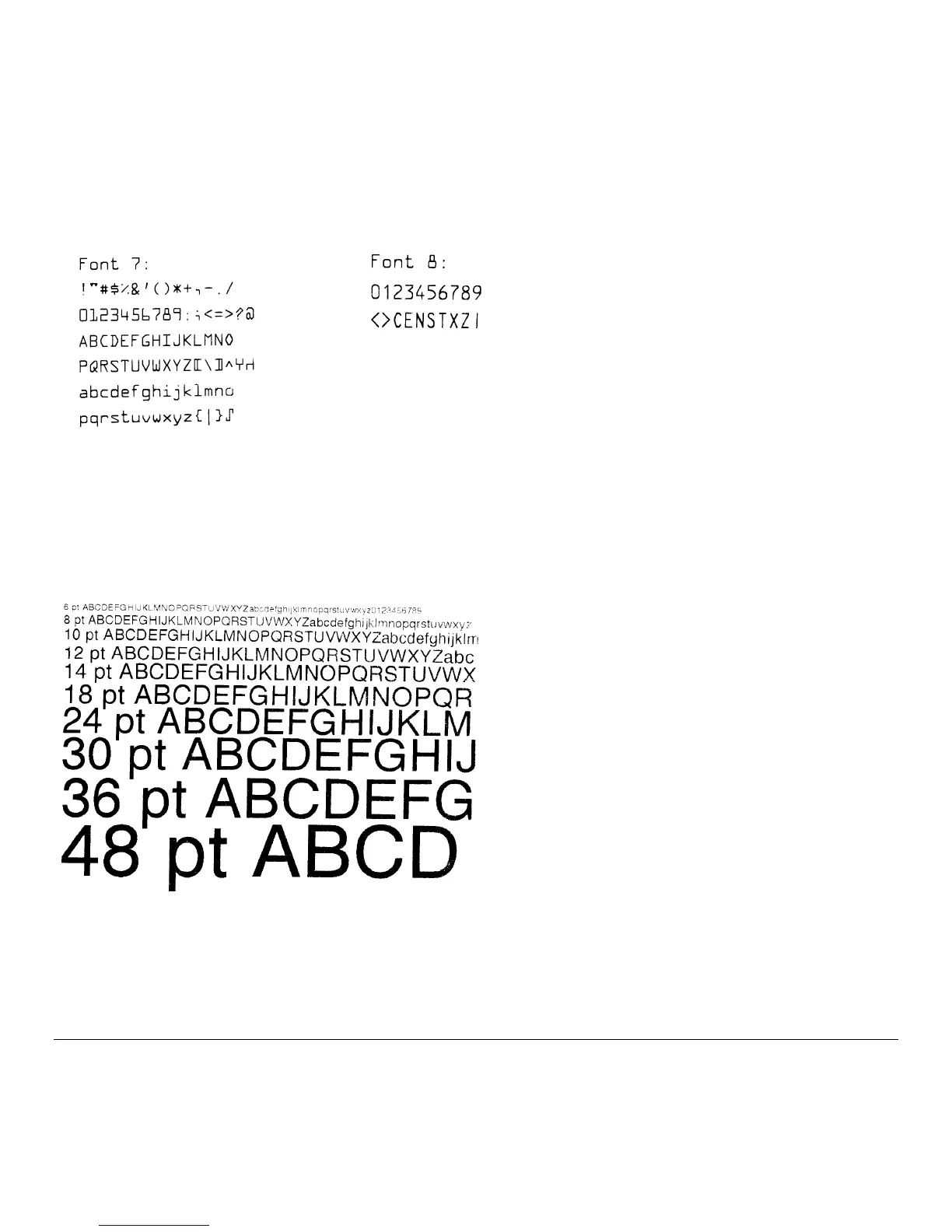

Font 7 OCR-A, size I. Font 8 OCR-B, size III.
Font 9 Internal Triumvirate font.
Point sizes are selected by the number in the barcode height.
Larger point sizes can be obtained by increasing the height and width
multipliers, 48pt and 72pt fonts are generated by doubling the 24pt and 36pt
fonts respectively (see the Programmer's Manual for more information).

Datamax M-Class Mark II M-4206 Specifications

General

Print Resolution	203 dpi
Print Method	Thermal Transfer and Direct Thermal
Max Print Width	4.25 inches
Max Print Speed	6 ips
Memory	8 MB Flash
Interfaces	Serial, Parallel, USB
Media Sensor	Reflective and Transmissive
Media Types	Labels, Tags
Label Roll Diameter	8 inches
Label Thickness	0.0025 to 0.01 inches
Maximum Print Length	99 inches
