Follow the steps below to overlay text on the video:
1. Open the CG settings page.
2. Enable the CG function.
3. In the Text field, enter the overlay text.
4. Enter the X and Y coordinates to set the text position.
5. Click the Apply button to save the new settings.
Note: Increasing the X coordinate moves the overlay text to the right and decreasing the X
coordinate moves the overlay text to the left; increasing the Y coordinate moves the overlay text up
and decreasing the Y coordinate moves the overlay text down.
6.4 Stream and Record Buttons
Before you start reading this section, first check the streaming button row located to the right of the
SD card slot. If your HS-1600T is a four button model, feel free to skip the two button section.
Two Button Model

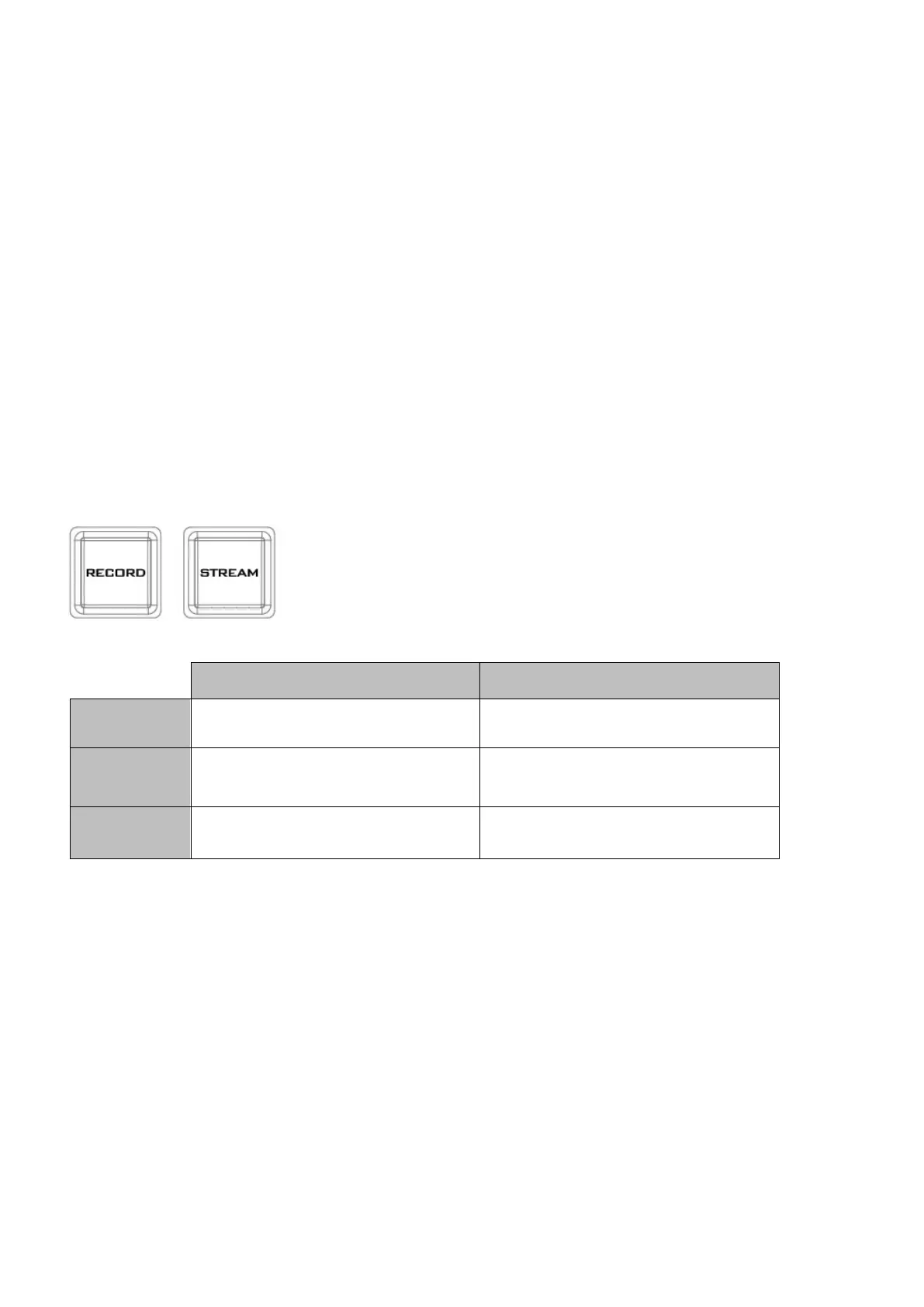

The RECORD and STREAM buttons on the front panel of the HS-1600T
give the user certain controls of the record and stream functions. In this
section, we will cover operations of these two buttons in detail. Button
LED behaviors and their corresponding states are listed in the table
below:
RECORD Button
STREAM Button
Solid White
Record function in idle state
Stream function in idle state
Blinking Red
Record function is activating or
resetting
Stream function is activating or
resetting
Solid Red
Record function activated
Stream function activated
Record Button
Press the RECORD button to start/stop recording.
Start recording
 When idle, the RECORD button is solid white.
 Press and hold the RECORD button for approximately 2 seconds.
 When the record function is activating, the RECORD button turns from solid white, then
blinking red and finally to solid red.
 When the RECORD button is solid red, this indicates that the record function has been
successfully activated.
Note: The RECORD button is disabled in the Stream Only mode.
