Datavideo HS-1600T User Manual

10
Chapter 2 Connections and Controls

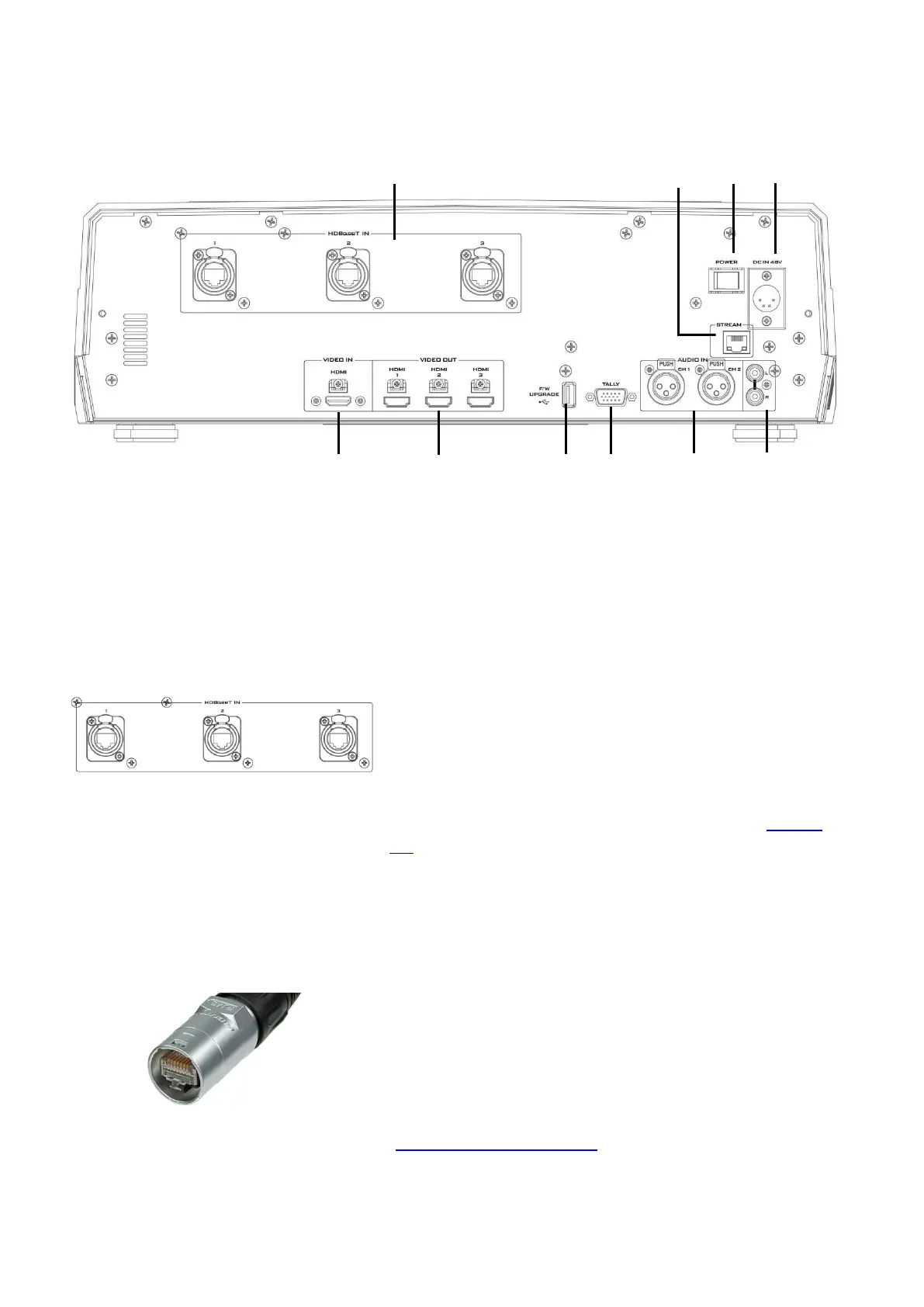

2.1 Rear Panel
1
HDBaseT Port x 3
6
MIC IN – CH1/CH2
2
HDMI Video IN
7
Audio Input – Stereo RCA (Left/Right)
3
HDMI Video OUT x 3
8
DC IN
4
USB F/W Upgrade Port
9
Power Switch
5
TALLY Output Port
10
Stream Port
1. HDBaseT IN
The HDBaseT ports connect three HDBaseT cameras via
three CAT-6 Ethernet cables. Please note that the baud rate
is 38400 and cannot be changed by the user. Hence, in
order to establish connection with the camera, you will
need to set the camera’s baud rate to 38400. See Section
5.2 for setting the baud rate of connected cameras.
If the camera’s baud rate is already pre-set to 38400, the
camera video should appear on the respective Multiview
quadrants as soon as the camera is physically connected to
the HDBaseT port.
Note: The HDBaseT port is designed using Neutrik’s
etherCON A series connector system, which is optimized
for pro audio and video network applications. Prior to
using the HS-1600T, you will need to first acquire the
EtherCON A series connector to make your own Ethernet
cable. Please visit Neutrik’s official home page
(http://www.neutrik.com/) for more information.
1
3
4
5
6
8
9
2
7
10
