Datavideo TPC-700P User Manual
4
of 1
of 1 rating
156 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
29

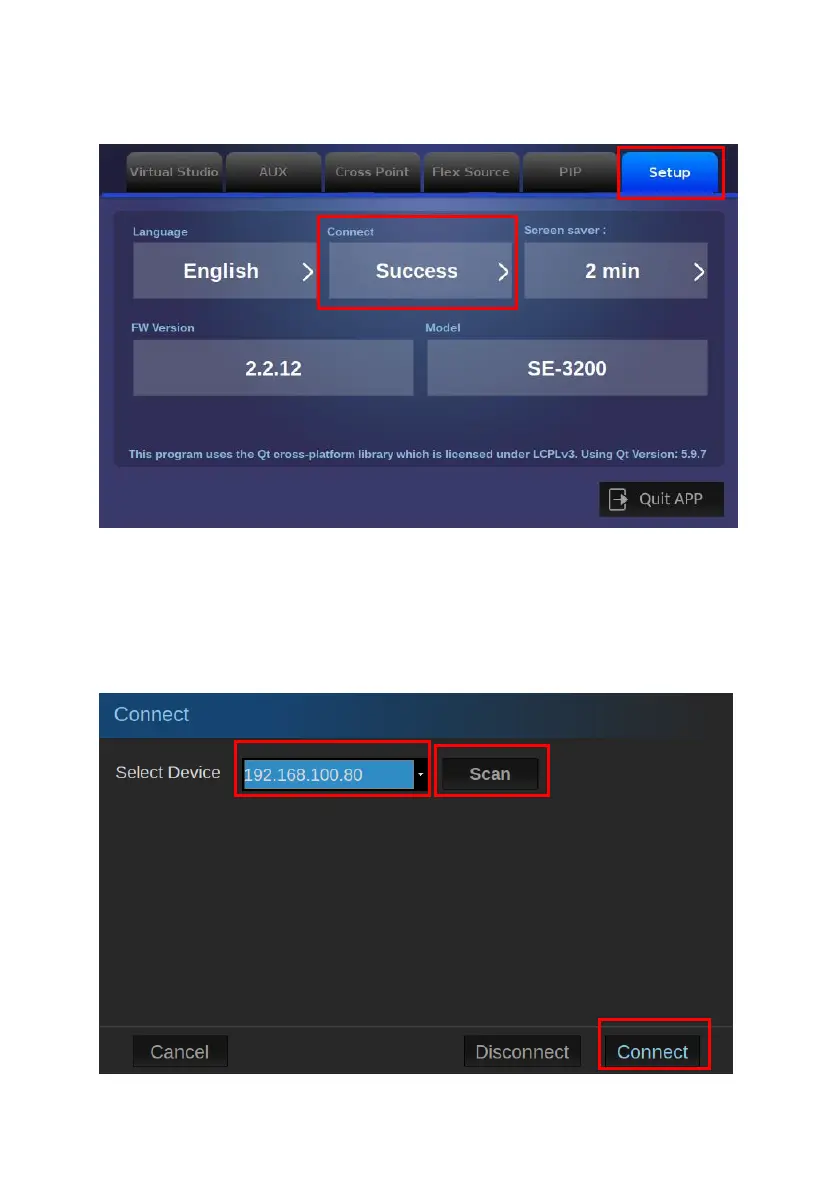

6. After entering the
SE
-
3200 App, please click the “Setu
p” and then click the
“Connect”button
.
7.
Please
press
th
e
“Scan”
button
to
find
the
connected
SE
-
3200
.
A
f
ter
that,
please
s
elect
the
correct
SE-3200
IP
address
from
the
drop
-down
menu
and
then
please
press
the
“Conn
ect”
button
for
conn
e
cting
the
SE
-3200
by
the
TPC-700/TPC-700P.
28
30
Table of Contents
default chapter
2
Table of Contents
2
Warnings and Precautions
6
Standard Warranty
7
Warranty
7
Three Year Warranty
8
Disposal
9
Chapter 1 Introduction
10
Features
10
Chapter 2 System Diagram
11
Chapter 3 Connections
12
Front View
12
Rear View
13
Left View
14
Right View
15
Chapter 4 How to Turn on and Turn off the Power of the TPC-700/TPC-700P
16
Chapter 5 Tpc-700 & Tpc-700P's Settings Option
17
Chapter 6 Basic Setup
24
Connect by Static Ip Address
24
Connect by Dhcp
24
Chapter 7 Network Settings
25
Connect by Static Ip Address
25
Connect by Dhcp
30
Chapter 8 The 8 Pre-Saved Virtual Scenes for the Se-3200 & Tpc- 700/Tpc-700P Combination
33
The Input Interface Settings for the Se-3200 & Tpc-700/Tpc-700P Combination
34
The 8 Pre Saved Virtual Scenes for the Se-3200 and Tpc-700/Tpc-700P Combination
37
Chapter 9. How to Set the Chromakey, Save a Still to Memory, P-In-P and Still Functions
40
Chapter 10 Introduction of the SE-3200 App Interface for the TPC-700/TPC-700P
41
Virtual Scenes
42
How to Recall the Pre - Saved Virtual Scenes by the Tpc-700/Tpc-700P
46
Aux
47
How to Use the "Aux" Function
47
Cross Point
49
How to Use the Cross Point Function
49
Flex Source
52
How to Use the Flex Source Function
53
Pip
55
Setup
57
Chapter 11. Introduction of the Built-In Vgb-2000 App Interface for the Tpc-700/Tpc-700P
61
Main Interface of the TPC-700 App-Single & Dual
61
Operation Steps for the Vgb-2000 App for Tpc-700/Tpc-700P
63
Chapter 12 Interface Introduction of the Tpc-700/Tpc-700P Built-In Dvk-400 App
70
Home
70
Input/Output
72
Chromakey
73
Lumakey
74
Window
76
User Memory
77
Connect
78
Setup
79
Chapter 13 Interface Introduction of the Tpc-700/Tpc-700P Built-In Zr-1 App
85
Connections
85
Main Interface
86
Cams Interface-Home
88
Cams Interface-Home
93
Connection-For 3 Cams & 2 Cams Interfaces
95
Encoding-For 3 Cams & 2 Cams Interfaces
97
Camera-For 3 Cams & 2 Cams Interfaces
107
Switcher-For 3 Cams & 2 Cams Interfaces
109
Audio-For 3 Cams & 2 Cams Interfaces
116
Chapter 14 Interface Introduction of the Tpc-700/Tpc-700P Built-In Tvs-2000A App
118
Home
118
Advance
126
Studio
128
Chapter 15. Software Update (App Manage Sw)
130
Chapter 16. Dimensions
132
Chapter 17. Specifications
133
Appendix
134
Software Update Procedure for Tpc-700 & Tpc-700P
134
Introduction
134
Preparation
134
System Requirements
134
Software Update Preparation
135
System Connection Diagram
136
Checking the Software Version
138
Preparing the Software
142
Update
142
Updating the Software
142
Service and Support
156
