79
12.8
Setup
A
fter relat
ed par
ameters in the DVK-400 PC App are set in advance, the
“Setup” option allows you to set various par
ameters
includ
ing “O
utpu
t
Re
solution”
, “HDMI Output Format”
, “Language”
, “
FW V
ersion”
, “FPGA
V
ers
ion”
,
“Bootloader V
ersion” and “Screen Sav
er
”
. The mai
n int
erface of
the
“Setup” option is shown in t
he f

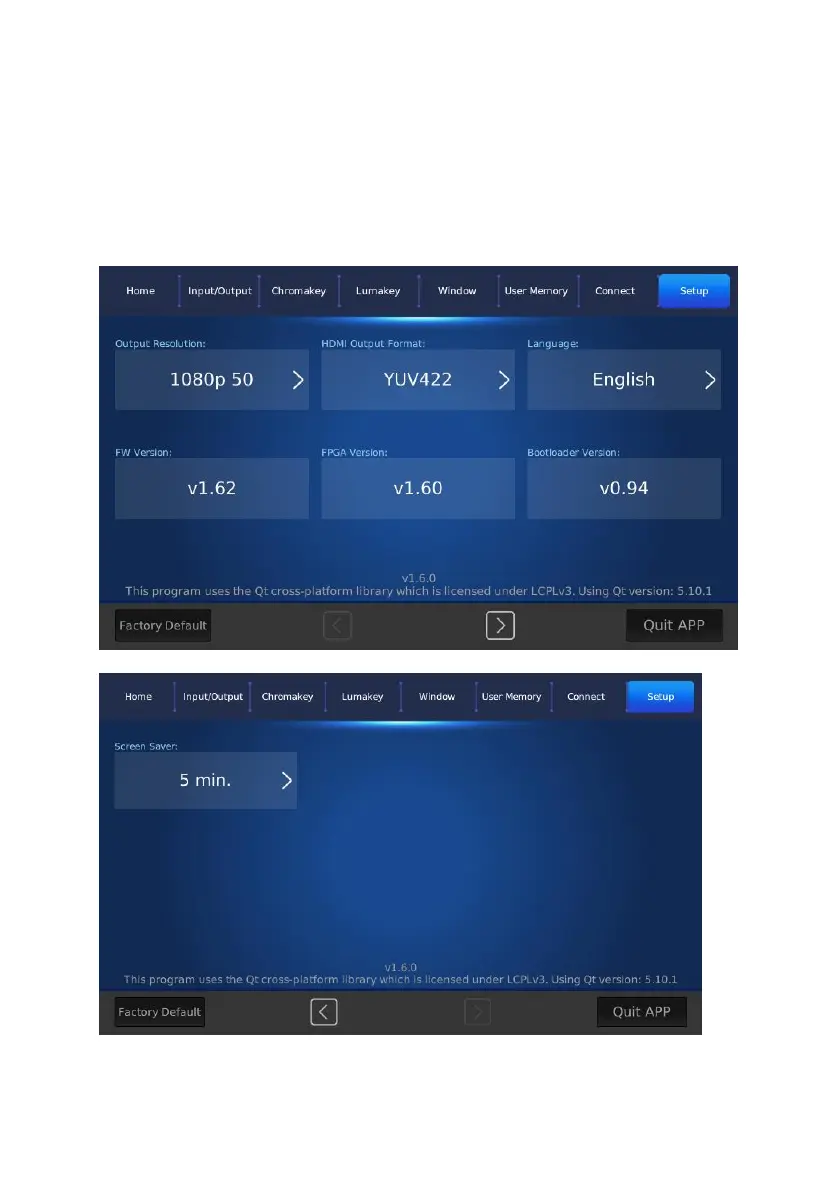

ollowing diagram.
