Datavideo TPC-700P User Manual

47
10.2 AUX
The Datavideo TPC-700/TPC-700P with the SE-3200 control software allows
users to use the “AUX” function. The “AUX” function allows users to assign
signal sources including CH1 to CH-12 input sources, PGM, PVW, CLN PGM,
CLN PVW, PG + DSK, MULTIV, MULTIV2, STILL1, STILL2, FLEX SRC and FLEX
SRC2 randomly to the output interfaces such as SDI1, SDI2, SDI3, SDI4, SDI5,

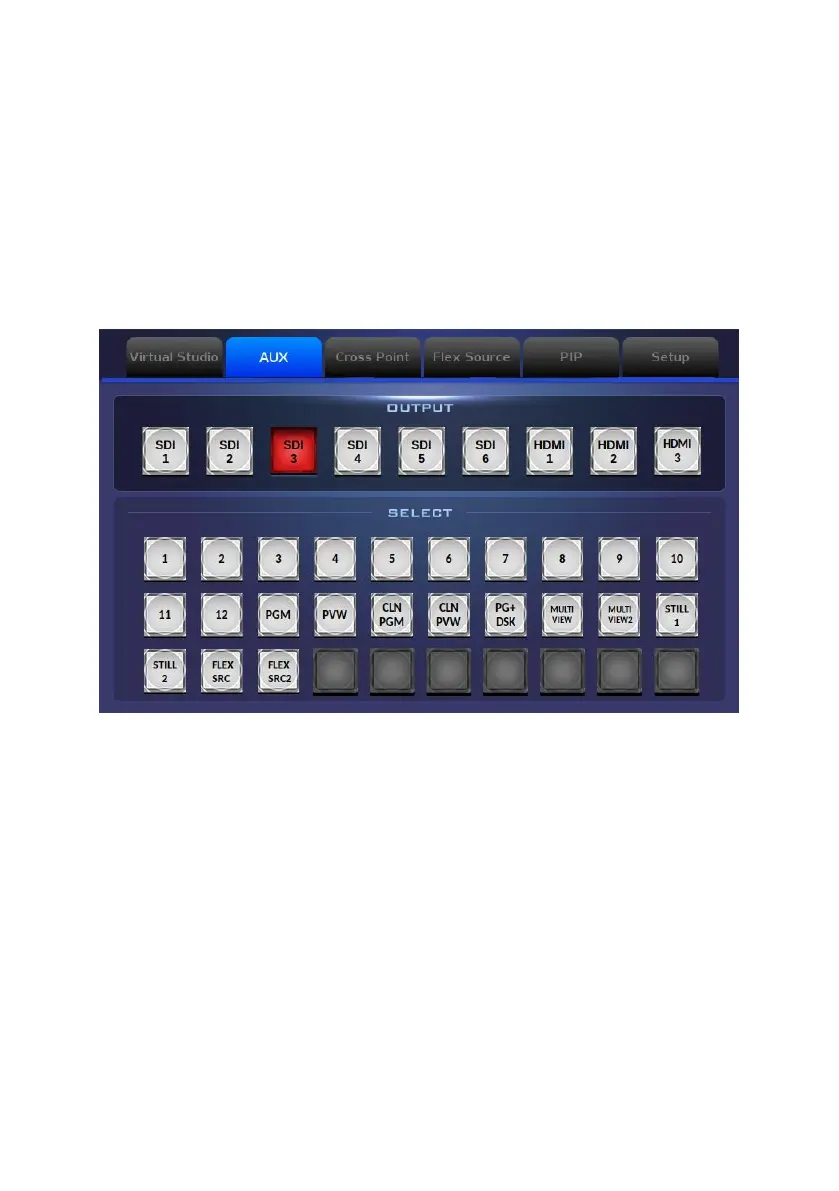

SDI5, SDI6, HDMI1, HDMI2 and HDMI3 to be the output sources. The main
interface of the “AUX” option is shown as following diagram.
10.2.1 How to Use the “AUX” Function
Please follow following steps for using the “AUX” function.
1. Please select your desired output interface for outputting the signal source
from the “OUTPUT” area.
