52
1. Please tap the No.1 arrow to decrease the Audio Gain and Audio Delay.
2. Please tap the No. 2 arrow to increase the Audio Gain and Audio Delay.
3. Please tap the No. 3 slider to increase or decrease the Audio Gain and Audio
Delay by dragging the No.3 slider forward or backward.
4. Please tap the No. 4 “OK” button to make the setting effective and to go
back to the previous screen.
10.4 Flex Source
The Flex Source function allows users to show videos in different sources
simultaneously. Those videos can be shown in PROGRAM and PREVIEW
simultaneously and can be set in different permutations.
The Flex Source output consists of a set of background picture and four sets of
smaller source videos which are overlaid on the background picture. Those
four smaller source videos will be displayed by their corresponding sub-picture
windows.

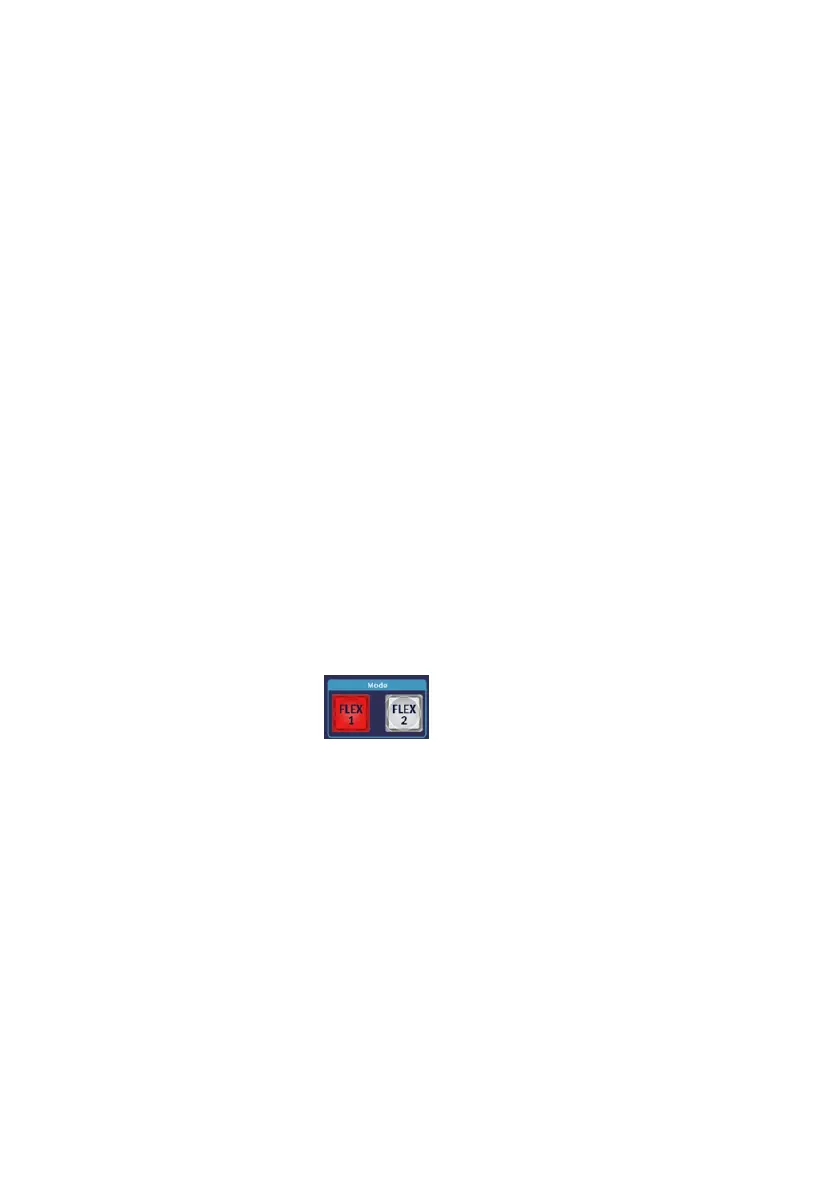

The FLEX1 & FLEX2 buttons within the Flex Source interface allow
users to recall an independent different Bgnd background picture respectively
and four PIP sub-pictures which are shared by the FLEX 1 and FLEX 2 to form a
variety of Flex Source screen combinations. The two Bgnds for the Flex 1 and
Flex 2 are independent respectively. However, all of the four PIP sub-pictures
are shared by the Flex 1 and the Flex 2 and those four PIP sub-pictures are
linked. The main interface of the Flex Source option is shown as following
diagram.
