107
8. “Encoder” icon & “Record” icon: You can press the “Encoder” icon to
switch to the “Encoder” page. You can press the “Record” icon to switch
to the “Record” page.

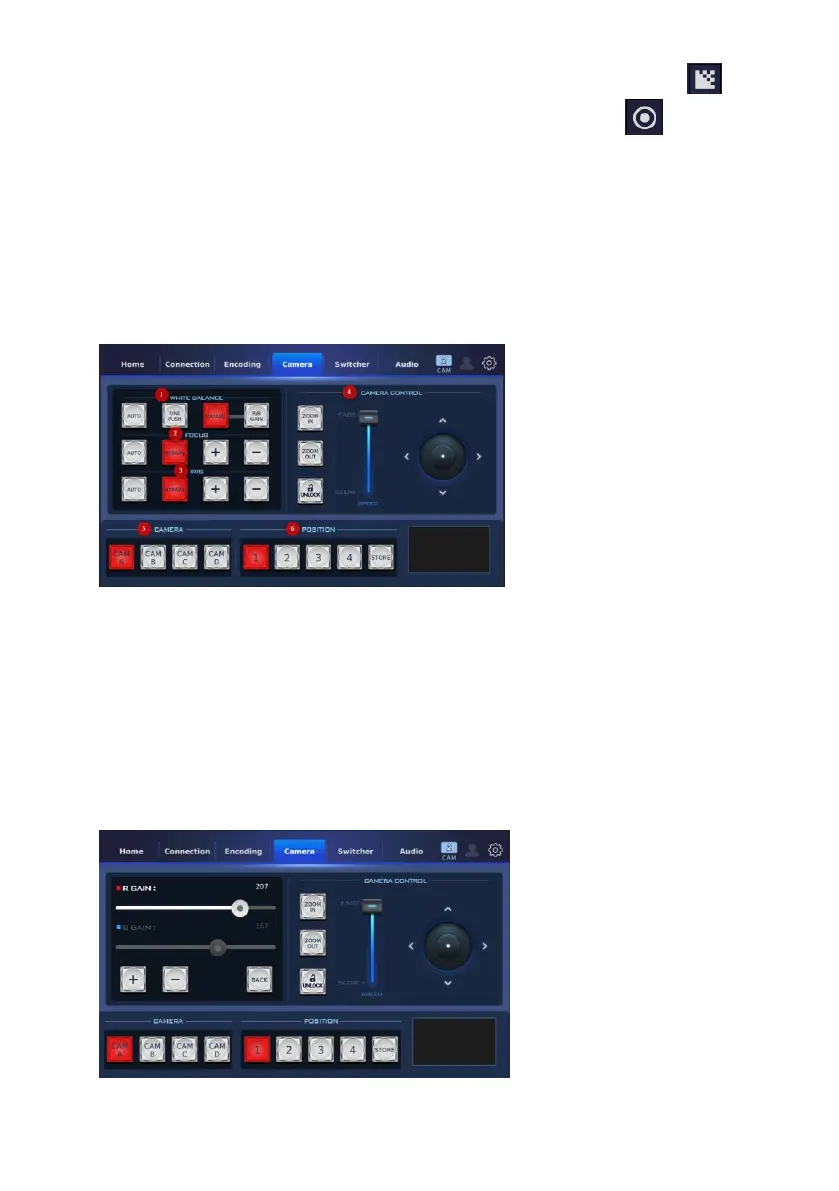

13.2.5 Camera-for 3 cams & 2 cams Interfaces
The “Camera” option allows you to set the camera related parameters
including “White Balance”, “FOCUS”, “IRIS”, “ZOOM IN” and “ZOOM OUT”.
Moreover, you can also store up to 4 preset positions for each connected
camera. The camera interface is shown in the following diagram.
1. White Balance: This section allows you to adjust the “White Balance”
related settings.
AUTO: Press this button to apply the Auto White Balance.
ONE PUSH: Press this button to apply the One-Push White Balance.
MANUAL: Press this button and then the “R/B GAIN” button will be lit for
you to adjust the R Gain or B Gain manually. You can press the slider or
the “+ & -“ buttons for adjusting. Press the “Back” button to go back to
previous page.
