84

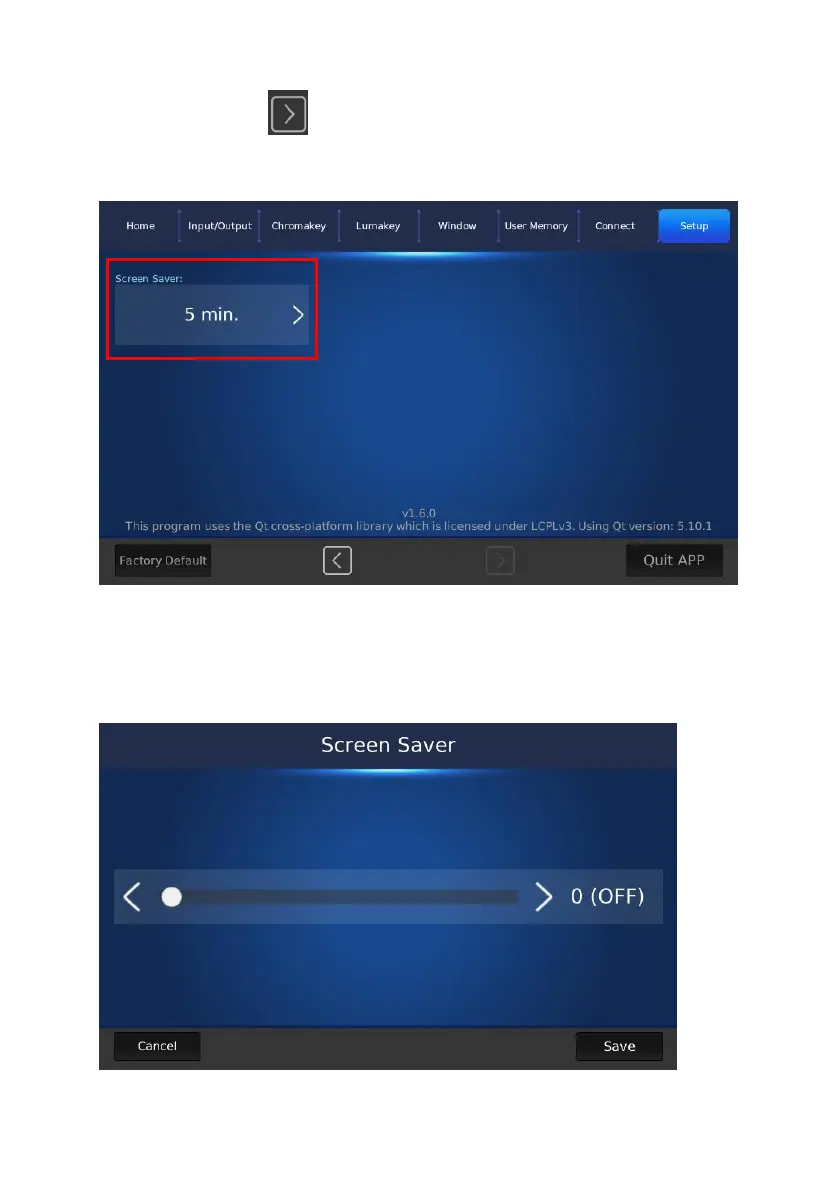

Screen Saver:
Aft
e
r entering t
he “Setup” page, please pres
s the “right
arrow” button
to sho
w
the “S
cree
n Sa
ve
r” op
tion which is shown in
the following diagram.
After pressing the
“
Screen Saver” button, you can see the “S
cree
n Sa
ve
r”
adjustment slider for you
to adjust the “Screen Saver” wai
t time from 0(OFF)
to 10 minutes which is
s
hown
in the following diagram. After the a
djustment
is finished, please press the “
Save” button for applyin
g the se
tting.
83
85
