9
The diagram on the previous page shows a multiple transmitter configuration of three
stations and one repeater, with the repeater within a radio-link of all three stations and the
receiver, extending the distance between the repeater and the three stations.
The repeater can receive signals from up to eight stations/transmitters of any type.
However, there are some limitations as to how many and what type of transmitters the
receiver can listen to.
The table below lists the maximum number of stations allowable for a receiver:
Maximum Number of Transmitters in a Network
*Replaces the ISS anemometer.
**Two are allowable only if both stations are only partially populated. For example, A network can either
have both a Leaf Wetness/Temperature station and a Soil Moisture/Temperature station, or it can have
one combined Leaf Wetness and Soil Moisture/Temperature station.
Combination Network Configurations
Given the flexibility of the repeater to listen to more than one station and to transmit to
other repeaters, both stations and repeaters can be set up to create a variety of transmitter
networks to transmit to one receiver. Up to four repeaters and eight stations can be
configured to transmit to one receiver in a variety of ways.

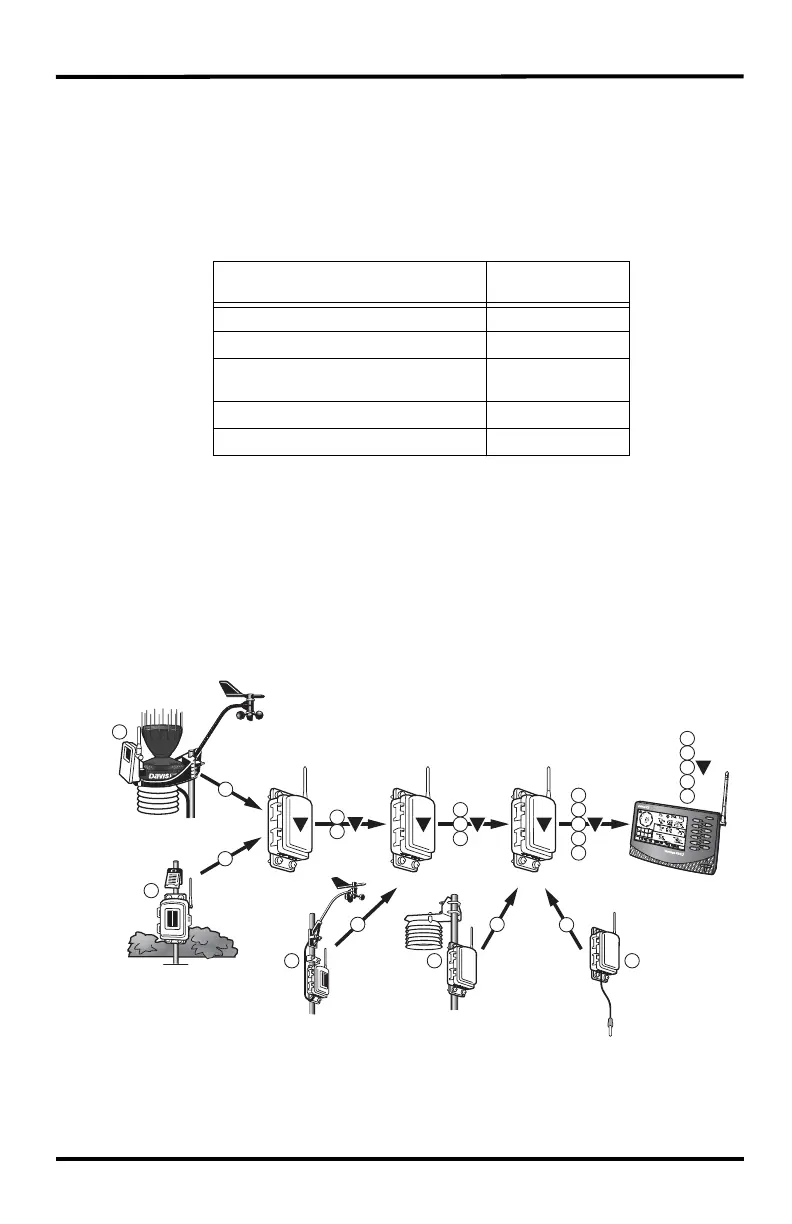

The above diagram displays a multiple transmitter/repeater configuration with five
stations and three repeaters, with each repeater listening to a station or multiple station
Station Type
Maximum
Number
Integrated Sensor Suite (ISS) 1
Anemometer Transmitter Kit* 1
Leaf & Soil Moisture/Temperature
Station
2**
Temperature Station 8
Temperature/Humidity Station 8
Temp/Humidity
Station
Leaf & Soil Moisture
Station
Vantage Pro2
Station
RepeaterRepeater
2
4 4
4
5
C
3
3
B
Repeater
1
1
2
A
2
1
4
5
3
4
3
2
1
5
Vantage Pro2
Console/Receiver
Temperature
Station
Anemometer
Transmitter Kit
2
1
2
3
1
A
B C
C
To Next Page
