DAVIS Vantage Vue User Manual

32
Configuring Repeaters
With a console or Envoy connected to your computer via serial or USB data logger:

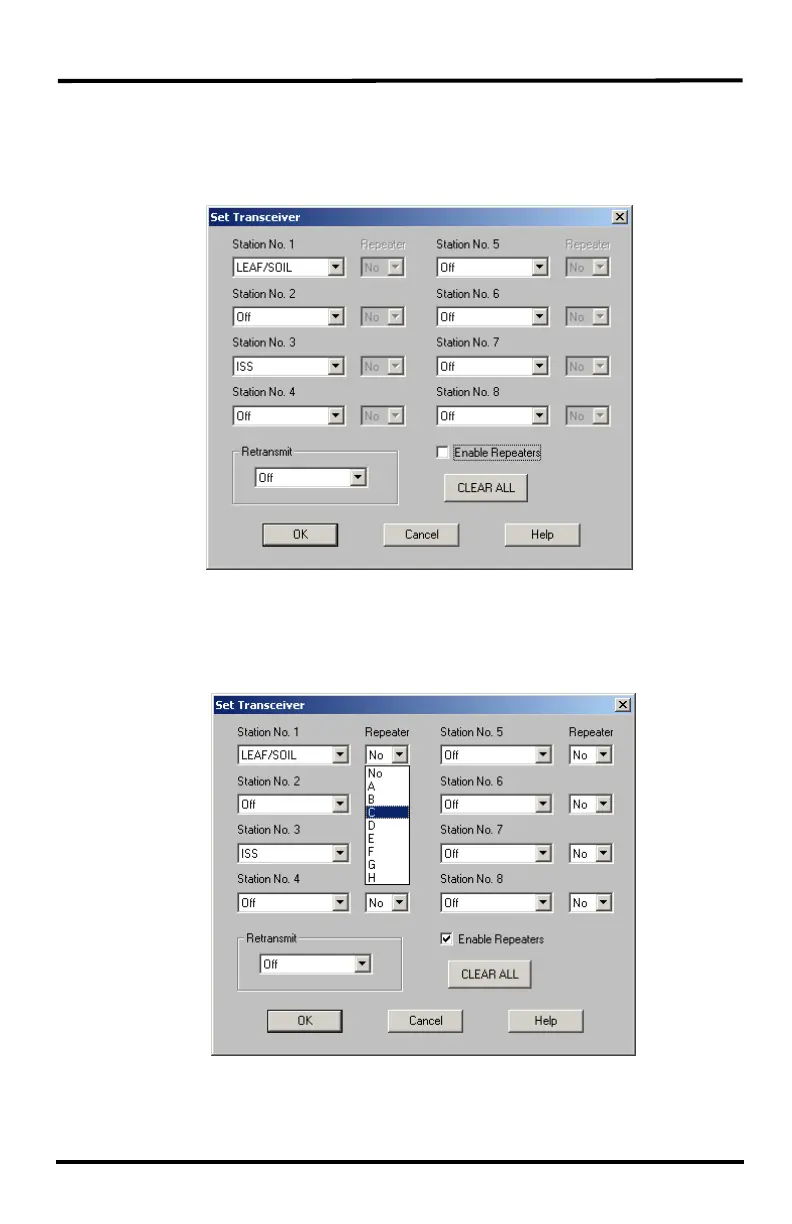

1. Select Set Transceiver from the Setup Menu. The Set Transceiver dialog box
displays
2. Click the Enable Repeaters check box. The Repeater drop down boxes are enabled
for the available stations.
3. Select the repeater through which the station is communicating to a console or
receiver.

DAVIS Vantage Vue Specifications

General

Wind Speed Range	2 to 150 mph (3 to 241 km/h)
Rain Collector Resolution	0.01 in (0.2 mm)
Rain Collector Type	Tipping bucket
Update Interval	2.5 seconds
Temperature Accuracy	±1°F (±0.5°C)
Humidity Accuracy	±3%
Wireless Transmission Range	up to 1000 ft (300 m)
Humidity Range	1 to 100% RH
Wind Direction	0 to 360°
Wind Direction Accuracy	±3°
Power Supply	Solar-powered with battery backup
Console Display	LCD with backlight
Power (Console)	3 C batteries or AC adapter
Wind Speed Accuracy	±2 mph (±3 km/h) or ±5%, whichever is greater
Solar Radiation Sensor	Not included
UV Sensor	Not included
Rain Measurement Accuracy	±4% at rates up to 2 in (50 mm) per hour
