DAVIS Vantage Vue User Manual

33
Note: The repeater selected for the station should be the repeater closest to the console or receiver. For
example, in a daisy chain of one station and three repeaters, the last repeater in chain (C) is the repeater
that should be selected.
4. Continue selecting the correct repeater ID for each station in the network. Click OK to
save the settings and exit the dialog box.
Monitoring Repeater and Station Battery Life

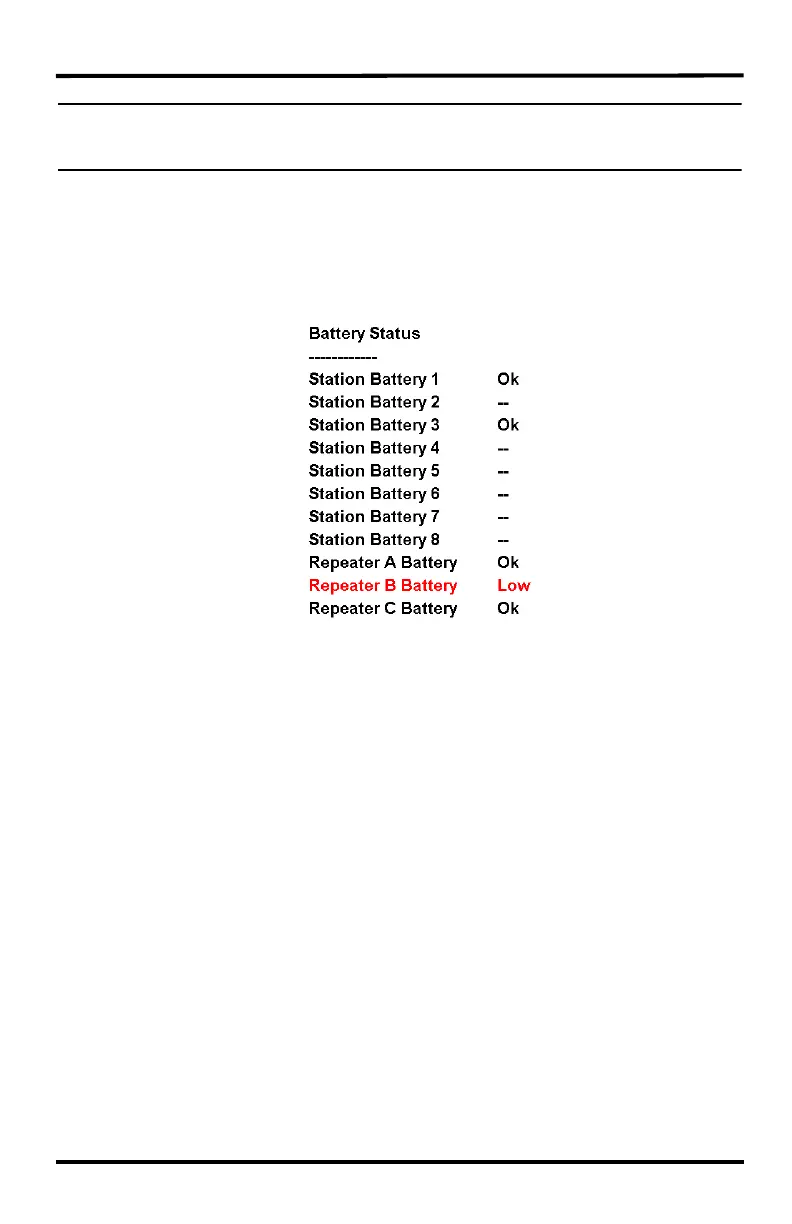

1. Select Alarm and Battery Status from the Window Menu. The Alarm and Battery
Status window displays:
Battery status displays for every station and repeater selected in the Set Transceiver
dialog box, and for repeater A through the highest repeater selected in the Set
Transceiver dialog box.

DAVIS Vantage Vue Specifications

General

Wind Speed Range	2 to 150 mph (3 to 241 km/h)
Rain Collector Resolution	0.01 in (0.2 mm)
Rain Collector Type	Tipping bucket
Update Interval	2.5 seconds
Temperature Accuracy	±1°F (±0.5°C)
Humidity Accuracy	±3%
Wireless Transmission Range	up to 1000 ft (300 m)
Humidity Range	1 to 100% RH
Wind Direction	0 to 360°
Wind Direction Accuracy	±3°
Power Supply	Solar-powered with battery backup
Console Display	LCD with backlight
Power (Console)	3 C batteries or AC adapter
Wind Speed Accuracy	±2 mph (±3 km/h) or ±5%, whichever is greater
Solar Radiation Sensor	Not included
UV Sensor	Not included
Rain Measurement Accuracy	±4% at rates up to 2 in (50 mm) per hour
