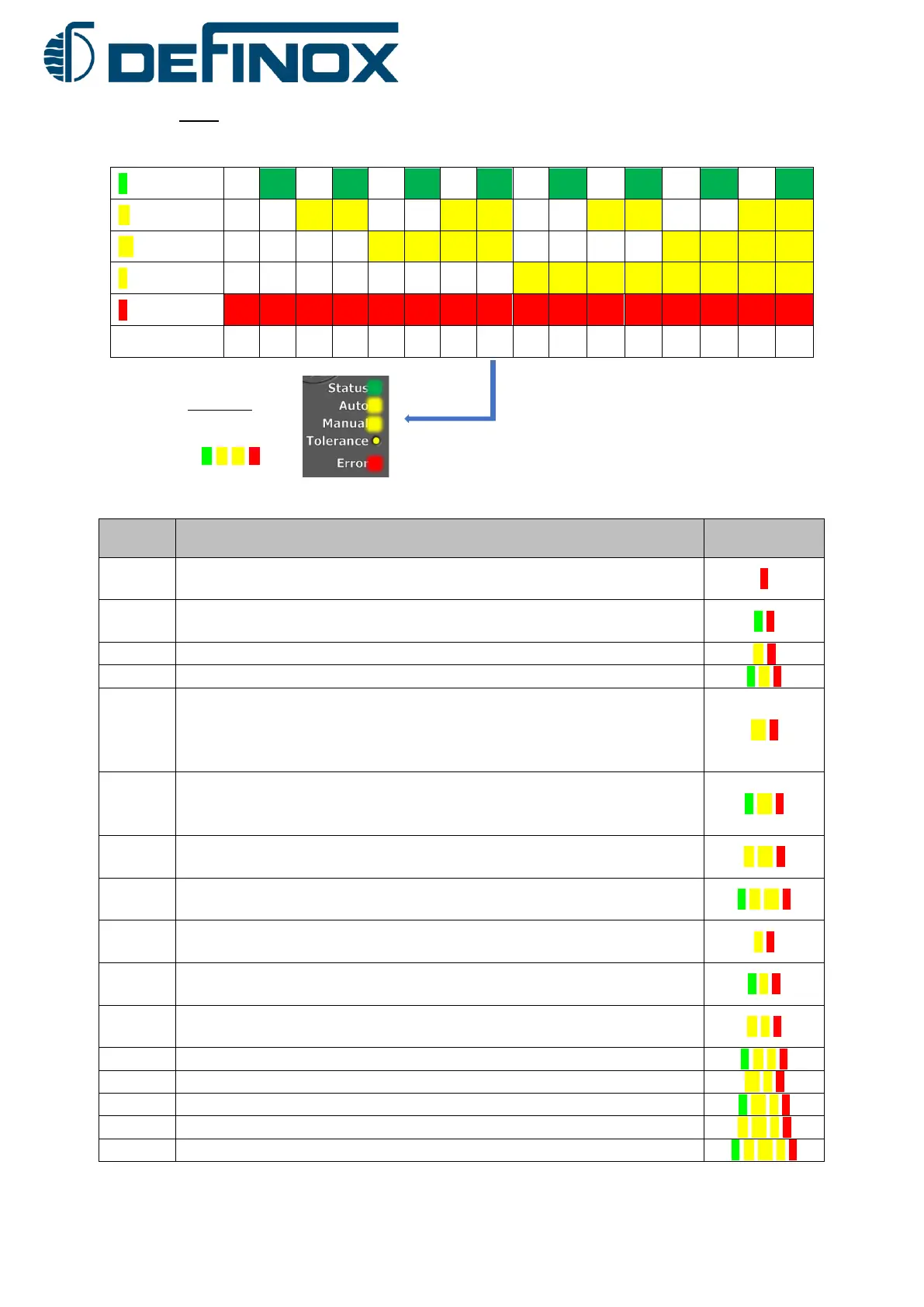

8.8.2 Errors
The table below identifies the error code.
Status
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
Auto
0
0
1
1
0
0
1
1
0
0
1
1
0
0
1
1
Manual
0
0
0
0
1
1
1
1
0
0
0
0
1
1
1
1
Tolerance
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
Error
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Code #
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Example:
Error code #23
LED S A M E
Code #
Error Description
LED
16
Magnetic cam error
(Missing or wrong orientation)
E
17
Solenoid valve error
(Missing solenoid valve during automatic calibration)
S E
18
Air network problem
A E
19
External detector error
S A E
20
Air supply or actuator problem:
1) The position was not reached in the allotted time.
2) Lack of air or mechanical problem
3) Outside tolerance
M E
21
Unexpected valve movement:
1) Manual forcing
2) Shock loading
S M E
22
External detector missing
(Restart the calibration if it was removed intentionally)
A M E
23
Missing EV1
(Restart the calibration if it was removed intentionally)
S A M E
24
Missing EV2
(Restart the calibration if it was removed intentionally)
T E
25
Missing EV3
(Restart the calibration if it was removed intentionally)
S T E
26
Interlock activated (more than one solenoid valve activated at the same
time)
A T E
27
Hardware fault
S A T E
28
Calibration canceled. Return to previous settings
M T E
29
Pigging mode configuration error
S M T E
30
Voltages too low (check if supply voltage is above 20 V)
A M T E
31
Safety stop (too long stroke or wrong position of the magnetic cam)
S A M T E
