MAINTENANCE NOTICE
NM-275 index 09 Page 46/50 September 2021

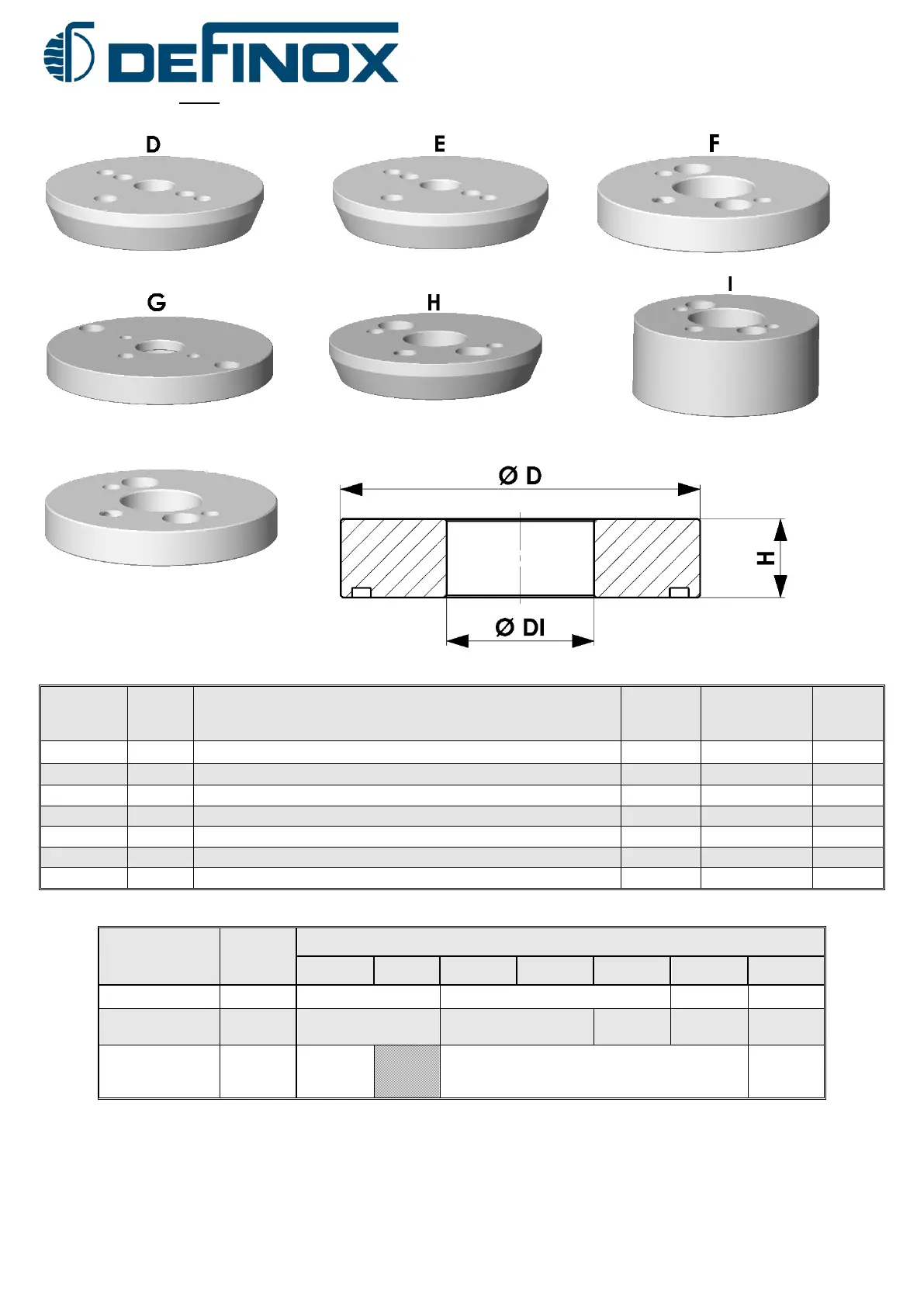

9.9.3 Bases
Ref.
Visual
Description
Diameter
Ø D
Inside
diameter
Ø DI
Height
H
7162077
D
Base for actuator center distance 32
79.5
15
15
7162190
E
Base for PEAX actuator
79.5
15
15
7162141
F
Base for DCX / VDCI / VEOX actuator
83
34
18
7162212
G
Base for VDCI VDE / 95 DN125/150 actuator
118
25.5
15
7162211
H
Base for DCX1-2 DN25-40 actuator (Center distance Ø50)
79.5
24
15
7162213
I
Base for VDCI MC DN125-150 actuator
83
34
35
7162760
J
Base for DCX1-2 DN50-100 actuator (Center distance Ø60)
89
28
18
Description
Quantity
Ref.
D
E
F
G
H
I
J
CHC base screw
2
7380341
7380303
7380325
7380833
O-ring base /
actuator
1
7380808
7162075
7006229
7162075
7380352
O-ring base /
hole 1/8’’ Gas
1
7006064
7006064
7006420
