Definox Sorio - Page 47

MAINTENANCE NOTICE
NM-275 index 09 Page 47/50 September 2021

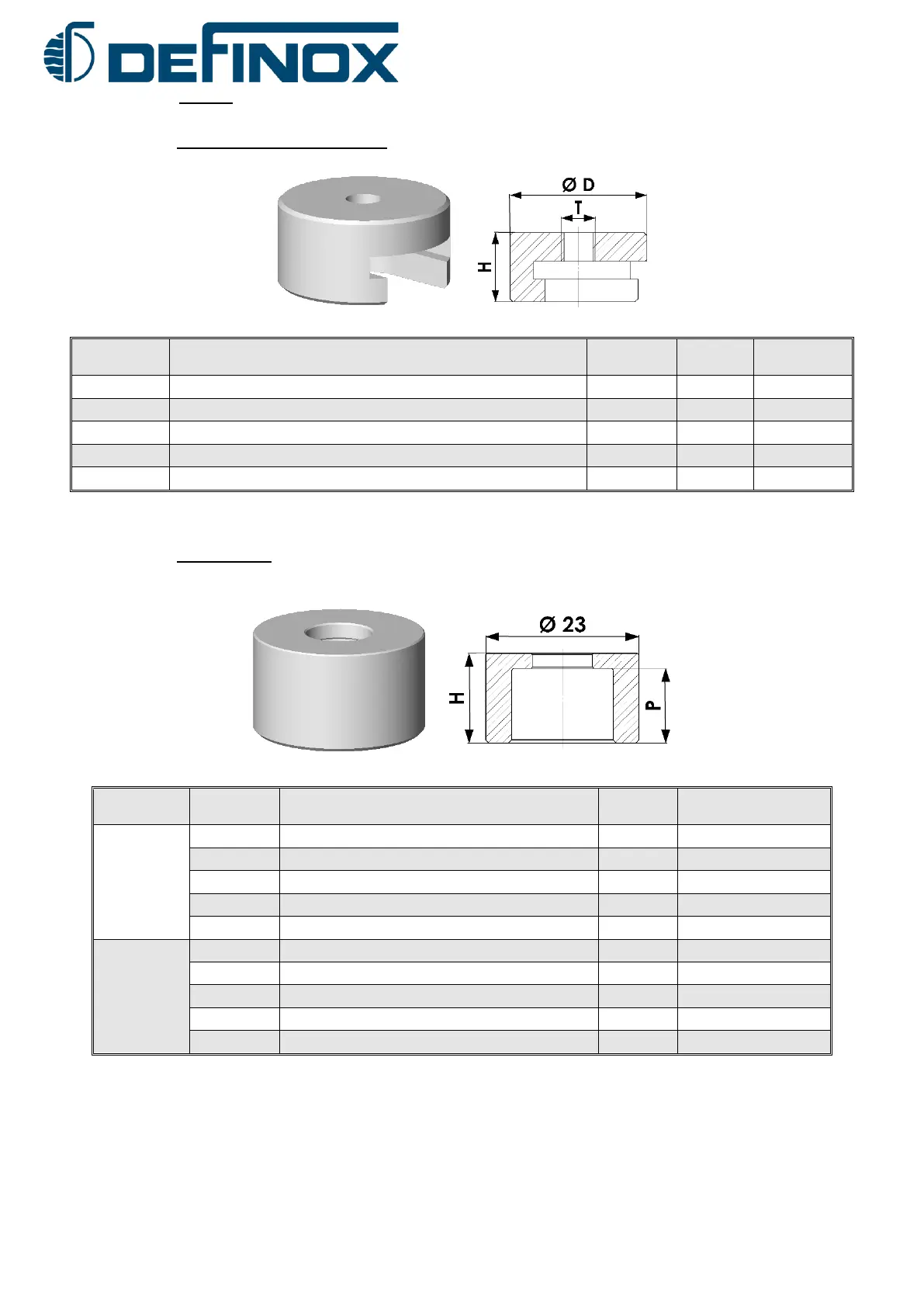

9.9.4 Spacers
9.9.4.1 DMAX and BALANCED DCX3/4
Ref.
Description
Diameter
Ø D
Height
H
Tapping
T
7162203
Spacer for actuator DMAX DN10-15 - DMAX Sampling
17.75
10
M6
7162204
Spacer for actuator DMAX DN25-51
23.75
12
M6
7162317
Spacer for actuator DCX3/4 BALANCED DN25-40
15.75
15.5
M6
7162318
Spacer for actuator DCX3/4 BALANCED DN50-80
19.75
15.5
M6
7162319
Spacer for actuator DCX3/4 BALANCED DN100
24.9
15.5
M6
9.9.4.2 VDCI MC PFA
DN
Ref.
Sorio
®
spacer VDCI MC PFA
Height
H
Counterbore depth
P
DN38/51
7162191
Depth 9.5 mm
11.5
9.5
7162192
Depth 10 mm
12
10
7148647
Standard
12.5
10.5
7162193
Depth 11 mm
12.5
11
7162194
Depth 11.5 mm
12.5
11.5
DN63/125
7162195
Depth 10.25 mm
12.5
10.25
7162196
Depth 10.75 mm
13
10.75
7148635
Standard
13.5
11.25
7162197
Depth 11.75 mm
13.5
11.75
7162198
Depth 12.25 mm
13.5
12.25
