MAINTENANCE NOTICE
NM-275 index 09 Page 48/50 September 2021
9.9.4.3 VDCI PFA 1991 / 1995
DN
Ref.

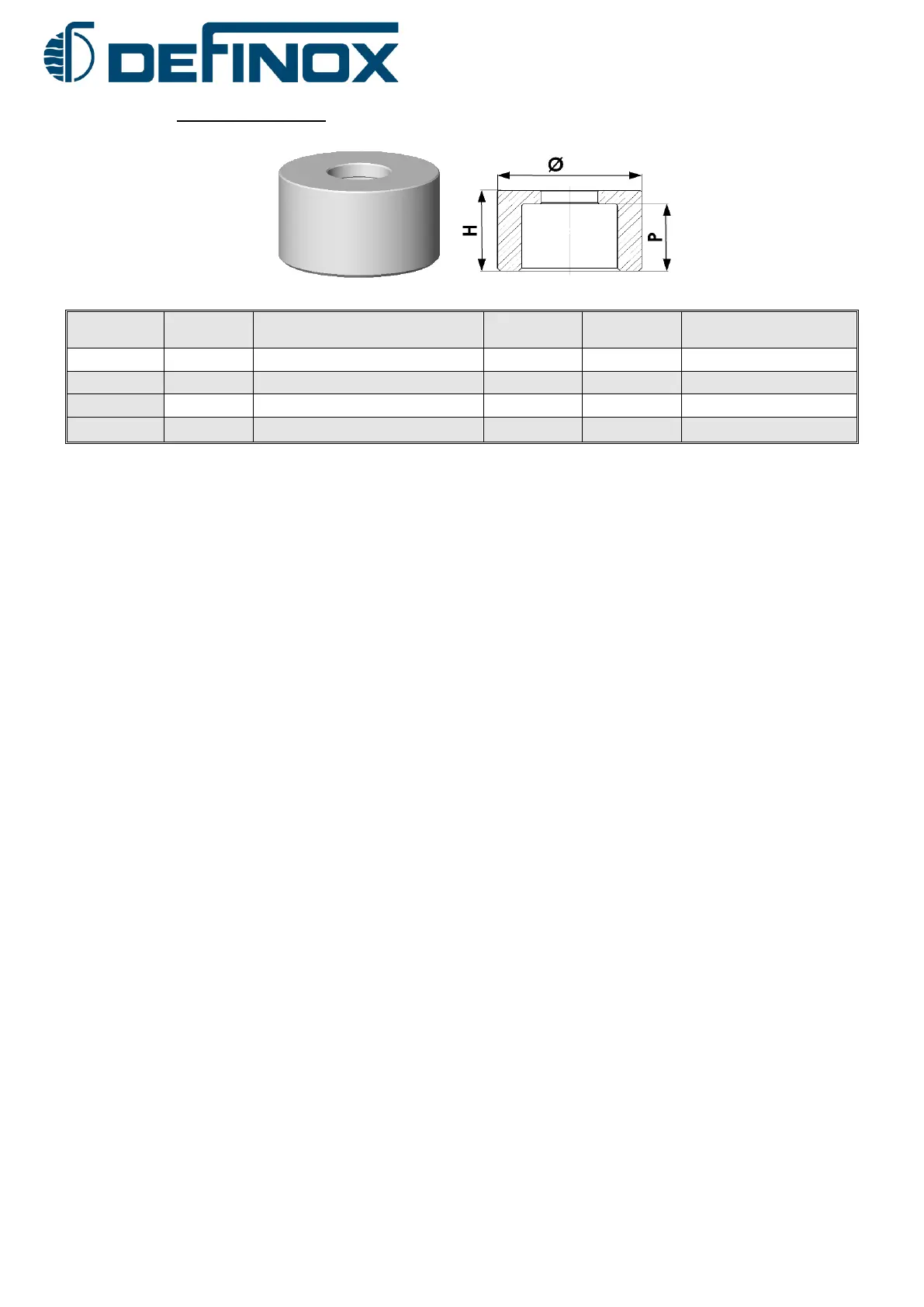

Spacer VDCI 95
Diameter
Ø
Height
H
Counterbore depth
P
DN38/51
7140016
Depth 2 mm
16
5
2
DN63/76
7140036
Depth 1.5 mm
24
6.5
1.5
DN80/104
7140158
Depth 1.8 mm
24
6.8
1.8
DN125/150
7140076
Depth 6 mm
33
11
6
