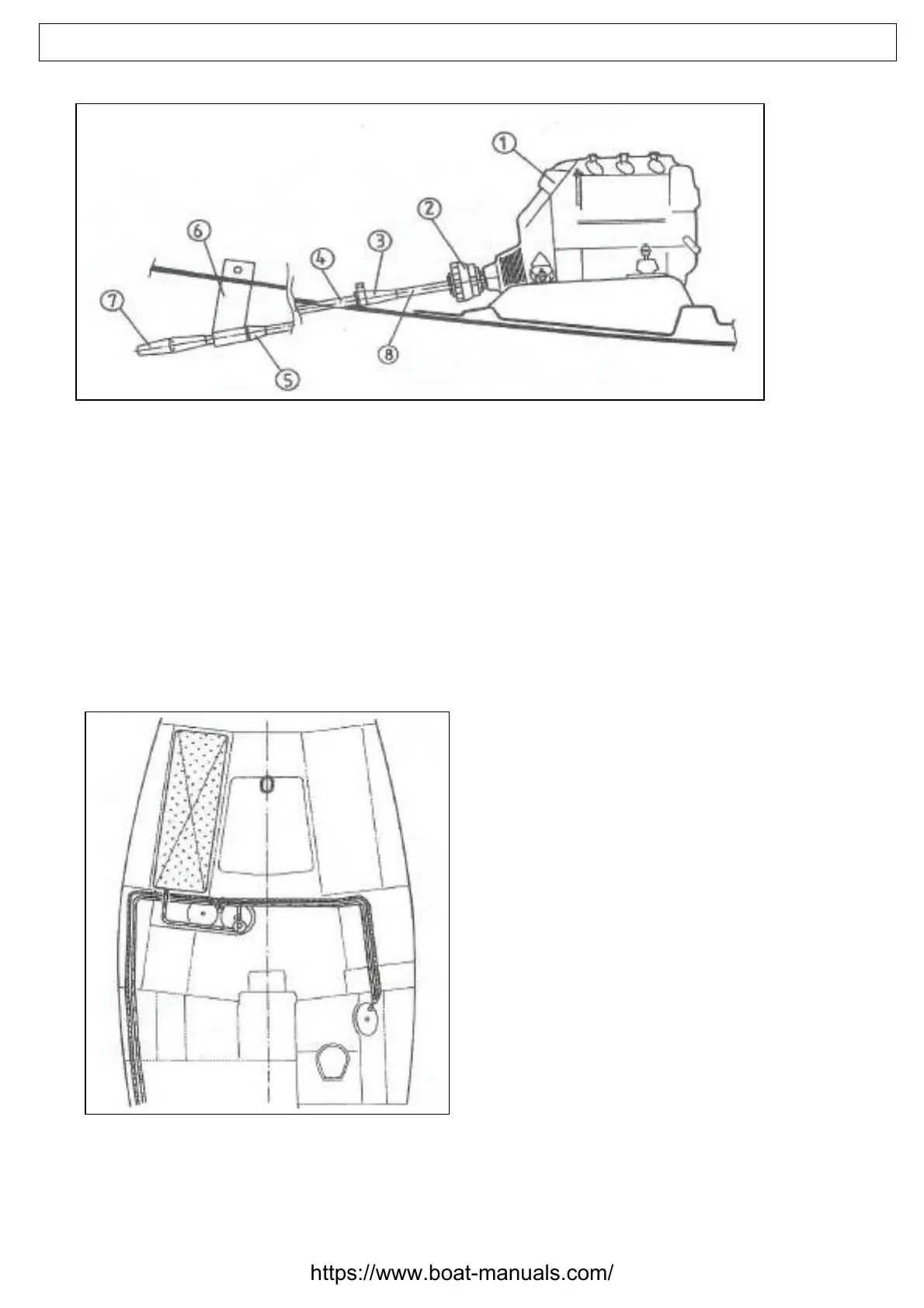

Fig. 34 Diagram of shaft arrangement
1. Engine
2. Centraflex shaft coupling
3. VOLVO shaft seal
4. Stern Tube
5. Zinc anode
6. Propeller with cutlass bearing
7. Folding propeller
8. Propeller shaft
Drinking water system
Fig. 36 Drinking water system
The water tank has a capacity of 100 litres
and is located under the portside saloon
bunk. A tank vent pipe is fitted. The water
level can be monitored through a
transparent cover.
Skin fittings and Stopcocks
All skin fittings need to be checked
occasionally: hose clips should be tightened
at least annually and swivel nuts for the skin
fittings checked and tightened every two
years. The quick-acting ball valves have a
gland beneath the operating lever, which
can be tightened if small quantities of water
emerge.
No. 1 Skin fitting 1½“, Stowe echo
sounder.
No. 2 Skin fitting 1½”, Stowe log
No. 3 Skin fitting ¾“, sink outlet with
quick-acting ball valve. The Skin
fitting is located in the locker next
to hob/oven
No. 4 Skin fitting ¾“, washbasin outlet
with quick-acting ball valve. To
gain access to the Skin fitting,
open the cupboard door
underneath the washbasin.
33
