Navigation lights/mast lights
The prescribed navigation lights are factory
fitted, and are tested by the Federal Maritime
and Hydrographic Agency.
- Two-coloured bow light
12V/25W bulb, socket B15
- Stern light
12V/10W bulb, socket B15
- Masthead light (steaming light)
12V/10W bulb, socket B15
- All-round light (anchor light)
12V/10W bulb, socket B15
- Tricolour light
12V/25W bulb, socket B15
Control boxes for electric winches
The Control boxes for electric winches are
clearly visible, fitted to the hull outer wall on the
cockpit locker.
Circuit diagram
The wiring can be traced back from the circuit
diagrams on Pages 39/40.
Brown 2.5 Interior lights, port side
Br/white 2.5 Interior lights, stbd side
Orange 2.5 Bow & Stern lights
Beige 2.5 Masthead light
Yellow 2.5 Anchor light
Green 2.5 Tricolour light
Grey 2.5 Water Pump
White 2.5 Bilge Pump
Red 2.5 Navigation Instruments
Red/black 2.5 VHF
Red 6.0 Autopilot
Violet Fuel Gauge +
Pink G tank indicator
Blue/white Earth tank indicator
Dark Blue D –
Maintenance of the electrical system
The high salt and moisture content of sea air
can cause cable connections, plug & socket
connections and terminal strips to corrode,
even when they have been fitted with utmost
care. Check these components at least once a
year. A visual inspection and subsequent
spraying with an anti-corrosion agent will
usually suffice.

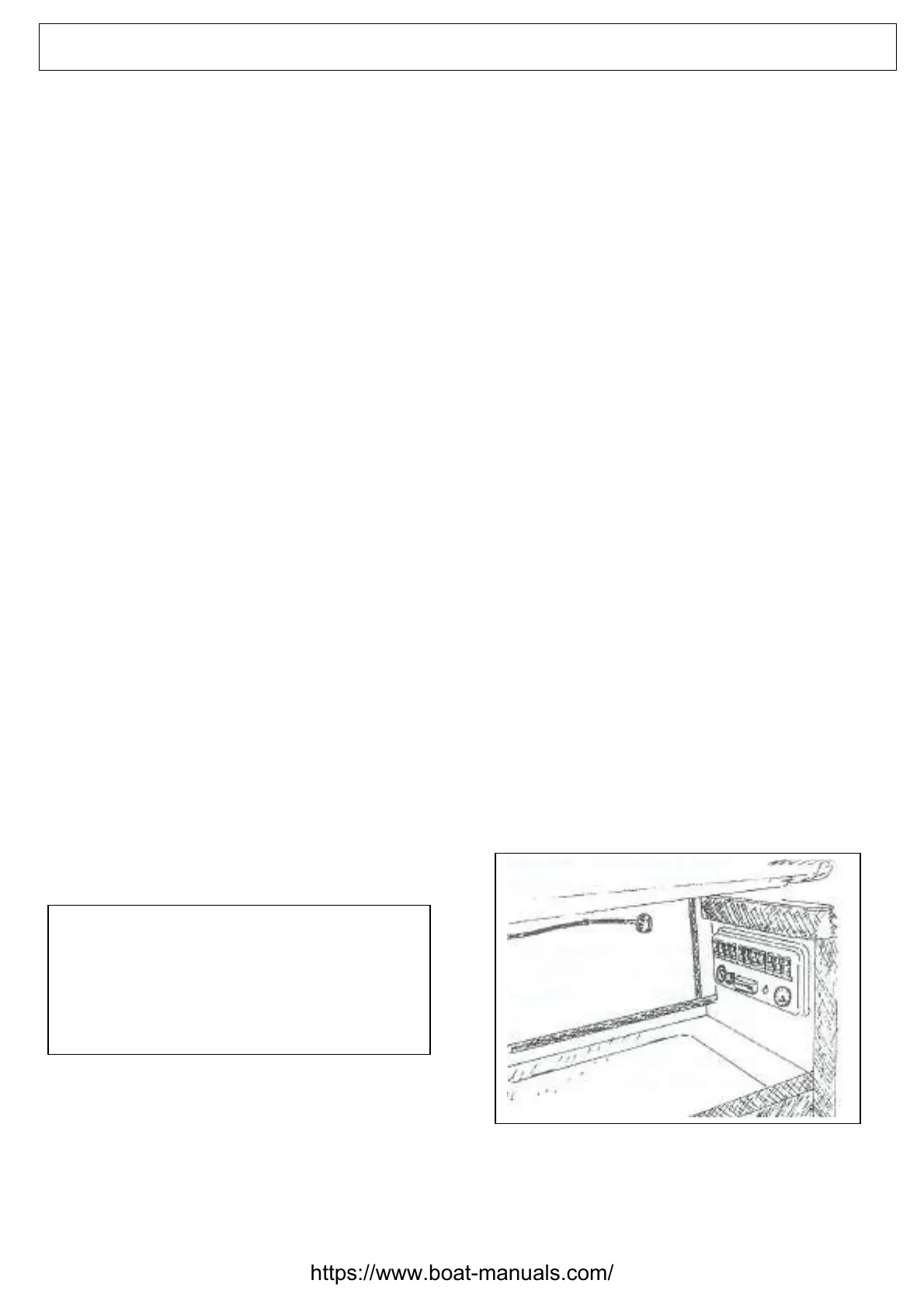

Fig. 40 Navigation station, with instruments. Space is
available for further instruments
Ensure good ventilation during winter
storage by putting the locker seat lids
underneath. Spray all contact points
annually with marine spray.
Dehler 35 cws
37
