10 Part Number: 9291481 05/18
Installation Section 2

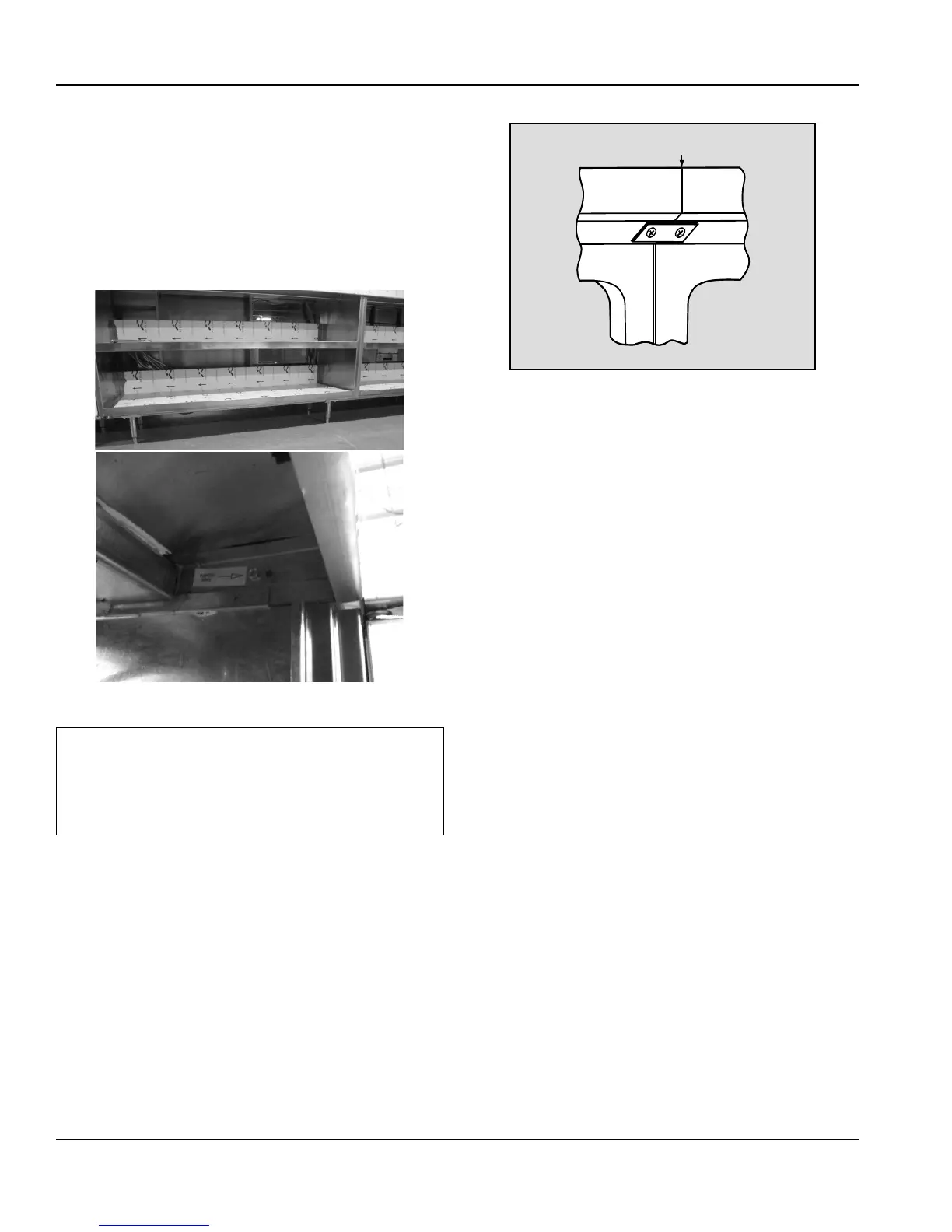

Attach Non-Refrigerated Bases (Shelving Units)
38. The alignment of shelving units, whether open shelf,
hinged or sliding door or drawer base, is achieved with
screws. 1” (2.5cm) diameter holes are located at the
top of the interior sides to allow the unit to be fastened
to the adjacent unit with #14 x 3/4” lag type hex head
sheet metal screws. A yellow sticker will indicate where
the units are to be fastened together.
Attach Refrigerated Bases
,
Caution
If a refrigerated base does not have a condensate
evaporator supplied, you must connect the condensate
line to a suitable drain. Otherwise, water will collect on
the floor, causing a potentially hazardous situation.
39. Refrigerated bases use screws. The location for
fastening two units together is in the machine
compartment (behind the louver panel) on self-
contained units. Use #14 x 1.25” hex head screws.
40. Two refrigerated units must be splined behind the units
at the backsplash, using #8 x 0.75” pan Phillips head
screw with 1/4-20 locking nut. In the front, a small
stainless steel strap is used under the front nosing to
join the units, fastened with Phillips truss head sheet
metal screws.
Seam Between
Units
Nosing
Door
Opening
Remote refrigerated bases fastening method
Attach Equipment Stands
41. Equipment stands are fastened to other line-up units in
two places.
42. Look for a pre-drilled hole in the mullion end. This hole
is located approximately 2” (5.1cm) from the front and
1.5” (3.8cm) down from the top. Use #14 x 3/4” Lag
type hex head screw in this hole.
43. Check behind the backsplash. A 1” (2.5cm) diameter
hole is located 1” (2.5cm) in from the edge and 1.5”
(3.8cm) down from the top of the side. Use a #14 x
1.25” hex head sheet metal screw to secure this spline.
