6 Part Number: 9291481 05/18
Installation Section 2
Tools And Supplies Required
The following tools are required or will make the installation
easier:
• Mechanical lift - Will lift and hold heavy units off the floor
so that legs can be adjusted, allowing the unit leveling
• 2’ & 4’ Level - To assist in the leveling of each unit from
front to back and left to right
• Locking pipe clamps - Useful in pulling equipment tightly
together while fasteners are installed. This results in a
better spline
• Vise grips - Will hold backsplash bars together as they are
being bolted together
• Rubber mallet
• Socket set
• Phillips screwdrivers
• Hex head screwdrivers
• Straight blade screwdrivers
• 7/16”, 1/2” & 9/16” Open end wrenches
• NSF approved silicone sealant

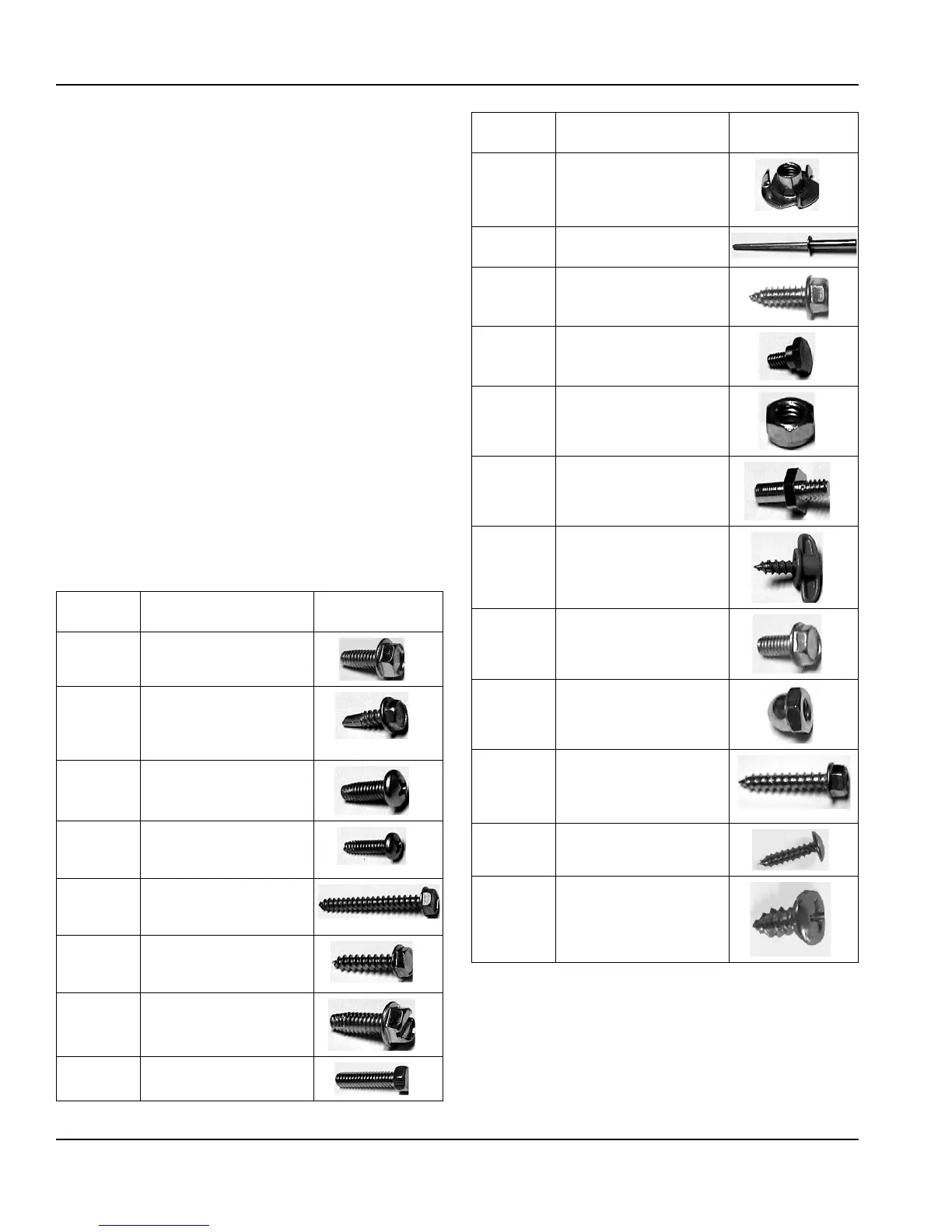

Mark 7 Fasteners
Part
Number
Description Photo
6320019 5/16-18 x .75 Screw — Used
in caster and leg attachment
9321353 #10 x .50 Screw — Used
in attachment of coil
assembly, food wells and
panel attachment
9321355 #10-32 x .50 Screw — Used
on pan cover hinges and
electric raceways
9321361 #6-32 x .75 Screw — Used
on control panels and
sneeze guard brackets
9321067 #10 x 1.75 Screw — Used on
door hinges and refrigerator
base assembly
9321068 #10 x .87 Screw — Used
on door hinges and drawer
fronts
9321043 1/4-20 x .75 Screw — Used
on shelf supports and
compressor hold downs
9321146 1/4-20 x 1.00 Screw — Used
in attachment of tray slides
Part
Number
Description Photo
9321147 1/4-20 3-Prong tee nut —
Mates to part # 9321146.
Used in attachment of tray
slides
3234450 1/8 x .50 Pop stainless steel
rivet — Used on food wells
9321119 #14 x 3/4” Lag type hex
head screw — Used for
splining units together
9321137 #8-32 Shoulder screw —
Mates to threaded insert
9321401 1/4-20 Locking nut — Used
as spot stud retainer
9321374 Salad pan cover hinge pin —
Used on pan cover hinges
and electrical raceways
9321131 #10 x .50 Screw — Used on
coil drain pan
9321247 #10-32 x .37 Screw — Used
on fan motors
9321041 Acorn nut — Used on pan
covers
9321114 #14 x 1 1/4” Lag type
hexhead screw — Used
on counter protector
installation
9321238 #8 x 0.75” Pan Phillips head
screw
9321112 #8 x 0.37” Sheet metal
Phillips head screw
