12 Part Number: 9291481 05/18
Installation Section 2
Solid Tray Slide Installation
57. Solid type tray slides are provided with channels on
approximately 48” (121.9cm) centers. The brackets are
fastened to these channels using #6-32 x .75 screws.
58. If two solid type tray slides are mounted adjacent to
each other, bolt them together with (2) 1/4-20 x 1.00
screws with 1/4-20 locking nuts.
Tray Slides Mounted Onto Finished Back Panels
59. Finished back panels have 1/4”-20 tee nuts inserted
into the back of the panel.
60. Fasten the tray slide brackets to the finished back
panels of the equipment, matching a 1/4”-20 x 1” hex
head machine screw with each tee nut in the back
panel.
Solid Surface Top Installation
61. If the lineup has a solid surface top it must be installed
by someone certified by the solid surface manufacture.

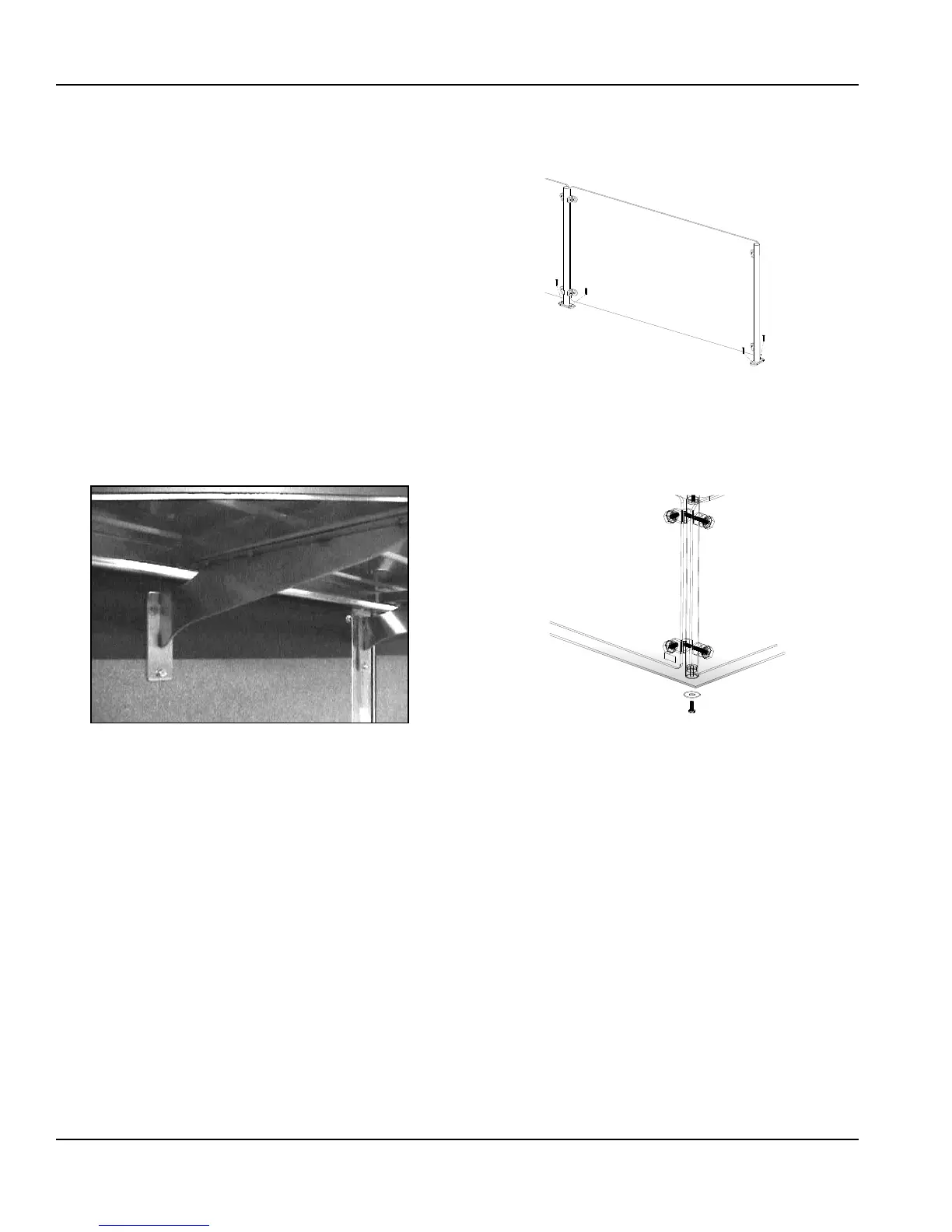

Counter Protector Installation
62. Place counter protector legs over clips. Run set screws
through the predrilled holes in the legs to secure.
Food Shield Installation
63. Set food shield on base unit.
64. Install with screws provided.
• For counter top mounting install with screws
through the flanges.
• For under counter mounting install with 1/4”-20 x
1.00” screw and washers from beneath the counter.
