14 Part Number: 9291481 05/18
Installation Section 2
70. It is common for the controls for more than one
appliance to be combined in a single enclosure. Be
aware that more than one circuit could be supplying
power to the enclosure.
71. Disconnect all power supplies before proceeding with
the re-assembly of the control enclosure.

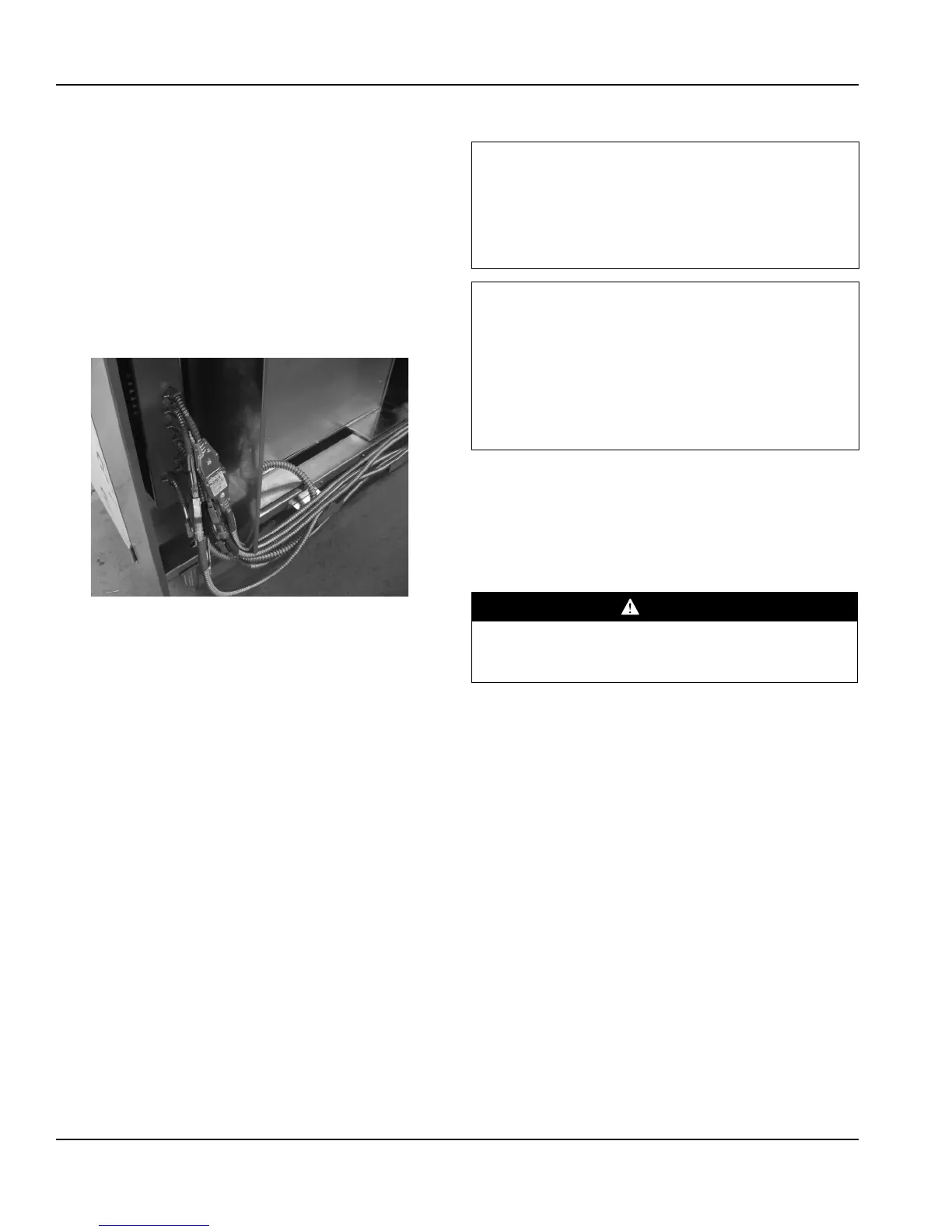

72. On lineups with prewired electrical panels, the conduits
and knockouts are numbered as well as the conductors.
To re-assemble electrical panels connect all conduits to
the knockout of the same number.
73. Connect all conductors to the like numbered
termination in the electrical panels.
74. With the main switches and/or controls turned OFF,
turn on all circuits.
75. Check for the correct power at the supply conductor
termination before operating the appliance.
Cautions For Units With Two Cords
,
Caution
THIS PRODUCT HAS TWO POWER SUPPLY CORDS.
CONNECT EACH PLUG TO A RECEPTACLE THAT IS
CONNECTED TO AN INDIVIDUAL BRANCH CIRCUIT.
UNPLUG ALL CORDS BEFORE MOVING OR SERVICING
THIS APPLIANCE
,
Caution
THIS PRODUCT HAS TWO POWER SUPPLY CORDS
WITH DIFFERENT RATINGS. EACH CORD REQUIRES AN
INDIVIDUAL BRANCH CIRCUIT
CORD PLUG RATING CIRCUIT AMPACITY
1 NEMA X-XXP XXX VOLT, XX AMP XX
2 NEMA Z-ZZP ZZZ VOLT, ZZ AMP ZZ
For Lineups Equipped With A Night Switch
For any counter equipped with a night switch. Turn on main
power switches on all units controlled by night switch. To
begin operation of affected units turn night switch ON. To
stop operation turn night switch OFF.
DANGER
The night switch does not disconnect the unit from the
main power. Disconnect each unit from the main power
before performing any maintenance or service function.
