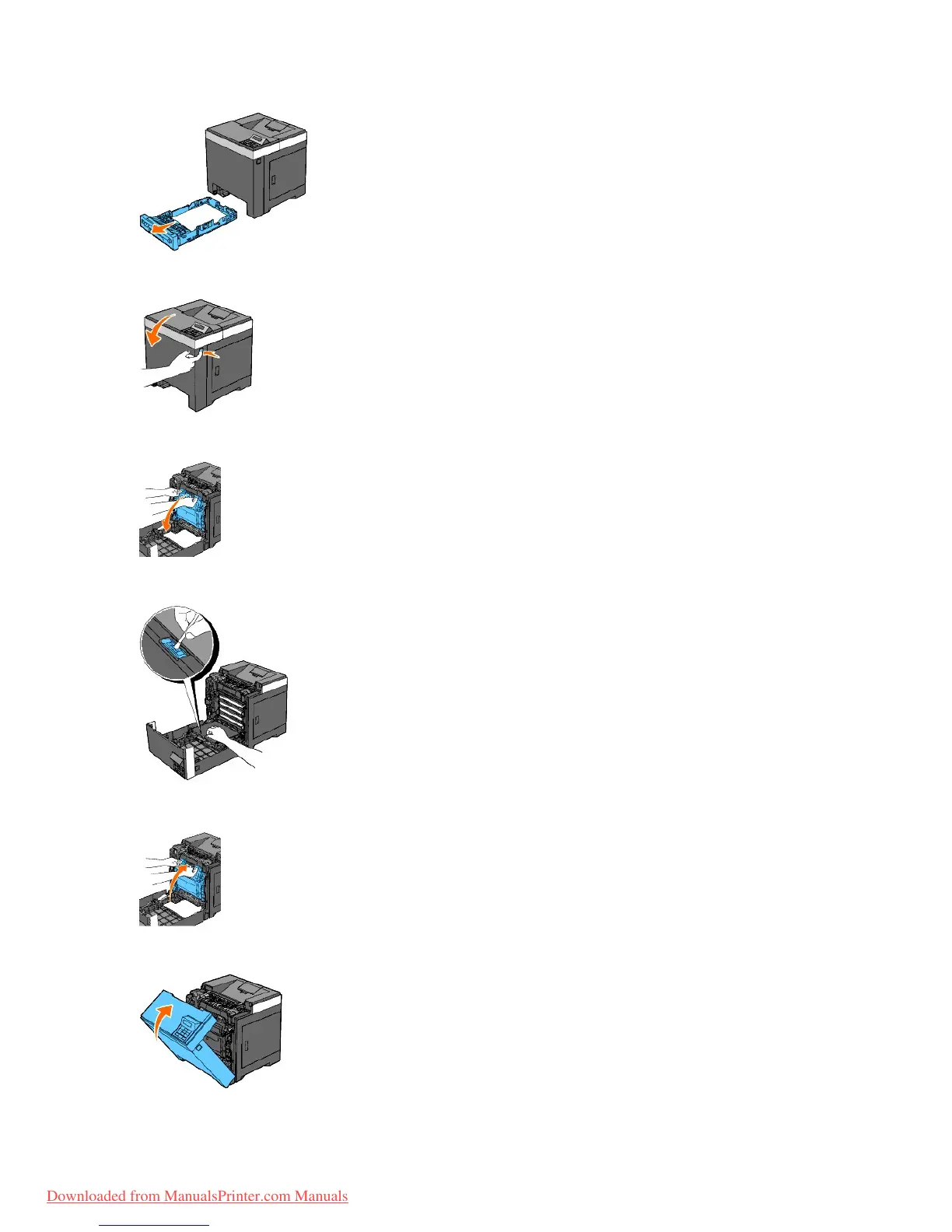

3. Push the side button and open the front cover.



4. Open the belt unit.



5. Clean the CTD sensor inside the printer with a clean dry cotton swab.



6. Close the belt unit by pushing it up.



7. Close the front cover.


