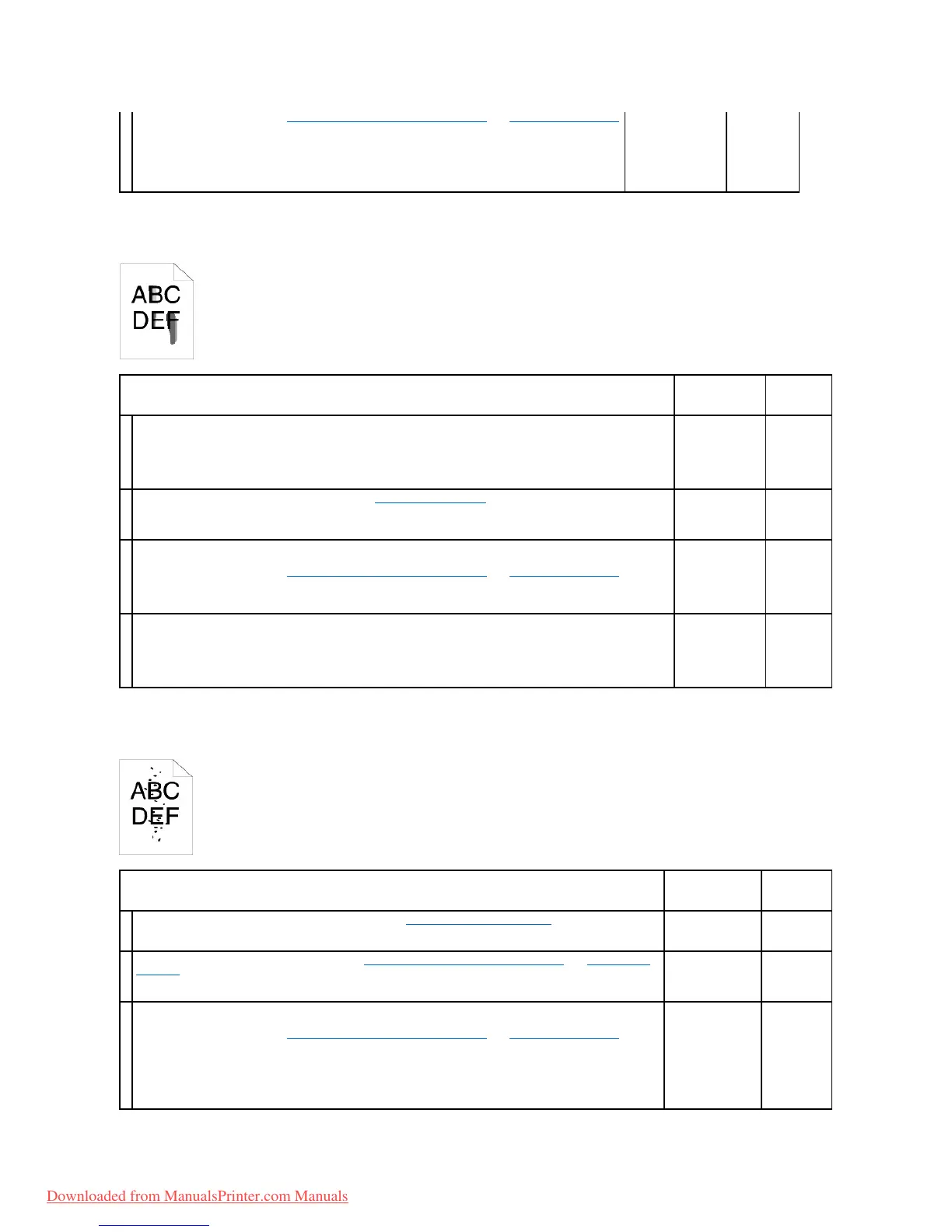

Dell 2130CN - Toner Smears or Print Comes off; Random Spots;Blurred Images


Toner smears or print comes off.

Random spots/blurred images
2
1. Replace the PHD unit. See "Replacing the Print Head Device (PHD) Unit" and "Installing the PHD Unit".
2. After you replace the PHD unit, click Chart Print on the Diagnosis tab.
3. Click the 4 Colors Configuration Chart button.
The 4 Colors Configuration Chart is printed.
Is the problem recovered?
The task is complete.
Contact Dell.

Action

Yes

No
1
The print media surface may be uneven. Try changing the Paper Type setting in the printer driver. For example,
change the plain paper to thick.
1. On the Paper/Output tab, change the Paper Type setting.
Is the problem recovered?
The task is
complete.
Go to action
2.
2
Verify that the correct print media is being used. See "Supported Paper Sizes". If not, use the print media
recommended for the printer.
Is the problem recovered?
The task is
complete.
Go to action
3.
3
Replace the PHD unit if you have a spare.
1. Replace the PHD unit. See "Replacing the Print Head Device (PHD) Unit" and "Installing the PHD Unit".
2. After you replace the PHD unit, test print your document again.
Is the problem recovered?
The task is
complete.
Go to action
4.
4
Replace the fuser if you have a spare.
1. Replace the fuser. See the fuser replacement guide, Replacing the Fuser.
2. After you replace the fuser, test print your document again.
Is the problem resolved?
The task is
complete.
Contact Dell.

Action

Yes

No
1
Ensure that the toner cartridges are installed correctly. See "Installing the Toner Cartridges".
Is the problem recovered?
The task is
complete.
Go to action
2.
2
Ensure that the PHD unit is installed correctly. See "Replacing the Print Head Device (PHD) Unit" and "Installing the
PHD Unit".
Is the problem recovered?
The task is
complete.
Go to action
3.
3
Replace the PHD unit if you have a spare.
1. Replace the PHD unit. See "Replacing the Print Head Device (PHD) Unit" and "Installing the PHD Unit".
2. After you replace the PHD unit, click Chart Print on the Diagnosis tab.
3. Click the Pitch Configuration Chart button.
The Pitch Configuration Chart is printed.
Is the problem recovered?
The task is
complete.
Contact Dell.
