The following explains how to determine the adjustment values for the fast scan and the slow scan using Chart 1 and Chart 2.
Fast Scan

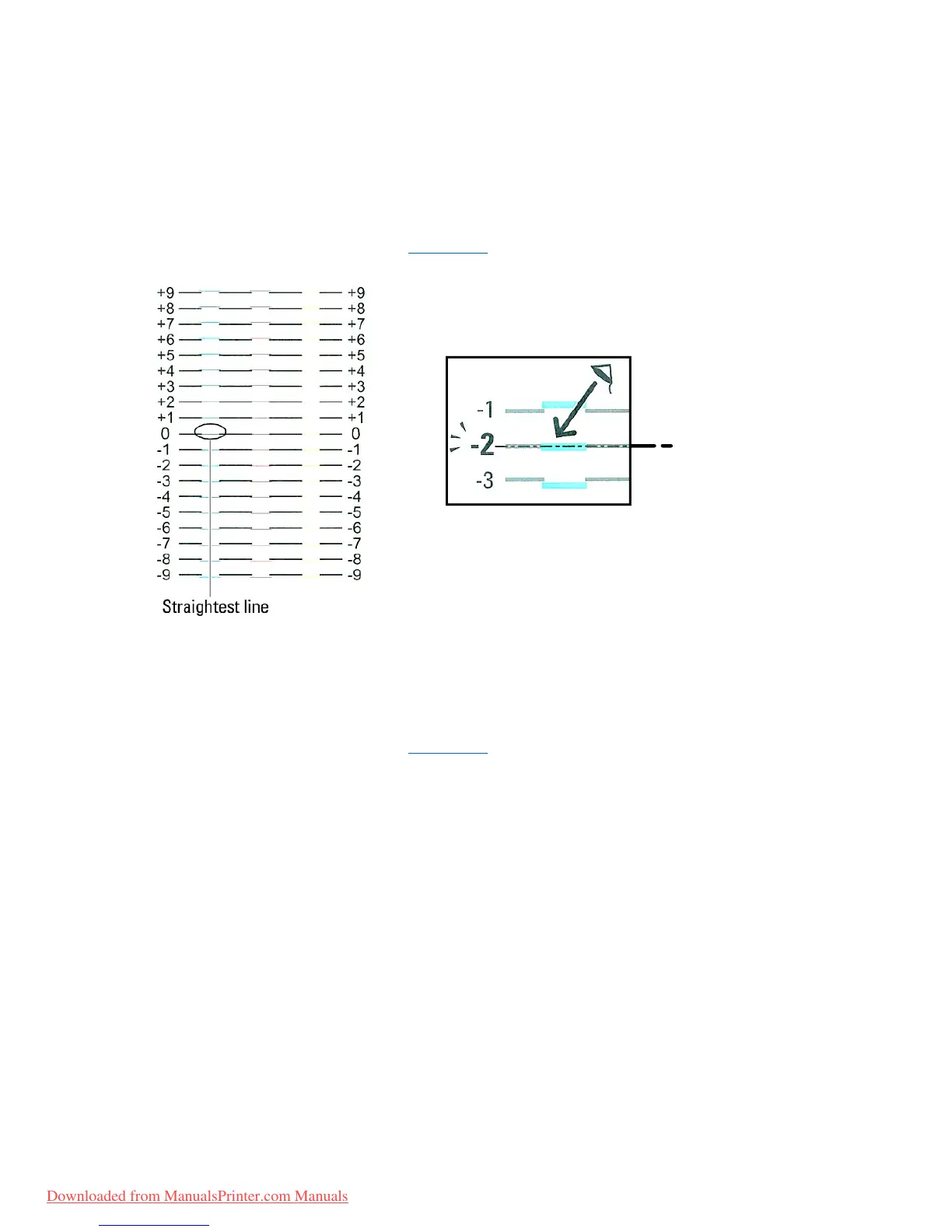

On the Chart 1 of the color registration chart, find the straightest lines where the two black lines and the colored line are most closely aligned for each color
(Y, M, and C). If you find the straightest line, make a note of the value (-9 - +9) indicated by the straightest line for each color.
When the value is 0 for each color, you do not need to adjust the color registration for the fast scan.
When the value is not 0, enter the value using the procedure in "Entering Values"".
Slow Scan
On the Chart 2 of the color registration chart, find the medium line within the range of white area for each color pattern (Y, M, and C). If you find the medium
line, make a note of the value (-9 - +9) indicated by the medium line for each color.
When the value is 0 for each color, you do not need to adjust the color registration for the slow scan.
When the value is not 0, enter the value using the procedure in "Entering Values"".
