Dell 2200 - Figure 6-3. Inside the Chassis-Front;Right Side View

172 pages

Save Page as PDF

To Next Page

To Next Page

To Previous Page

To Previous Page

Loading...

6-4 Dell PowerEdge 2200 Systems User’s Guide

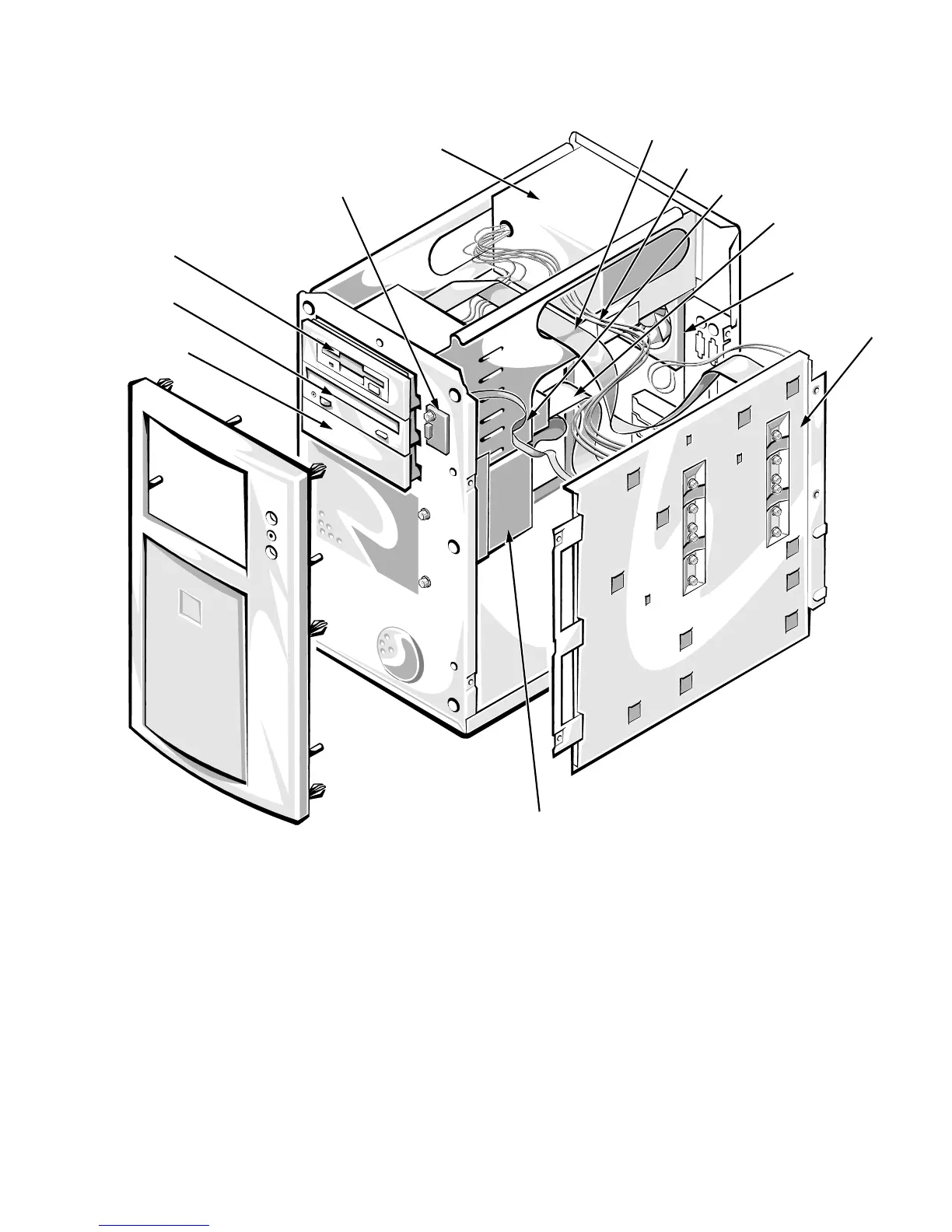

Figure 6-3. Inside the Chassis—Front/Right Side View

system power supply

diskette-drive interface cable

system-board

mounting plate

diskette drive

power cables

cooling fan

control panel cable

SCSI cable

CD-ROM drive

internal hard-disk drive cage

bay for third drive

control panel
