7-2 Dell PowerEdge 2200 Systems User’s Guide
S
ystem Orientation
All directions presented in the procedures in this chapter
are as viewed from a position facing the front of the com-
puter. Use Figure 7-1 to locate items on the system board.
E
xpansion Cards
Your computer can hold up to six expansion cards. The
three EISA expansion-card connectors will accept a mix
of 8- and 16-bit ISA cards and/or 32-bit EISA master or
slave cards. The three PCI expansion-card connectors
accept 32-bit PCI cards.
Figure 7-2 shows examples of the different types of
expansion cards.

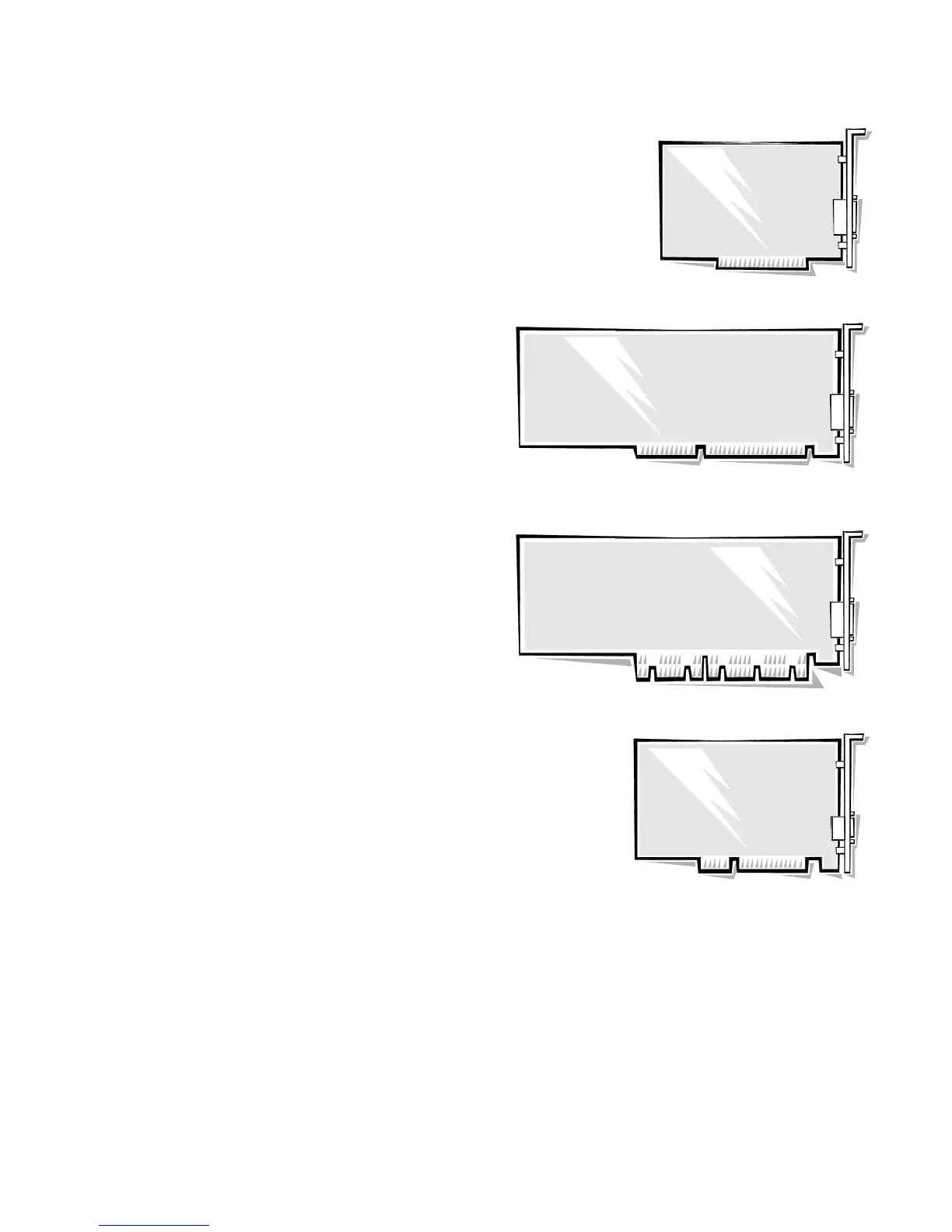

Figure 7-2. Expansion-Card Examples
8-bit ISA expansion card
16-bit ISA expansion card
32-bit EISA expansion card
32-bit PCI expansion card
