Disassembly and reassembly
9x
M3x6
1x
M4x6

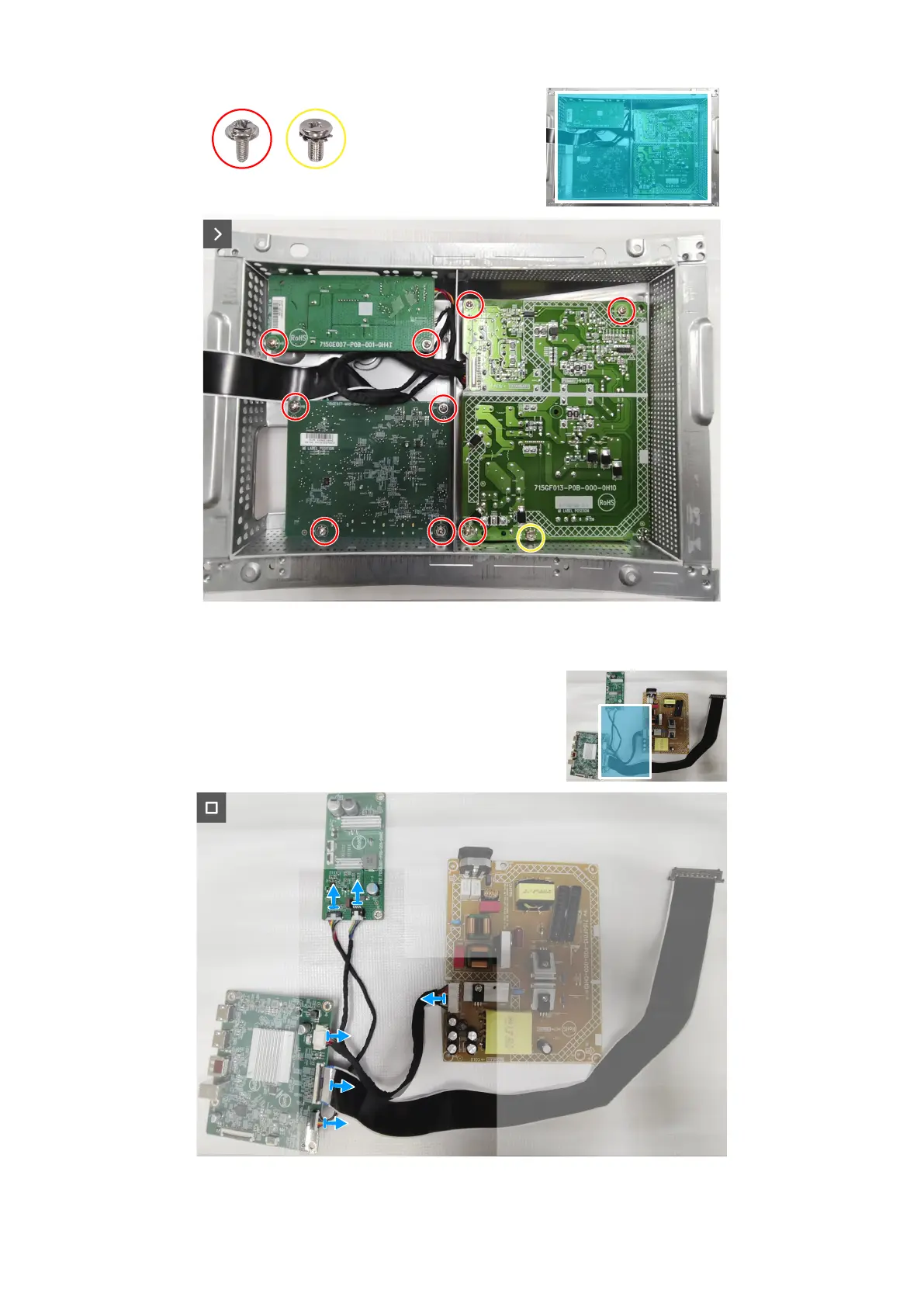

Figure 21. Removing the system board and power board
3. Disconnect the cables from the connectors on the system board, power board and converter board.
