Disassembly and reassembly

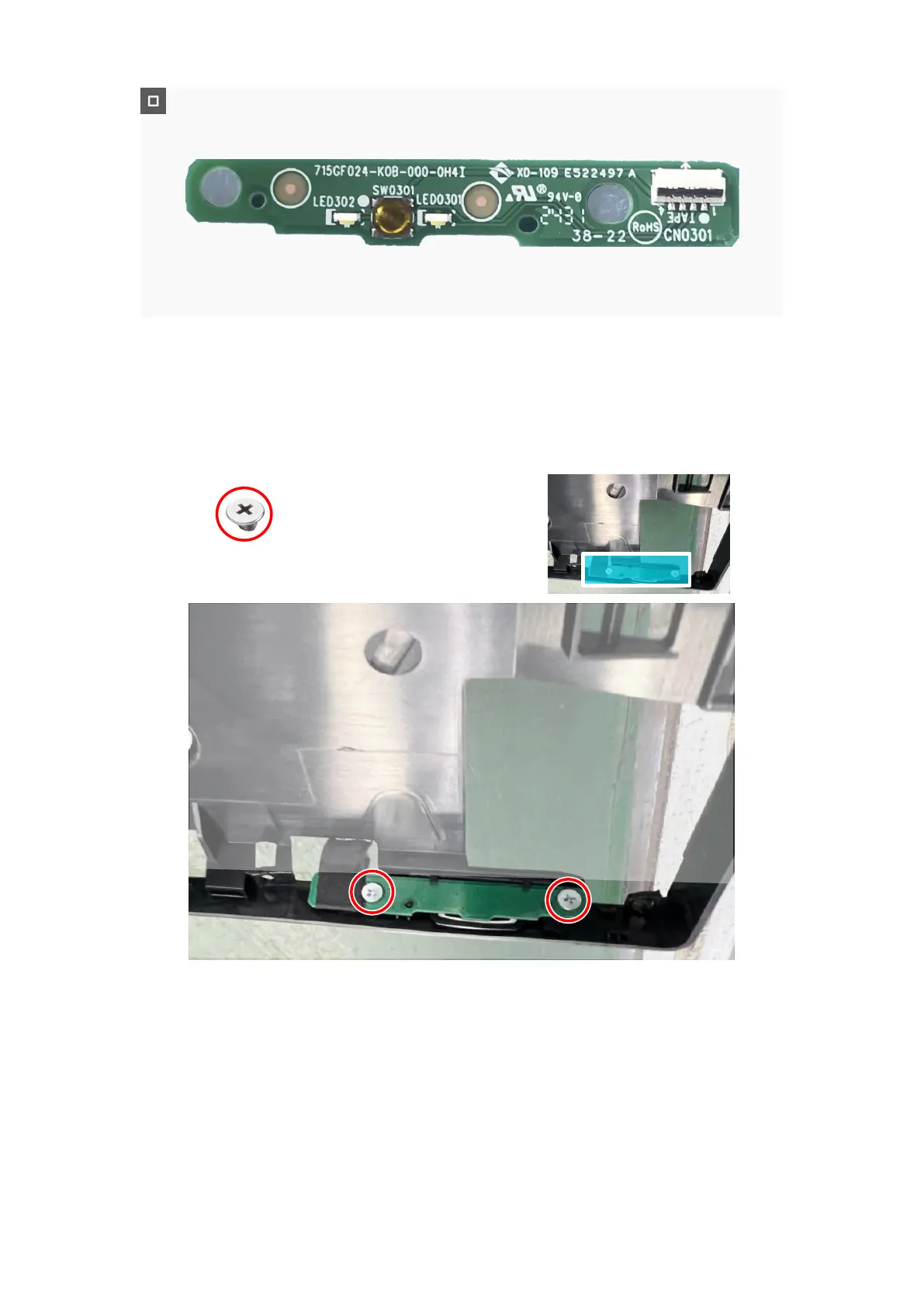

Figure 29. Removing the power-button board
Installing the power-button board
Steps
1. Align and place the power-button board in its slot on the middle frame.
2. Replace the two screws (Q2x2) to secure the power-button board to the middle frame.
2x
Q2x2
Figure 30. Installing the power-button board
Next steps
1. Install the middle frame.
2. Install the metal shield.
3. Install the back cover.
4. Install the stand.
5. Follow the procedure in After working inside your monitor.
