20
Disassembly and reassembly

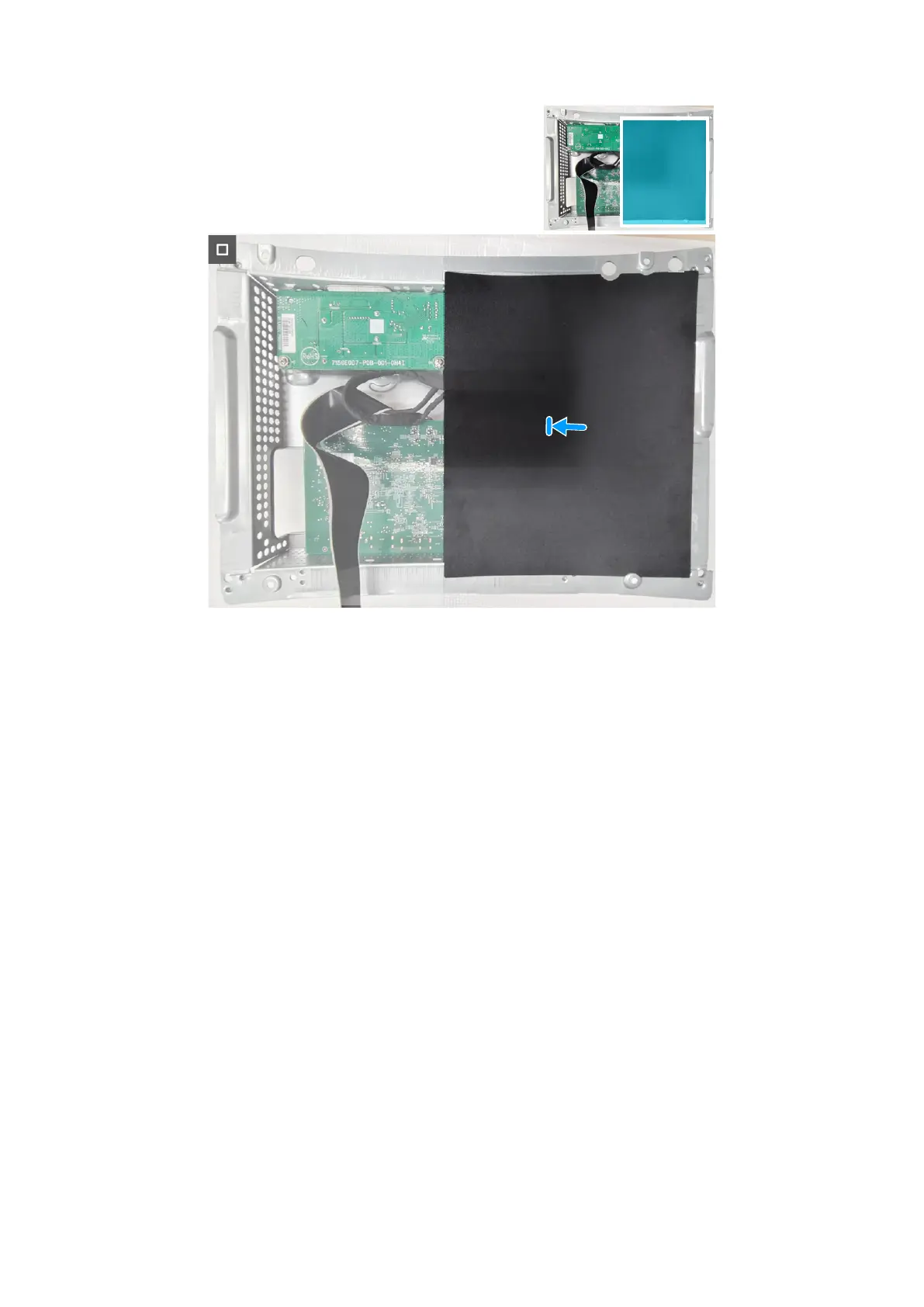

3. Place the Mylar sheet on the power board.
Figure 25. Installing the system board and power board
Next steps
1. Install the metal shield.
2. Install the back cover.
3. Install the stand.
4. Follow the procedure in After working inside your monitor.
Middle frame
Removing the middle frame
Prerequisites
1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the metal shield.
Steps
1. Remove the nine screws (M3X4) and the nine screws (Q2X3.2) that secure the middle frame to the display panel.
