Disassembly and reassembly
System board and power board
Removing the system board and power board
Prerequisites
1. Follow the procedure in Before working inside your monitor.
2. Remove the stand.
3. Remove the back cover.
4. Remove the metal shield.
Steps

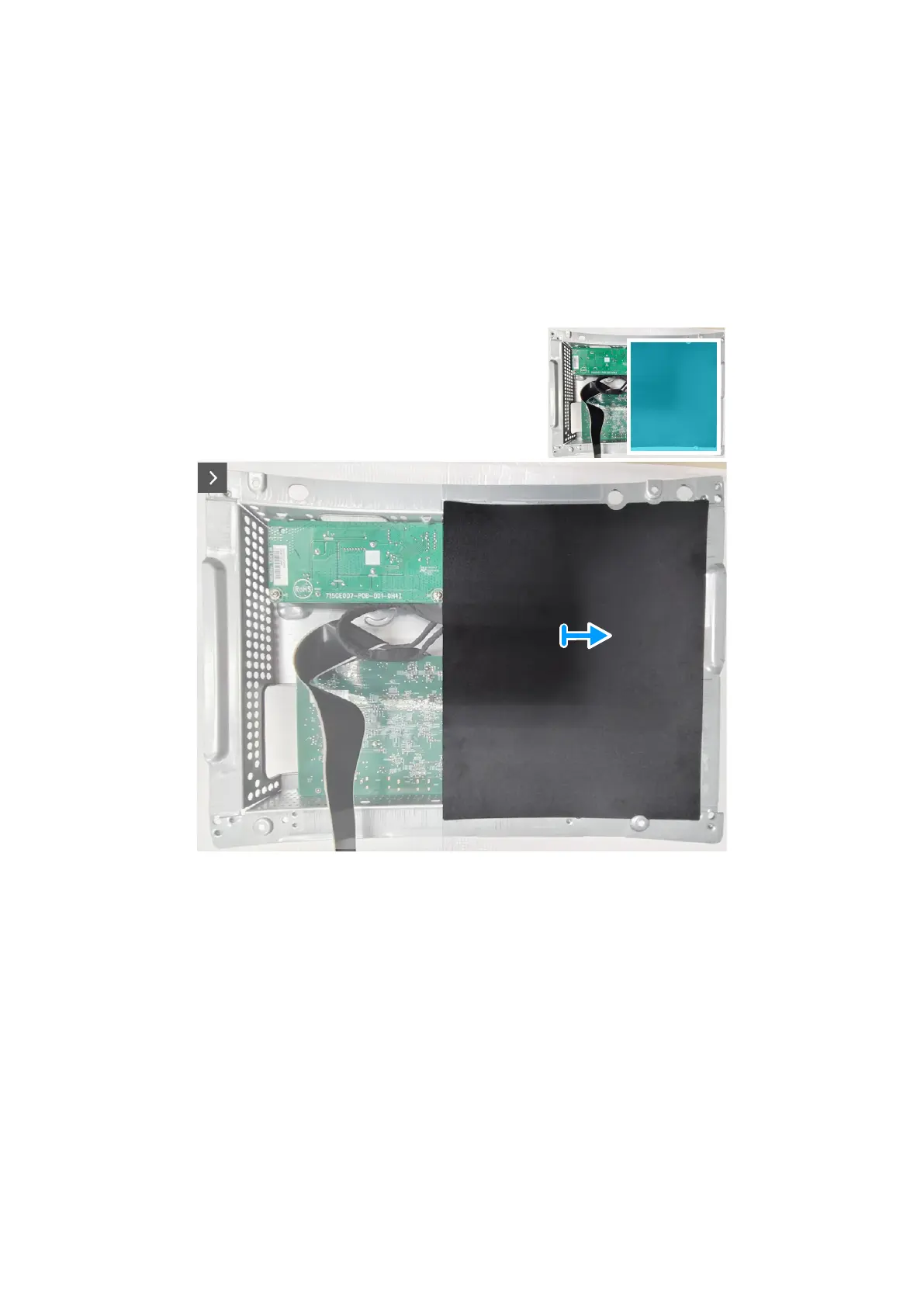

1. Remove the Mylar sheet from the power board.
Figure 20. Removing the system board and power board
2. Remove the nine screws (M3x6) and the screw (M4X6) that secures the system board, power board and converter board to the
metal shield.
