Dell Alienware 32 - Installing the Middle Frame

21
Disassembly and reassembly
9x
M3x4
9x
Q2x3.2

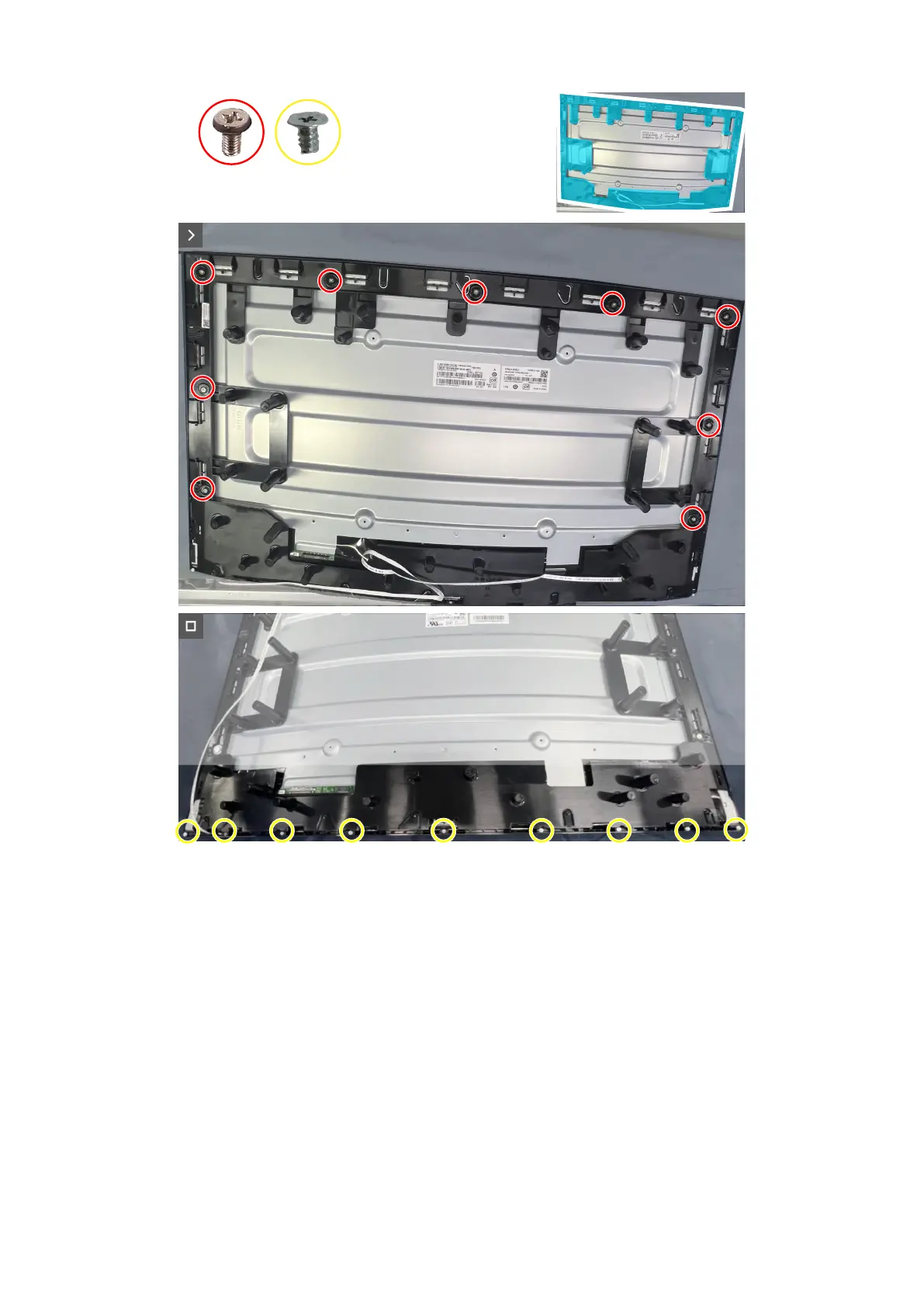

Figure 26. Removing the middle frame
2. Lift and remove the middle frame away from the display panel.
Installing the middle frame
Steps
1. Replace the nine screws (M3X4) and the nine screws (Q2X3.2) to secure the middle frame to the display panel.
