7. Remove the lighting board (see Removing the Lighting Board).
8. Remove the right-side middle panel (see Removing the Right-Side Middle Panel).
9. Slide and pull the right-side bottom panel away from the chassis.
Replacing the Right-Side Bottom Panel
1. Follow the instructions in Before You Begin.
2. Align the tabs on the right-side bottom panel with the slots on the chassis and slide the panel into position.
3. Replace the right-side middle panel (see Replacing the Right-Side Middle Panel).
4. Replace the lighting board (see Replacing the Lighting Board).
1

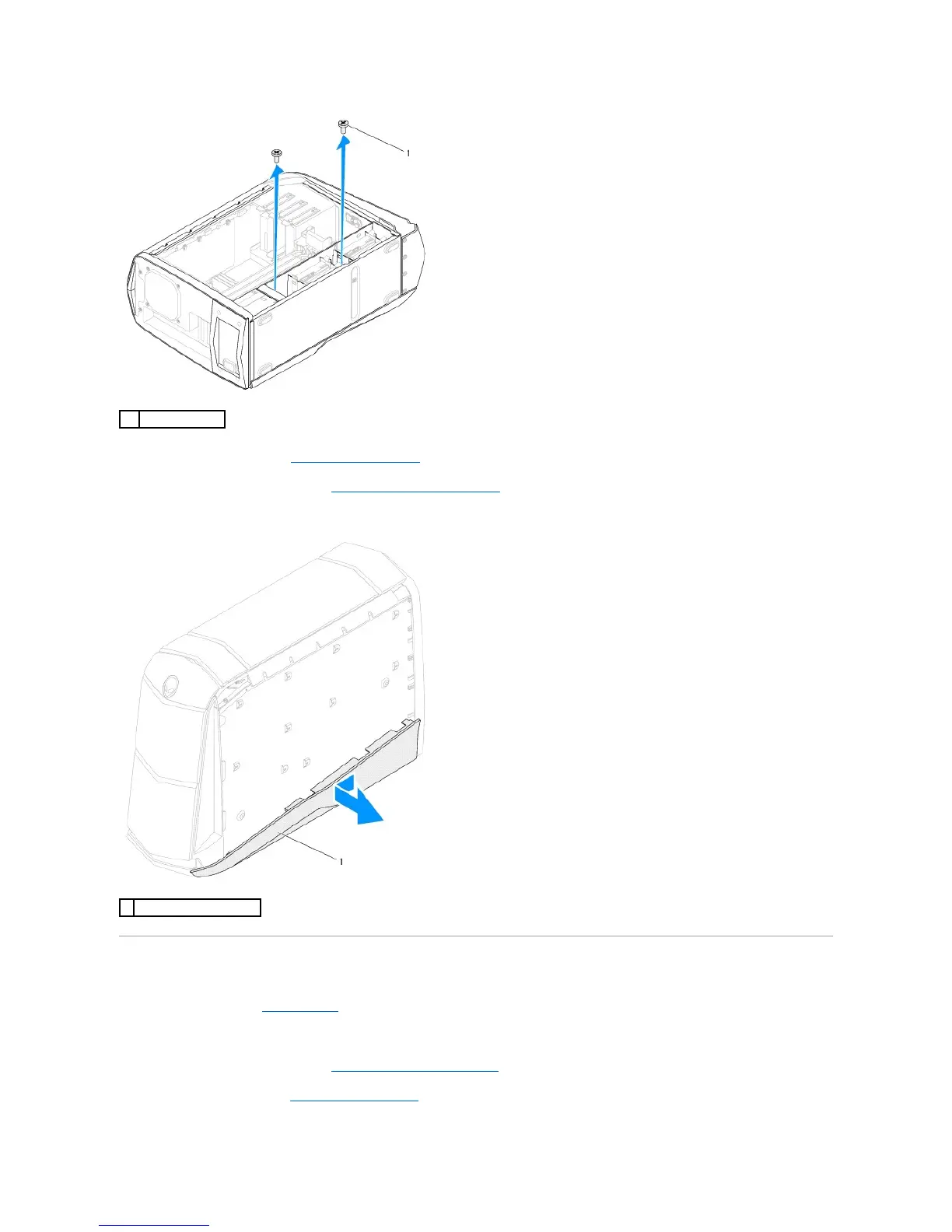

screws (2)
1
right-side bottom panel
