Dell Alienware Aurora R3 Service Manual

Back to Contents Page


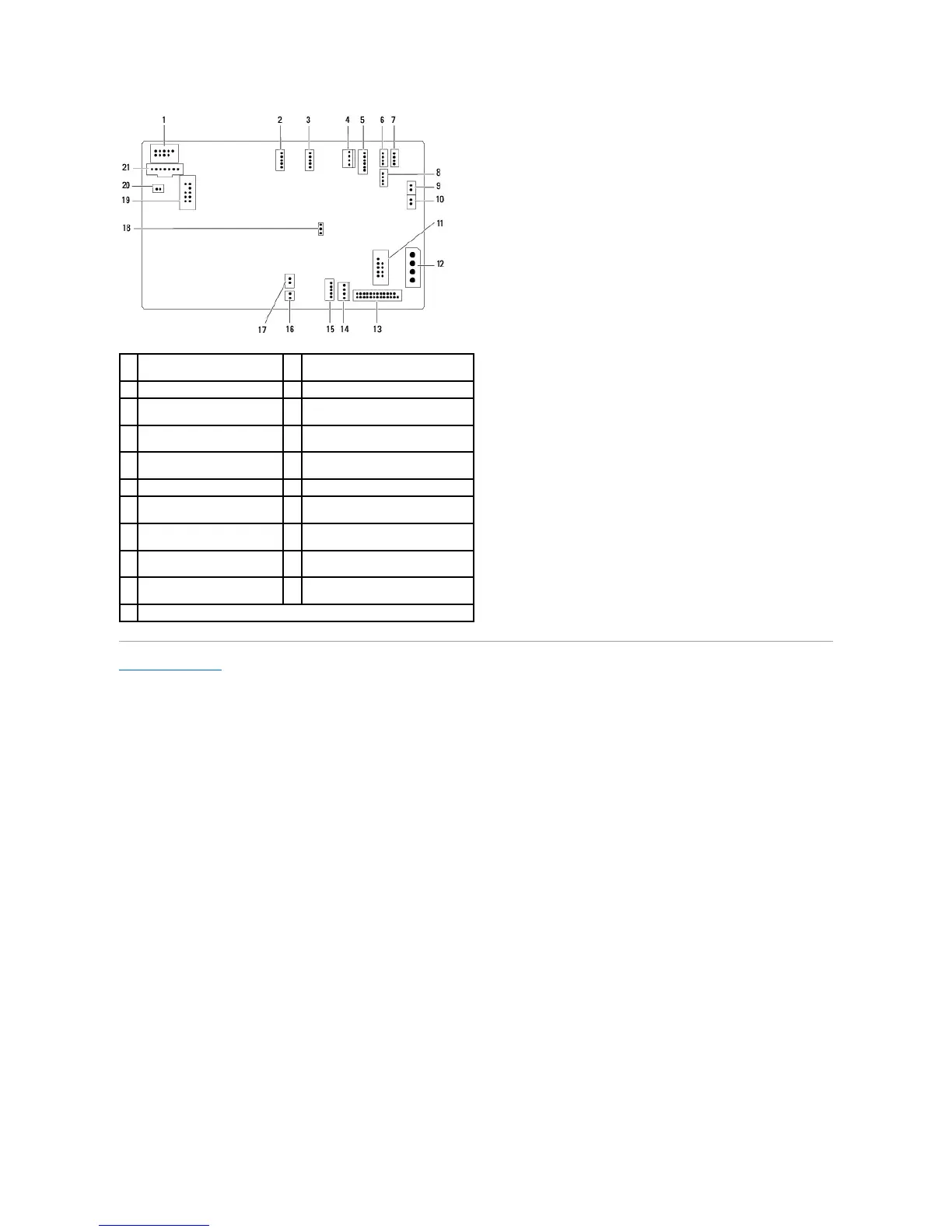

1
FlexBay connector (FLEXBAY)
2
drive-bay shroud battery connector
(FRONT_BEZEL)
3
AlienHead connector (HEAD1)
4
PCI-fan connector (FAN_PCI)
5
left side-panel contact board
connector (SIDE_L)
6
WiFi/Bluetooth connector
(BLUETOOTH)
7
power-LED board connector
(BLINK)
8
wireless connector (WIRELESS)
9
hard-drive LED connector
(HDD_LED1)
10
hard-drive LED connector
(HDD_LED2)
11
USB connector (MB_USB)
12
main-power connector (PWR1)
13
system-board lighting
(MB_MIO)
14
hard-drive fan connector (FAN_HDD)
15
right side-panel connector
(SIDE_R)
16
ODD sensors (ODD_SW)
17
ODD LED connector
(ODD_LED)
18
front-default connector
(FACTORY_DEFAULT)
19
Debug connector (DEBUG)
20
graphics-temperature sensor
connector (GFX_TEMP)
21
graphics-pump connector (GFX_PUMP)
