Dell Alienware m15 R4 User Manual

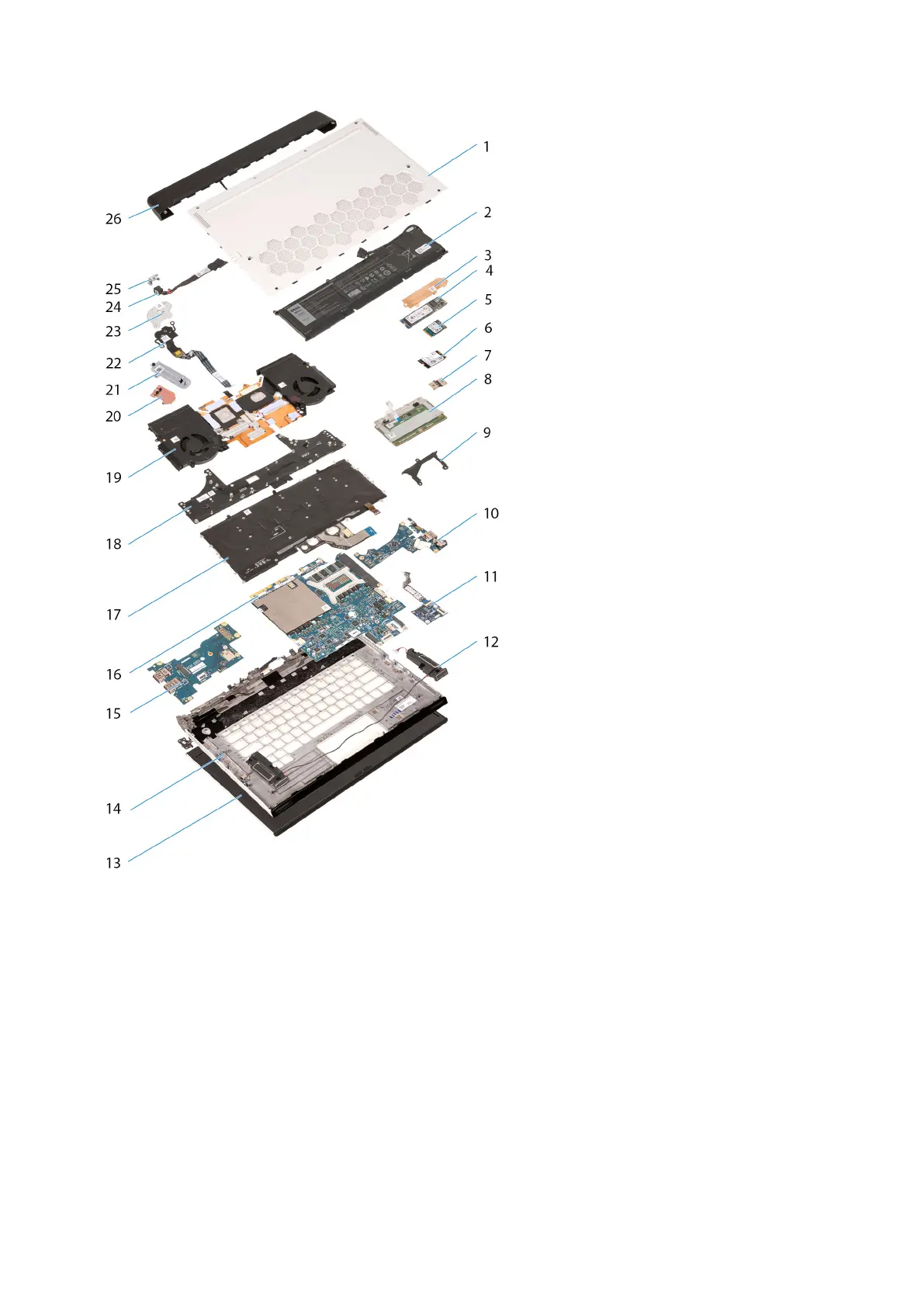

1. Base cover
2. Battery
3. M.2 2280 thermal shield (if applicable)
4. M.2 2280 solid-state drive (if applicable)
5. M.2 2230 solid-state drive (if applicable)
6. M.2 2280 solid-state drive/WWAN (if applicable)
7. Right I/O-board connector
8. Touchpad
9. M.2 mounting frame
10.Right I/O-board
11. Keyboard-controller board
12. Speakers
13. Display assembly
14. Palmrest
15.Left I/O-board
16.System board
11

Dell Alienware m15 R4 Specifications

General

Brand	Dell
Model	Alienware m15 R4
Category	Laptop
Language	English
