Dell Alienware m15 R4 User Manual

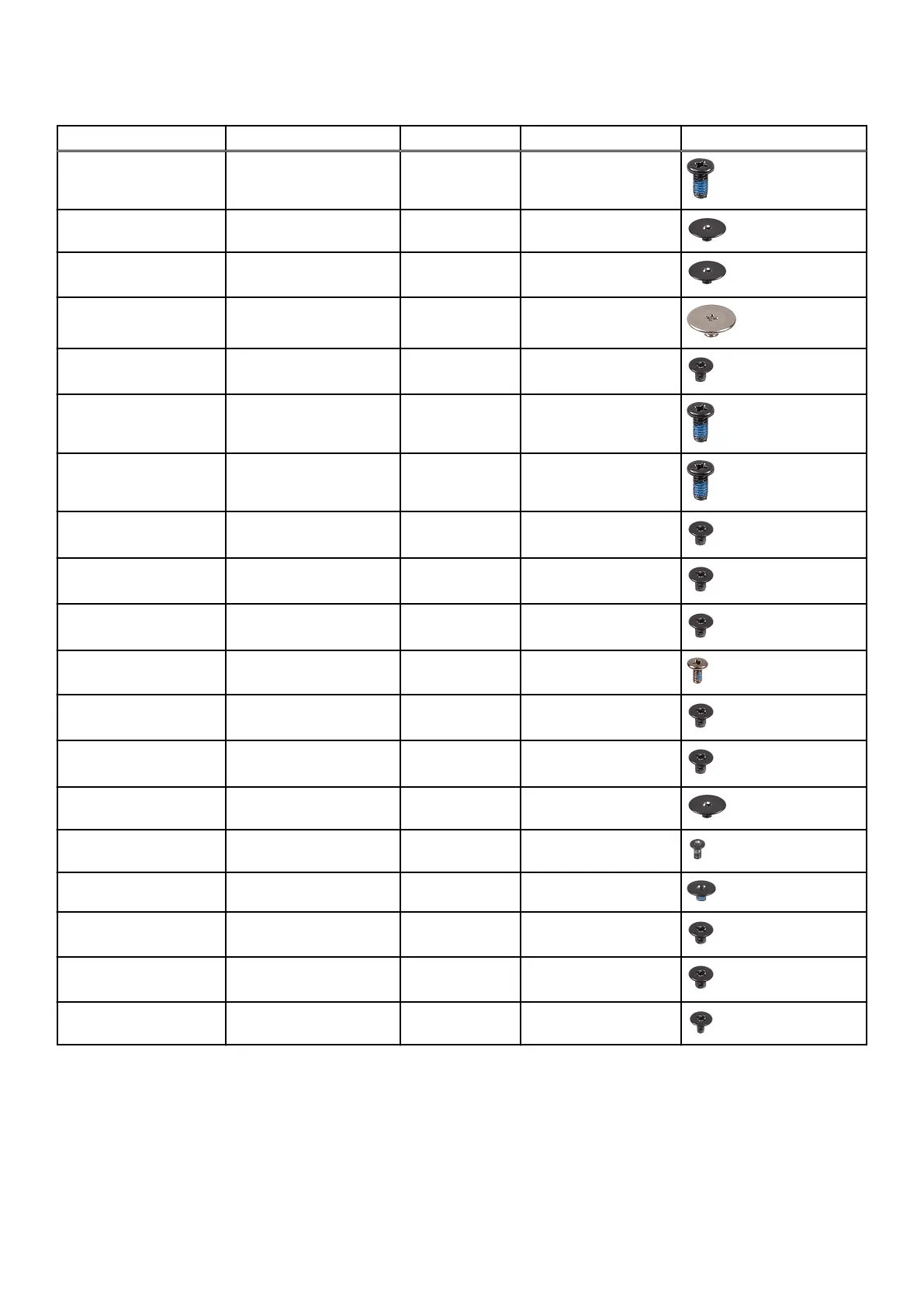

Table 1. Screw list (continued)
Component Secured to Screw type Quantity Screw image
Display assembly Palm-rest assembly M2.5x4 8
Touchpad Palm-rest assembly M2x1.9 4
Keyboard-controller
board
Palm-rest assembly M2x1.9 2
Right I/O-board cable
● System board
● Right I/O-board
M2x3 2
Right I/O-board Palm-rest assembly M2x3 2
M.2 solid-state drive
(SSD) frame
System board M2x4.5 3
Fan and heat-sink
assembly
Palm-rest assembly M2x4.5 2
Fan and heat-sink
assembly
Palm-rest assembly M2x3 3
System board Palm-rest assembly M2x3 5
Left I/O-board Palm-rest assembly M2x3 2
Left I/O-board System board M2x4.5 4
Fan and heat-sink
assembly
System board M2x3 10
Power-adapter port
bracket
Palm-rest assembly M2x3 2
Power-button assembly Palm-rest assembly M2x1.9 3
Keyboard bracket Keyboard M1.2x2.1 12
Keyboard Palmrest M1.2x1.6 19
Mechanical keyboard
bracket
Keyboard M2x2.5 11
Mechanical keyboard
bracket
Keyboard M2x2 2
Mechanical keyboard Palmrest M1.2x2 18
Major components of Alienware m15 R4
The following image shows the major components of Alienware m15 R4.
10

Dell Alienware m15 R4 Specifications

General

Brand	Dell
Model	Alienware m15 R4
Category	Laptop
Language	English
